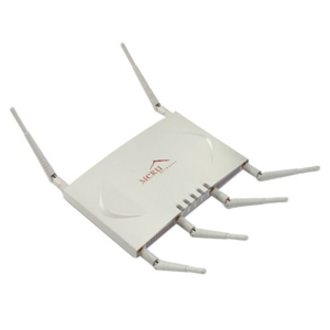

Meru AP311 Wireless Access Points

Part Number: AP311
Model: AP300 Series
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.40 GHz

Product Description:

  Meru AP311 IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Gigabit Ethernet - PoE Ports
Explore all Meru AP300 Series Wireless Access Points
Add to Quote
Meru AP311 Wireless Access Points
Meru AP311 Wireless Access Points
Meru AP311 Wireless Access Points Meru AP311 Wireless Access Points
Full specifications (PDF)

Meru AP300 Series Wireless Access Points Model Overview

With the Meru AP300 Series, enterprises and businesses can reap the benefits of 802.11n wireless technology now with 802.11n services option enabled as conditions permit for the ultimate in deployment flexibility. Ideally suited for bandwidth intensive applications, flexible scalability and high speed data transmissions, the AP300 Series allows enterprises and businesses to rely on their wireless networks for mission critical applications.
Meru AP311 Wireless Access Points Overview

The Meru AP300 Series Access Point is the industry's first 802.11n AP delivering high performance and full speed draft 2.0 802.11n while simultaneously supporting legacy 802.11a/b/g devices. As a key component of Meru's unique channel spanning architecture, the AP300 provides the maximum coverage for 802.11n without compromising performance or network capacity. This software upgradeable access point allows enterprises to reap the benefits of 802.11n wireless technology today, while providing flexible and simple deployment options.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.49 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
6
Antenna Gain:
  • 2.2 dBi
  • 3 dBi
Antenna Type:
Omnidirectional Antenna
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • 40/128-bit WEP
  • WPA
  • WPA2
  • AES
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE (RJ-45) Port:
Yes
Management & Protocols
Management:
  • SNMP
  • Telnet
  • CLI
  • HTTP
  • HTTPS
  • EzRF Management Suite
  • VLAN
  • QoS
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
1.1"
Depth:
6.9"
Weight (Approximate):
31 lb
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222631
