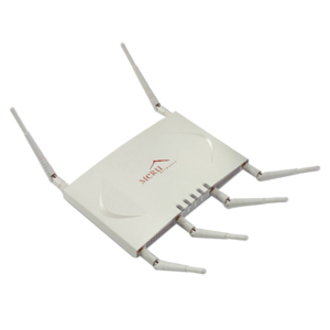

Meru AP302 Access Point

The Meru AP302 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Meru AP300 Series - Meru AP302 IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Gigabit Ethernet - PoE Ports
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • This wireless access point uses IEEE 802.11n technology with steadfast speed of up to 300 Mbit/s for optimal wireless signals
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • With PoE Port, transfer data and power from a single cable to places where a power outlet is not present
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Meru AP300 Series Access Point Model Overview
With the Meru AP300 Series, enterprises and businesses can reap the benefits of 802.11n wireless technology now with 802.11n services option enabled as conditions permit for the ultimate in deployment flexibility. Ideally suited for bandwidth intensive applications, flexible scalability and high speed data transmissions, the AP300 Series allows enterprises and businesses to rely on their wireless networks for mission critical applications.
Meru AP302 Access Point Overview

The Meru AP300 Series Access Point is the industry's first 802.11n AP delivering high performance and full speed draft 2.0 802.11n while simultaneously supporting legacy 802.11a/b/g devices. As a key component of Meru's unique channel spanning architecture, the AP300 provides the maximum coverage for 802.11n without compromising performance or network capacity. This software upgradeable access point allows enterprises to reap the benefits of 802.11n wireless technology today, while providing flexible and simple deployment options.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.49 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
6
Antenna Gain:
  • 2.2 dBi
  • 3 dBi
Antenna Type:
Omnidirectional Antenna
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • 40/128-bit WEP
  • WPA
  • WPA2
  • AES
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE (RJ-45) Port:
Yes
Management Port:
Yes
Management & Protocols
Management:
  • SNMP
  • Telnet
  • CLI
  • HTTP
  • HTTPS
  • EzRF Management Suite
  • VLAN
  • QoS
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
1.1"
Depth:
6.9"
Weight (Approximate):
31 lb
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Meru AP302 Access Point is also known as MER-AP302
