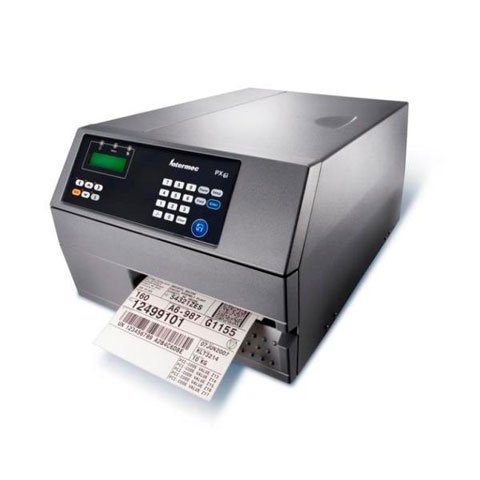

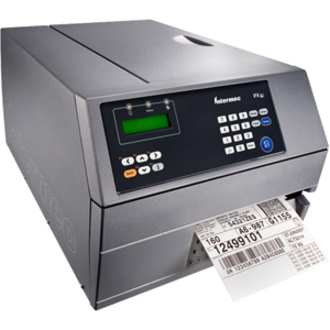

Intermec PX6C020000000020 Barcode Label Printer

Intermec EasyCoder PX6i - Thermal transfer, Universal Firmware, 16M/32M, 802.11b/g, 203 dpi
Flexible connectivity enables use of up to seven wired and wireless interfaces simultaneously!

The EasyCoder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The EasyCoder PX6i features a maximum print width of 6 inches and either 203 or 300 dpi resolution printheads. The open, modular design ensures the printer is easy to adapt, maintain and service. The EasyCoder PX6i printer prints instantly from first to last label at up to 12 ips-ideal for on demand and compliance labeling applications with variable data requiring immediate results. The combination of powerful, individually controlled micro-step motors, generously dimensioned power supply and new sophisticated thermal management printhead ensures high-quality labels each and every time. Includes Intermec LabelShop START barcode label design software.

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: PX
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PX6i
  • Product Name: EasyCoder PX6i Thermal Label Printer
  • Product Line: EasyCoder

Technical Information

  • Maximum Mono Print Speed: 9 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.59"
  • Recommended Use: Label Print

Physical Characteristics

  • Height: 9.4"
  • Width: 13.2"
  • Depth: 19"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 6.69"
  • Media Type:
    • Thermal Transfer Label
    • Ticket
    • Tag
    • Roll Fed
    • Fanfold
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Label Taken Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.38"

Fonts & Emulation

  • Language Emulation:
    • IPL
    • Fingerprint
    • ZPL
    • DPL
    • XML

Network & Communication

  • Ethernet: Yes
  • Wireless LAN: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 32 MB
  • Memory Technology: SDRAM
  • Flash Memory: 16 MB

Warranty

  • Limited Warranty: 1 Year

Other

  • Platform Supported: PC

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model EasyCoder PX6i
Print Speed 9
Maximum Print Width 6.59
Label Core 3 inches, 1.5 inches
Print Method Thermal Transfer
Interface Options Ethernet, Wireless, Serial
Max Label Width 6.69
Printer Type Industrial
Max Roll Outer Diameter 8.38
Print Resolution 203 dpi
Printer Mobility Not Mobile
Ribbon Core 1
