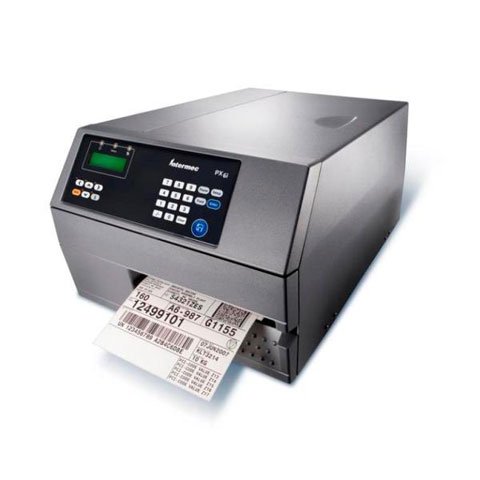

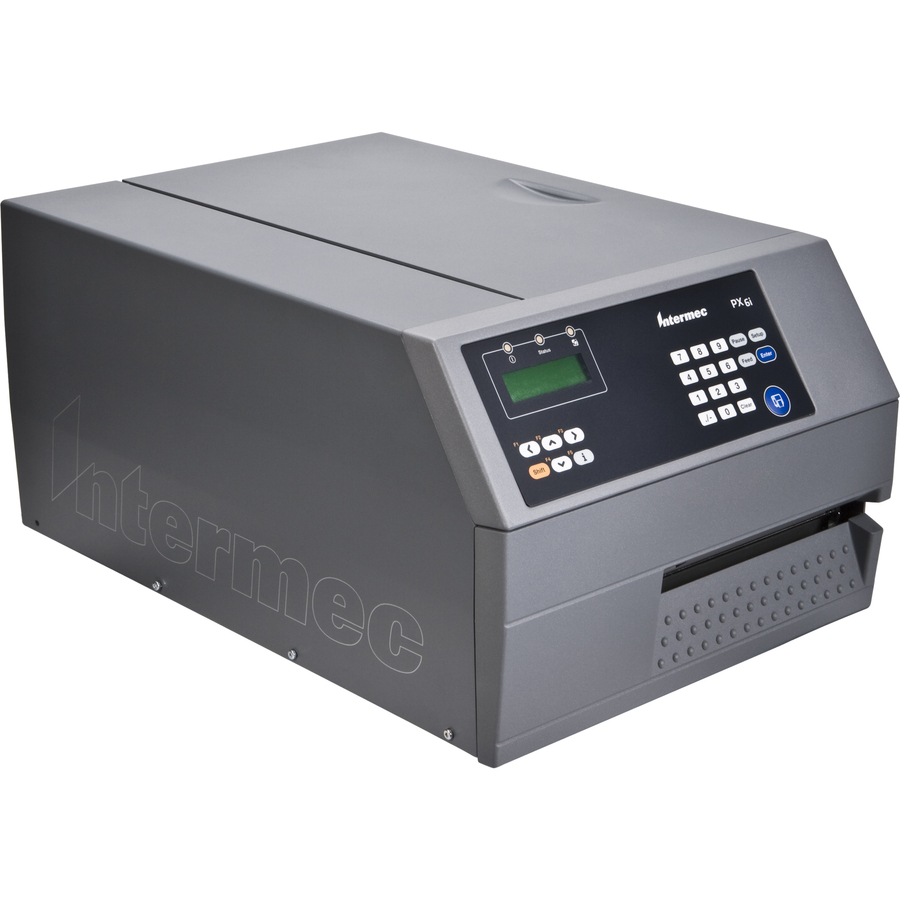

Intermec EasyCoder PX6i – Barcode Label Printer – 300 dpi – Cutter

Part Number: PX6C010000003020
Model: EasyCoder PX6i
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
300 dpi
Printer Options
Cutter

Product Description:

  Thermal Transfer Printer, Ethernet Interface, 32Mb Dram, 16Mb Flash, Rotating Unwind, Cutter, 203Dpi
Explore all Intermec EasyCoder PX6i Barcode Label Printers
Add to Quote
Intermec PX6C010000003020 Barcode Label Printer
Intermec PX6C010000003020 Barcode Label Printer
Intermec PX6C010000003020 Barcode Label Printer Intermec PX6C010000003020 Barcode Label Printer
Full specifications (PDF)

Intermec EasyCoder PX6i Barcode Label Printer Model Overview

The EasyCoder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The EasyCoder PX6i features a maximum print width of 6 inches and either 203 or 300-dpi resolution printheads. The open, modular design ensures the printer is easy to adapt, maintain and service. The EasyCoder PX6i printer prints instantly from first to last label at up to 12 inches per second-ideal for on demand and compliance labeling applications with variable data requiring immediate results. The combination of powerful, individually controlled micro-step motors, generously dimensioned power supply and new sophisticated thermal management printhead ensures high-quality labels each and every time. Includes Intermec LabelShop START barcode label design software.
Intermec PX6C010000003020 Barcode Label Printer Overview
Smart, strong and secure, the PX6i delivers outstanding performance for round-the-clock mission-critical applications. Its multiple interface options, secure wireless connectivity (WPA2), CCX and WiFi certification, and support for IPv6 ensure easy integration and long-term scalability. Stand-alone Smart Printing eliminates PC costs and complexity, and enables quick ROI.
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
9 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.59"
Barcode Symbology Supported:
  • LOGMARS
  • HIBC
  • POSTNET
  • ISBT-128
  • UPC/EAN Shipping Container
  • UCC/EAN 128 Serial Shipping Container
  • GM1724
Application/Usage:
Desktop
Print Technology:
Direct Thermal
Memory
Standard Memory:
32 MB
Memory Technology:
SDRAM
Flash Memory:
16 MB
Memory Card Slot:
Yes
Memory Card Supported:
CompactFlash
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Direct Thermal Label
  • Thermal Transfer Label
  • Ticket
  • Tag
  • Label
  • Gap
  • Notch
  • Black Mark
  • Continuous Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8.38"
Maximum Label Width:
6.69"
Label Core Size:
3"
Fonts & Emulation
Language Emulation:
  • DPL
  • Fingerprint
  • IPL
  • XML
  • ZPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
400 W
Sleep-Mode Power Consumption:
20 W
Physical Characteristics
Height:
9.4"
Width:
13.2"
Depth:
19"
Weight (Approximate):
32.60 lb
Miscellaneous
Platform Supported:
PC
Certifications & Standards:
  • IPv4
  • IPv6
  • CE (EN55022 Class A)
  • FCC Class A
  • UL/cUL
  • C-Tick
  • PFC: IEC 61000-3-2
Item Numbers
GTIN: 0735548763857
UPC: 735548763857
EAN: 0735548763857
UNSPSC: 45101512
