Flexible connectivity enables use of up to seven wired and wireless interfaces simultaneously!

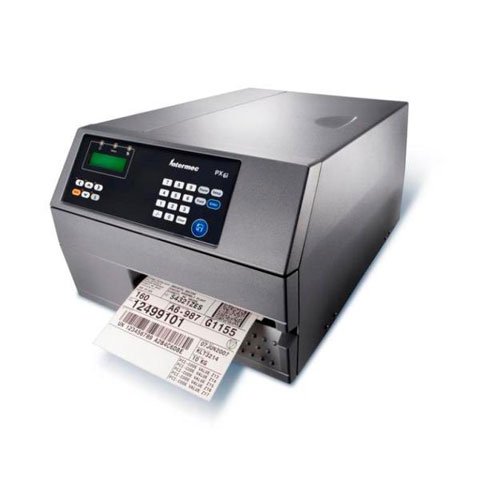

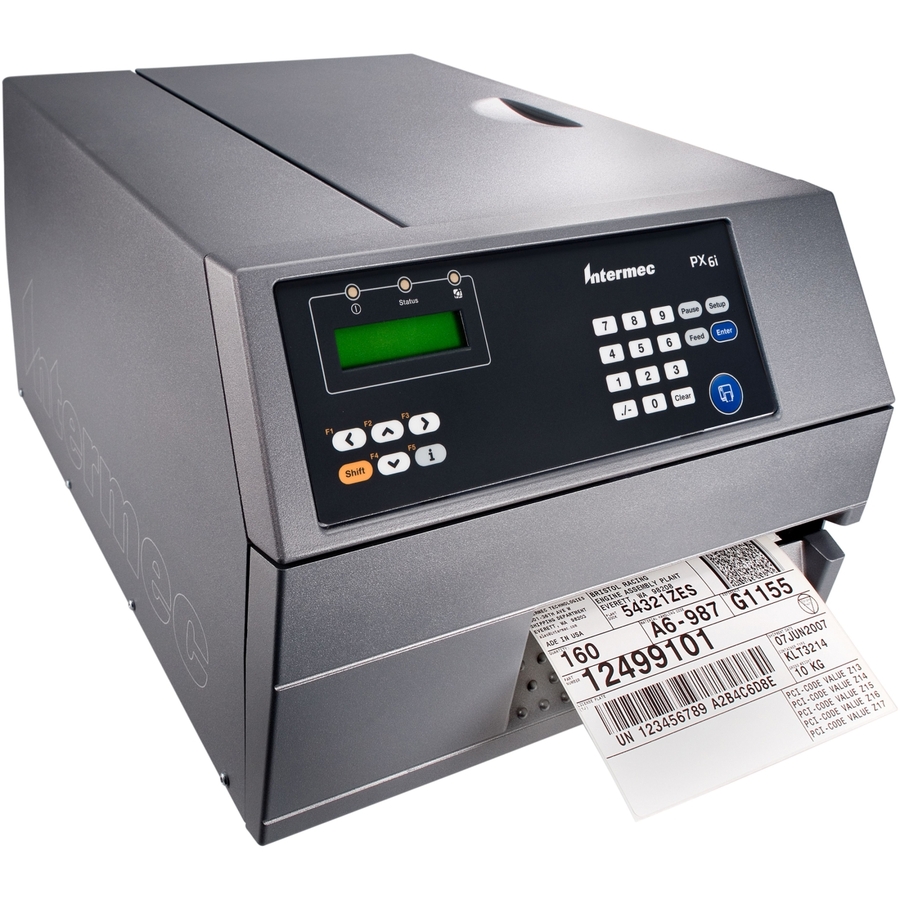

The EasyCoder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The EasyCoder PX6i features a maximum print width of 6 inches and either 203 or 300 dpi resolution printheads. The open, modular design ensures the printer is easy to adapt, maintain and service. The EasyCoder PX6i printer prints instantly from first to last label at up to 12 ips-ideal for on demand and compliance labeling applications with variable data requiring immediate results. The combination of powerful, individually controlled micro-step motors, generously dimensioned power supply and new sophisticated thermal management printhead ensures high-quality labels each and every time. Includes Intermec LabelShop START barcode label design software.
General Information
- Product Type: Thermal Transfer Printer
- Product Series: PX
- Brand Name: Intermec
- Manufacturer: Intermec Technologies Corporation
- Product Model: PX6i
- Product Name: EasyCoder PX6i Thermal Label Printer
- Product Line: EasyCoder
Technical Information
- Maximum Mono Print Speed: 9 in/s
- Maximum Print Resolution: 300 dpi
- Print Color: Monochrome
- Maximum Print Width: 6.59"
- Recommended Use: Label Print
Physical Characteristics
- Height: 9.4"
- Width: 13.2"
- Depth: 19"
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Media Types & Handling
- Maximum Label Width: 6.69"
- Media Type:
- Roll Fed
- Fanfold
- Thermal Transfer Label
- Label
- Ticket
- Tag
- Media Thickness: 10 mil
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8.38"
Other
- Platform Supported: PC
- Additional Information:
- Strong, all-metal construction and superior throughput for 24x7 printing in harsh industrial environments
- Ideal for high volume and compliance applications
- Modular design facilitates integration into automated labeling applications
- All-in-one, user-selectable printer languages
- All major 1D and 2D symbologies are supported
Fonts & Emulation
- Language Emulation:
- IPL
- Fingerprint
- ZPL
- DPL
- XML
Memory
- Standard Memory: 32 MB
- Memory Technology: SDRAM
- Flash Memory: 16 MB
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Full specifications (PDF)
Full specifications (PDF)
| Brand |
Intermec |
| Model |
EasyCoder PX6i |
|
Interface Options
|
Serial, Ethernet |
|
Maximum Print Width
|
6.59 |
|
Print Speed
|
9 |
|
Max Label Width
|
6.69 |
|
Print Method
|
Thermal Transfer |
|
Print Resolution
|
305 dpi, 300 dpi |
|
Max Roll Outer Diameter
|
8.38 |
|
Printer Type
|
Industrial |
|
Label Core
|
1.5 inches, 3 inches |
|
Printer Mobility
|
Not Mobile |
|
Ribbon Core
|
1 |
