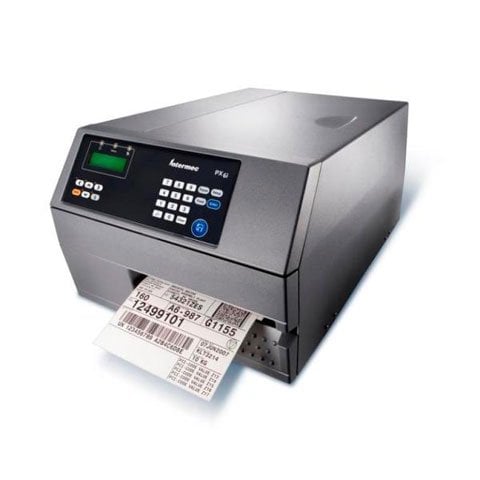

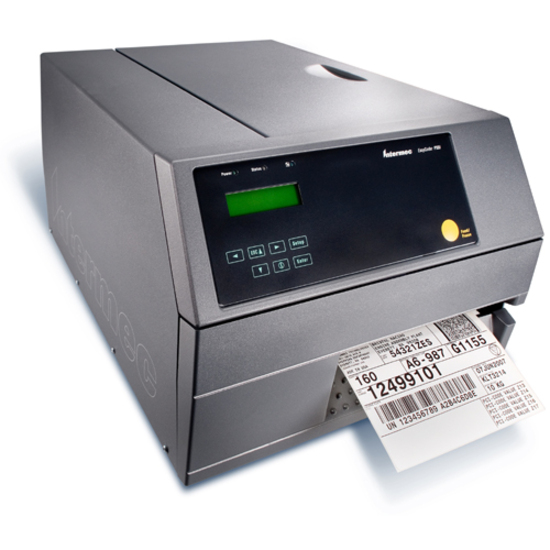

Intermec EasyCoder PX6i – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: PX6B910000301020
Model: EasyCoder PX6i
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
203 dpi

Product Description:

  PRTR:PX6I,IPL,ETHERNET,16M/4M SELF-STRIP,TT 203DPI
Explore all Intermec EasyCoder PX6i Barcode Label Printers
Add to Quote
Intermec PX6B910000301020 Barcode Label Printer
Intermec PX6B910000301020 Barcode Label Printer
Intermec PX6B910000301020 Barcode Label Printer Intermec PX6B910000301020 Barcode Label Printer
Full specifications (PDF)

Intermec EasyCoder PX6i Barcode Label Printer Model Overview

The EasyCoder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The EasyCoder PX6i features a maximum print width of 6 inches and either 203 or 300-dpi resolution printheads. The open, modular design ensures the printer is easy to adapt, maintain and service. The EasyCoder PX6i printer prints instantly from first to last label at up to 12 inches per second-ideal for on demand and compliance labeling applications with variable data requiring immediate results. The combination of powerful, individually controlled micro-step motors, generously dimensioned power supply and new sophisticated thermal management printhead ensures high-quality labels each and every time. Includes Intermec LabelShop START barcode label design software.
Intermec PX6B910000301020 Barcode Label Printer Overview

The EasyCoder PX6i printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
9 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
6.59"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • MSI PLESSEY
  • Code 128
  • Code 128-A
  • Code 128-C
  • DUN-14/16
  • UPC/EAN
  • EAN 128
  • EAN-128 Subset A
  • EAN-128 Subset C
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Interleaved 2 of 5 A
  • Matrix 25
  • Planet Code
  • POSTNET
  • Straight 2 of 5
  • UCC 128
  • QR Code
  • HIBC Code 39
  • EAN.UCC Composite
  • JIS-ITF
  • Code 16K
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Die-cut Label
  • Continuous Label
  • Fanfold
  • Tag
  • Ticket
Media Size:
Custom Size
Media Sensor:
Label Taken Sensor
Media Thickness:
9.84 mil
Maximum Roll Diameter:
8.38"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
IPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
9.4"
Width:
13.2"
Depth:
19"
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • EasyCoder PX6i Label Printer
  • US Power Cord
  • User & Installation manuals
  • Printer Companion CD
  • Cleaning Card
  • Product registration card
  • Declaration of Conformity
Cables Included:
AC
Additional Information:
  • Label Taken Sensor (LTS)
  • Graphics: Supports PCX file format
  • Wand interface for EasySet System
  • Integral Self-Strip Unit with Liner Take-up
  • Display: Back-lit LCD for 2 x16 characters & 3 LED indicator lamps
Platform Supported:
PC
Certifications & Standards:
  • CE
  • FCC
  • UL
  • CSA
  • C-Tick
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
