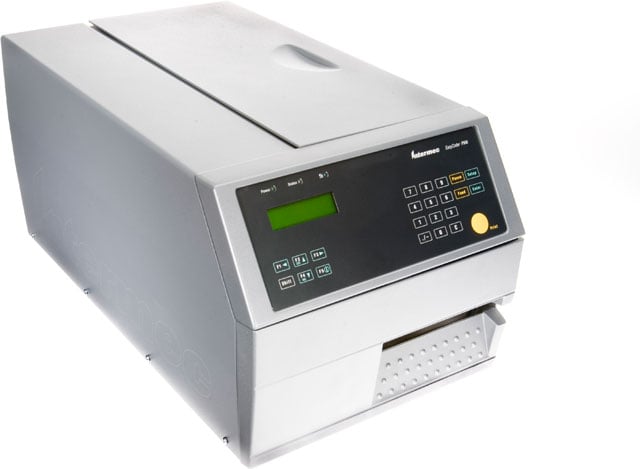

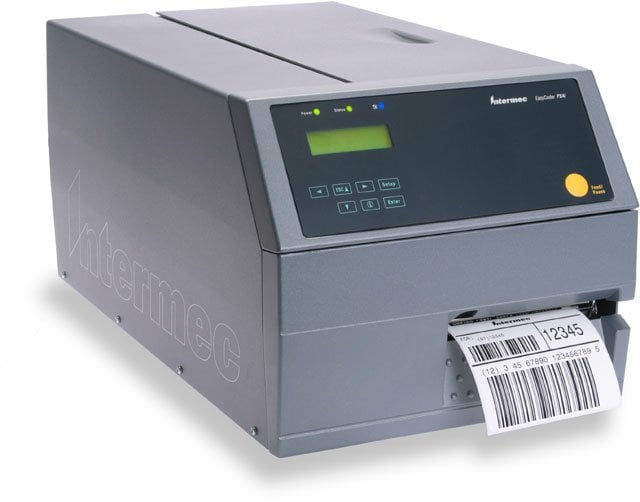

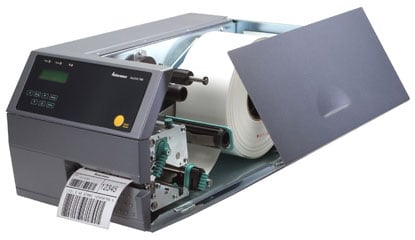

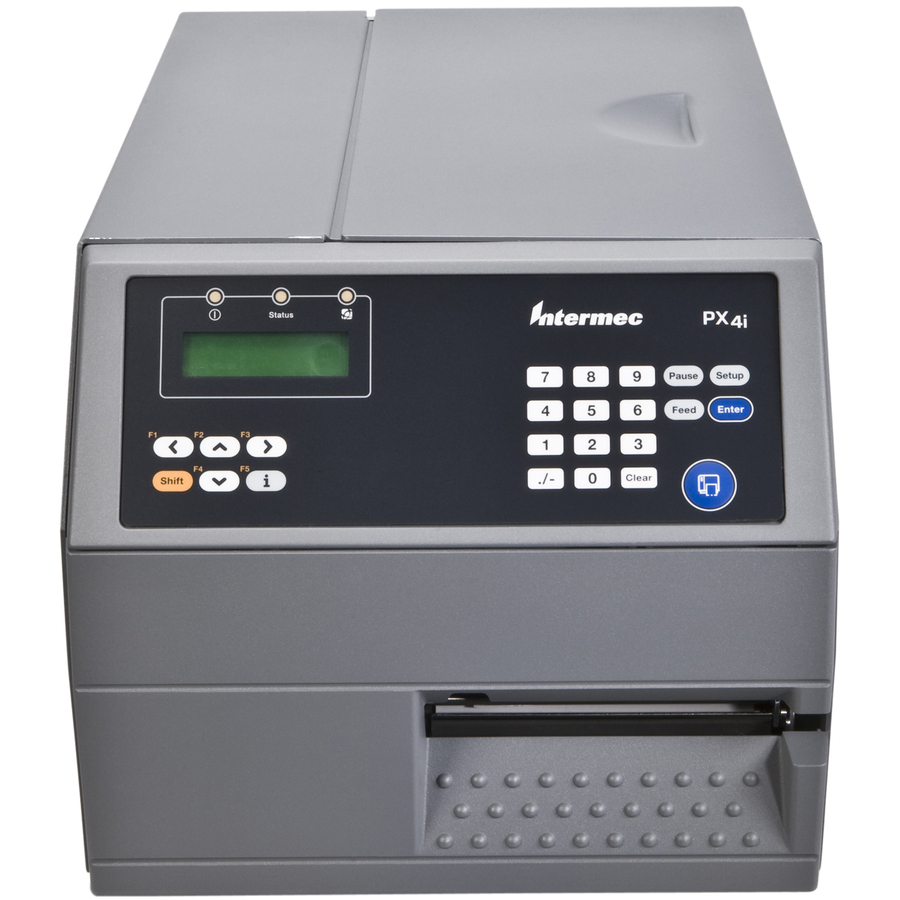

Intermec EasyCoder PX4i – Barcode Label Printer – 400 dpi – Thermal Transfer

Part Number: PX4C011000005040

Model: EasyCoder PX4i

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet, Serial (RS-232)

Print Resolution

400 dpi

Product Description:

Industrial barcode printer, Intermec PX4i, thermal transfer, 400 dpi, 4.3" print width, 10" per second print speed, USB/Serial/Ethernet. Includes label taken sensor and US power cord.

Explore all Intermec EasyCoder PX4i Barcode Label Printers

Add to Quote

Intermec PX4C011000005040 Barcode Label Printer

Overview

Full specifications (PDF)

Intermec EasyCoder PX4i Barcode Label Printer Model Overview

Designed for easy integration into manufacturing environments, the EasyCoder PX4i printer can be mounted in virtually any position. The versatile form factor facilitates the addition of add-ons such as an automatic label applicator. Up to seven wired and wireless connectivity interfaces can be used simultaneously eliminating connectivity restrictions and supporting additional devices. The EasyCoder PX4i printer can operate as stand alone devices executing user-defined programs thereby eliminating the need for a PC. The EasyCoder PX4i can operate production line machinery including scanners, scales and other printers and conveyors as well as access information directly from the network host, is fully programmable and is able to change with the application as needed. Ships with full-featured version of LabelShop START label design software.

Intermec PX4C011000005040 Barcode Label Printer Overview

A member of the smartest bar code printer family on the market, the PX4i is flexible and programmable, enabling customers to optimize their printing operations, streamline deployment, and achieve quick return on investment. Built to meet the needs of round the clock, mission critical applications, the rugged PX4i delivers advanced connectivity and network protocols, ensuring peace of mind today and a reliable, scalable solution for the long haul. The PX4i High Performance Printer is part of Intermec's complete line of smart, strong and secure industrial printers.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

9.84 in/s

Maximum Print Resolution (dpi):

406

Maximum Print Width:

4.33"

Barcode Symbology Supported:

UCC/EAN 128
LOGMARS
POSTNET
HIBCC
ISBT-128
UPC/EAN Shipping Container
UCC/EAN 128 Serial Shipping Container
GM1724

Application/Usage:

Desktop

Print Technology:

Thermal Transfer

Memory

Standard Memory:

32 MB

Memory Technology:

SDRAM

Flash Memory:

16 MB

Memory Card Slot:

Yes

Memory Card Supported:

CompactFlash

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Fanfold
Roll Fed
Label
Thermal Transfer Label
Black Mark

Media Sensor:

Label Taken Sensor
Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

10 mil

Maximum Roll Diameter:

8.38"

Maximum Label Width:

4.72"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

IPL
Fingerprint
ZPL
DPL
XML

Power Description

Power Source:

AC Supply

Input Voltage:

110 V AC
220 V AC

Maximum Power Consumption:

400 W

Operating Power Consumption:

125 W

Standby Power Consumption:

20 W

Physical Characteristics

Height:

9.4"

Width:

10.8"

Depth:

19"

Weight (Approximate):

28.33 lb

Miscellaneous

Platform Supported:

Certifications & Standards:

EC 61000-3-2
CE (EN55022 Class A)
FCC Class A
UL/cUL
C-Tick

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0735548763796

UPC: 735548763796

EAN: 0735548763796

UNSPSC: 43212108
