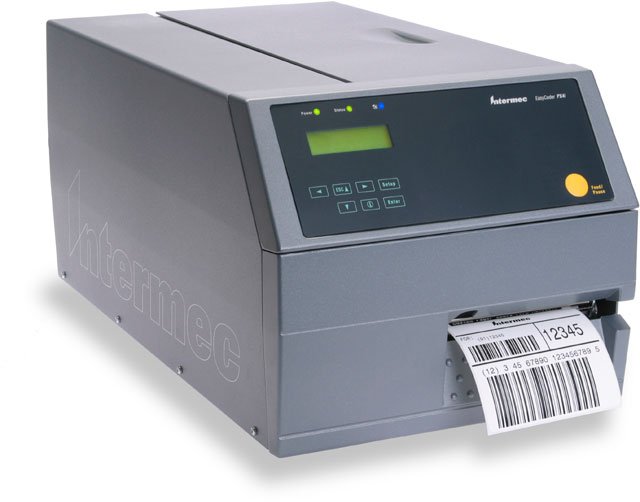

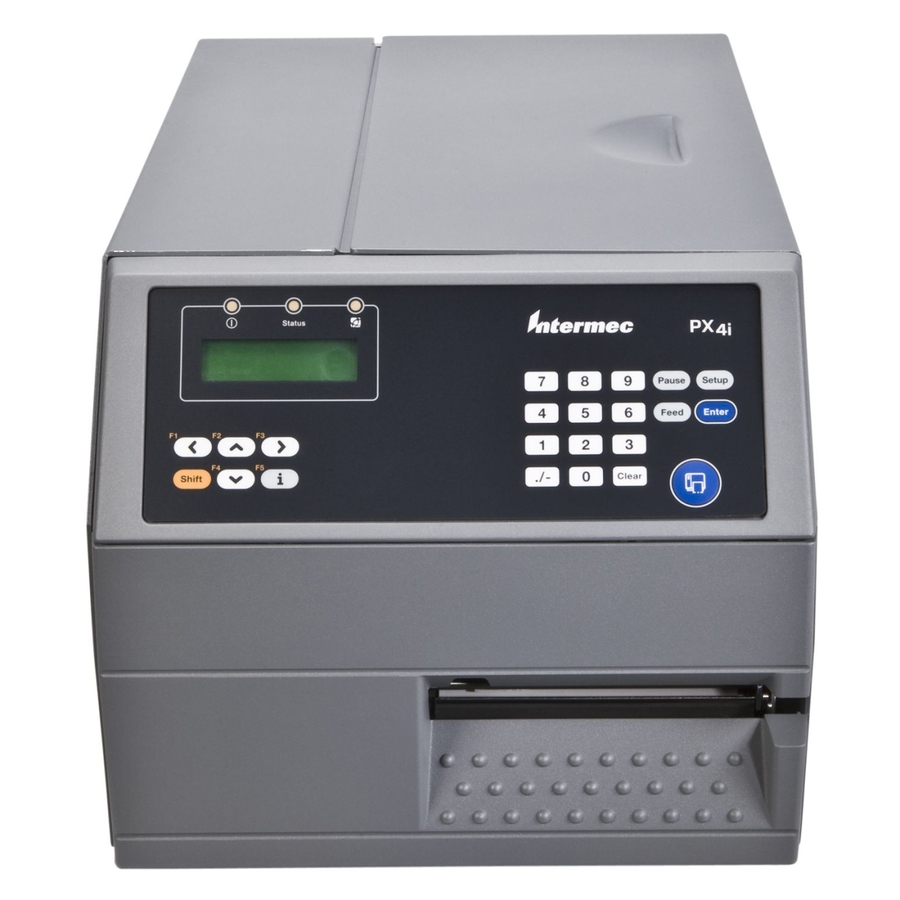

Intermec EasyCoder PX4i – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: PX4C010000000020
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  DT/TTR, Universal Firmware, 16M/32M, 203 dpi

Honeywell EasyCoder PX4i Barcode Label Printer Model Overview

Designed for easy integration into manufacturing environments, the EasyCoder PX4i printer can be mounted in virtually any position. The versatile form factor facilitates the addition of add-ons such as an automatic label applicator. Up to seven wired and wireless connectivity interfaces can be used simultaneously eliminating connectivity restrictions and supporting additional devices. The EasyCoder PX4i printer can operate as stand alone devices executing user-defined programs thereby eliminating the need for a PC. The EasyCoder PX4i can operate production line machinery including scanners, scales and other printers and conveyors as well as access information directly from the network host, is fully programmable and is able to change with the application as needed. Ships with full-featured version of LabelShop START label design software.
Intermec PX4C010000000020 Barcode Label Printer Overview

A member of the smartest bar code printer family on the market, the EasyCoder PX4i Thermal Label Printer is flexible and programmable, enabling customers to optimize their printing operations, streamline deployment, and achieve quick return on investment.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.30"
Barcode Symbology Supported:
  • UPC/EAN
  • UCC/EAN 128
  • POSTNET
  • HIBCC
  • ISBT-128
Print Technology:
Thermal Transfer
Memory
Standard Memory:
32 MB
Memory Technology:
SDRAM
Flash Memory:
16 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Continuous Label
  • Tag
  • Ticket
  • Black Mark
  • Gap
  • Notch
  • General Identification Label
Media Thickness:
10 mil
Maximum Roll Diameter:
8.38"
Maximum Label Width:
4.70"
Maximum Label Length:
13.42 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Physical Characteristics
Height:
9.4"
Width:
10.8"
Depth:
19"
Miscellaneous
Additional Information:
  • Universal Firmware
  • Compact Flash Slot
Platform Supported:
PC
Item Numbers
GTIN: 0098998856013, 0643749600089, 0783555025970, 5052461753976
UPC: 098998856013, 643749600089, 682276172256, 783555025970
EAN: 0098998856013, 0643749600089, 0783555025970, 5052461753976
UNSPSC: 43212108
