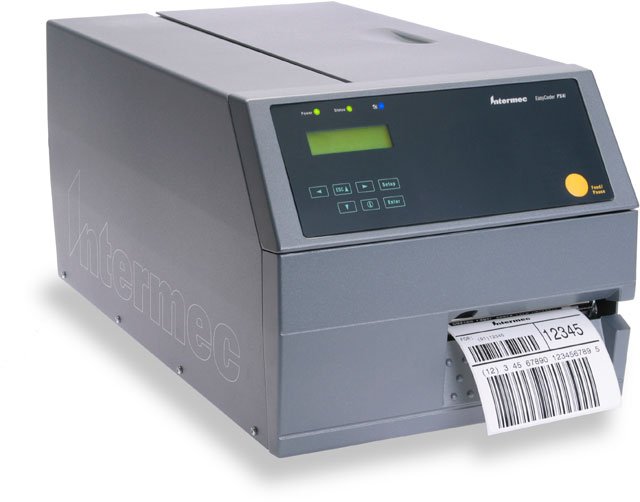

Intermec EasyCoder PX4i – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: PX4B941000300120

Model: EasyCoder PX4i

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Parallel, Wi-Fi

Print Resolution

203 dpi

Product Description:

EasyCoder PX4i Direct Thermal-Thermal Transfer Printer (IPL, EasyLAN Wireless Interface 802.11b-g-FCC, Parallel Interface, No Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, RTC and TT 203 dpi)

Explore all Intermec EasyCoder PX4i Barcode Label Printers

Add to Quote

Intermec PX4B941000300120 Barcode Label Printer

Overview

Full specifications (PDF)

Intermec EasyCoder PX4i Barcode Label Printer Model Overview

Designed for easy integration into manufacturing environments, the EasyCoder PX4i printer can be mounted in virtually any position. The versatile form factor facilitates the addition of add-ons such as an automatic label applicator. Up to seven wired and wireless connectivity interfaces can be used simultaneously eliminating connectivity restrictions and supporting additional devices. The EasyCoder PX4i printer can operate as stand alone devices executing user-defined programs thereby eliminating the need for a PC. The EasyCoder PX4i can operate production line machinery including scanners, scales and other printers and conveyors as well as access information directly from the network host, is fully programmable and is able to change with the application as needed. Ships with full-featured version of LabelShop START label design software.

Intermec PX4B941000300120 Barcode Label Printer Overview

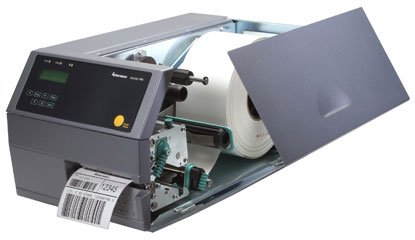

The EasyCoder PX4i is rugged, metal, high performance printer designed to excel in demanding environments and support round the clock operations. The open, modular design ensures the printer is easy to adapt, maintain and service. Designed for easy integration into manufacturing environments. The versatile form factor facilitates the addition of add ons such as an automatic label applicator. The EasyCoder PX4i printer can operate as stand alone device executing user defined programs thereby eliminating the need for a PC.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

12 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.40"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
MSI PLESSEY
Code 128
Code 128-A
Code 128-B
Code 128-C
DUN-14/16
UPC/EAN
EAN 128
EAN-128 Subset A
EAN-128 Subset C
Industrial 2 of 5
Interleaved 2 of 5
Interleaved 2 of 5 A
Matrix 25
Planet Code
POSTNET
Straight 2 of 5
UCC 128
QR Code
HIBC Code 39
EAN.UCC Composite
JIS-ITF
Code 16K
Code 49
Data Matrix
Maxi Code
PDF-417

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Wireless LAN:

Yes

Media Types & Handling

Media Type:

Roll Fed
Die-cut Label
Continuous Label
Fanfold
Tag
Ticket

Media Thickness:

9.84 mil

Maximum Roll Diameter:

8.38"

Label Core Size:

2.99"

Fonts & Emulation

Language Emulation:

IPL

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

9.4"

Width:

10.8"

Depth:

19"

Miscellaneous

Additional Information:

Graphics: Supports PCX file format
Wand interface for EasySet System
Max Print Width: DT 4.4 in & TT 4.3 in
Display: Back-lit LCD for 2 x16 characters & 3 LED indicator lamps

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108
