Intermec PX4B911000300040 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

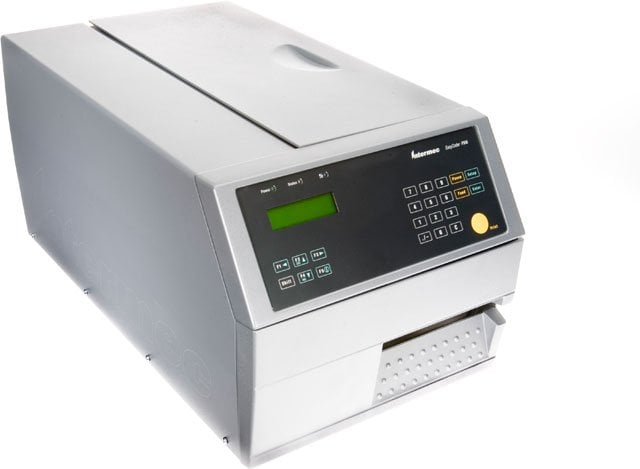

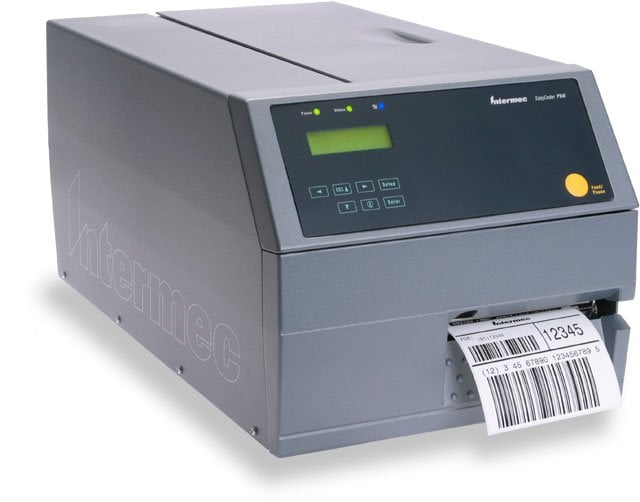

Intermec EasyCoder PX4i - Thermal transfer printer, 4.4" print width, 12"/sec speed, 406 dpi, 16MB RAM, 4MB Flash, US power cord, IPL, EasyLAN Ethernet Interface, Parallel Interface, No Option 2, Rotating Unwinding Media Hanger
Flexible connectivity enables use of up to seven wired and wireless interfaces simultaneously!

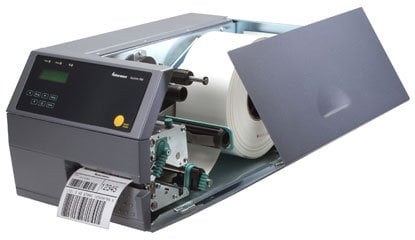

The EasyCoder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The EasyCoder PX4i features a maximum print width of 4 inches and either 203 or 300 dpi resolution printheads. The open, modular design ensures the printer is easy to adapt, maintain and service. The EasyCoder PX4i printer prints instantly from first to last label at up to 12 ips-ideal for on demand and compliance labeling applications with variable data requiring immediate results. The combination of powerful, individually controlled micro-step motors, generously dimensioned power supply and new sophisticated thermal management printhead ensures high-quality labels each and every time. Includes Intermec LabelShop START barcode label design software.

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 400 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.30"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • MSI PLESSEY
    • Code 128
    • Code 128-A
    • Code 128-C
    • DUN-14/16
    • UPC/EAN
    • EAN 128
    • EAN-128 Subset A
    • EAN-128 Subset C
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Interleaved 2 of 5 A
    • Matrix 25
    • Planet Code
    • POSTNET
    • Straight 2 of 5
    • UCC 128
    • RSS
    • HIBC Code 39
    • HIBC Code 128
    • JIS-ITF
    • Code 16K
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417
    • EAN.UCC Composite

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: PX
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PX4i
  • Product Name: EasyCoder PX4i Thermal Label Printer
  • Product Line: EasyCoder

Physical Characteristics

  • Height: 9.4"
  • Width: 10.8"
  • Depth: 19"

Other

  • Platform Supported: PC
  • Package Contents:
    • EasyCoder PX4i Label Printer
    • Power Cord
    • User & Installation manuals
    • Printer Companion CD
    • Cleaning Card
    • Product registration card
    • Declaration of Conformity
    • EasyCoder PX4i Label Printer
    • Power Cord
    • User & Installation manuals
    • Printer Companion CD
    • Cleaning Card
    • Product registration card
    • Declaration of Conformity
  • Certifications & Standards:
    • CE (EN55022 Class A)
    • FCC Class A
    • UL
    • CSA
    • C-Tick
  • Additional Information:
    • Print Speed: 4 - 12 ips variable
    • Graphics: Supports PCX file format
    • Max Print Width: DT 4.4 in TT 4.3 in
    • Wand Interface for Wand Barcode Scanners
    • Display: Back-lit LCD for 2 x16 characters & 3 LED indicator lamps

Media Types & Handling

  • Maximum Label Width: 4.72"
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Continuous Form
    • Fanfold
    • Tag
    • Ticket
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.38"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: IPL

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model EasyCoder PX4i
Print Speed 12
Maximum Print Width 4.40
Print Method Thermal Transfer
Label Core 1.5 inches
Print Resolution 406 dpi
Interface Options Ethernet, Parallel
Printer Type Industrial
Max Label Width 4.72
Max Roll Outer Diameter 8.38
Printer Mobility Not Mobile
Ribbon Core 1
