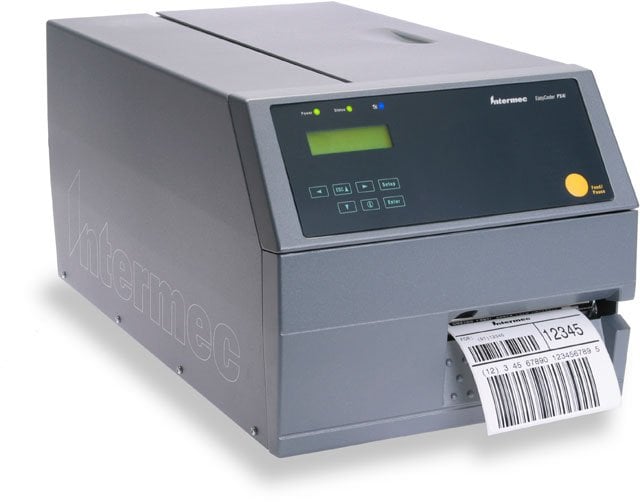

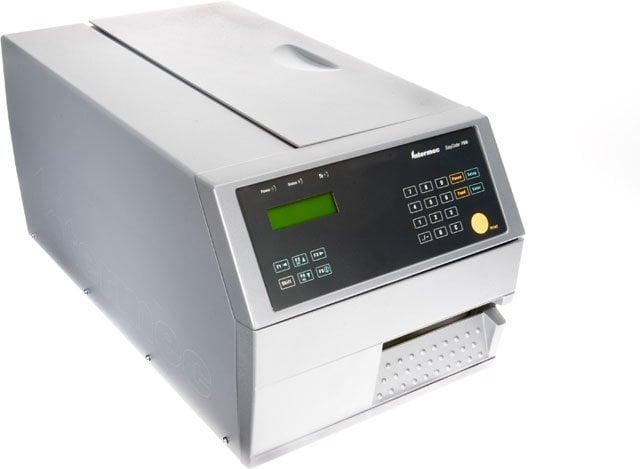

Intermec EasyCoder PX4i – Barcode Label Printer – 305 dpi – Thermal Transfer

Part Number: PX4B810000301130

Model: EasyCoder PX4i

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Ethernet

Print Resolution

305 dpi

Product Description:

Direct Thermal-Thermal Transfer printer, 4.4" print width, 12"/sec speed, 305 dpi, 16MB RAM, 4MB Flash, US power cord, Fingerprint, EasyLAN Ethernet Interface, No Option 1, No Option 2, Rotating Unwinding Media Hanger, Paper Rewind Self Strip + LTS, RTC

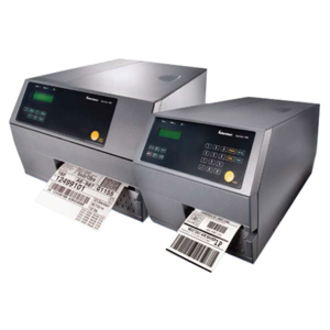

Explore all Intermec EasyCoder PX4i Barcode Label Printers

Add to Quote

Intermec PX4B810000301130 Barcode Label Printer

Overview

Full specifications (PDF)

Intermec EasyCoder PX4i Barcode Label Printer Model Overview

Designed for easy integration into manufacturing environments, the EasyCoder PX4i printer can be mounted in virtually any position. The versatile form factor facilitates the addition of add-ons such as an automatic label applicator. Up to seven wired and wireless connectivity interfaces can be used simultaneously eliminating connectivity restrictions and supporting additional devices. The EasyCoder PX4i printer can operate as stand alone devices executing user-defined programs thereby eliminating the need for a PC. The EasyCoder PX4i can operate production line machinery including scanners, scales and other printers and conveyors as well as access information directly from the network host, is fully programmable and is able to change with the application as needed. Ships with full-featured version of LabelShop START label design software.

Intermec PX4B810000301130 Barcode Label Printer Overview

The sturdy, all metal construction of the PX4i printer provides 24/7 printing in harsh industrial environments and can easily adapt to changing applications. One of the first printers to integrate Intermec's Readiness Indicator (IRI), the PX4i provides a visual cue to the operating state of the printer.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

12 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

4.30"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
MSI
Code 128
Code 128-A
Code 128-B
Code 128-C
DUN-14/16
UPC/EAN
EAN-8
EAN-13
UPC-A
UPC-E
EAN 128
EAN-128 Subset A
EAN-128 Subset B
EAN-128 Subset C
Industrial 2 of 5
Interleaved 2 of 5
Interleaved 2 of 5 A
Matrix 25
Planet Code
POSTNET
Straight 2 of 5
RSS
Code 16K
Code 49
Data Matrix
Maxi Code
PDF-417
QR Code
Micro PDF-417
EAN.UCC Composite

Real Time Clock:

Yes

Rewinder:

Yes

Print Technology:

Thermal Transfer

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Media Types & Handling

Media Type:

Roll Fed
Die-cut Label
Continuous Form
Fanfold
Tag
Ticket
Thermal Paper

Media Sensor:

Label Taken Sensor

Media Thickness:

9.84 mil

Maximum Roll Diameter:

8.38"

Maximum Label Width:

4.72"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

Fingerprint

Physical Characteristics

Height:

9.4"

Width:

10.8"

Depth:

19"

Miscellaneous

Additional Information:

LCD
Sturdy all metal construction
Interchangeable print head
Supports PCX file format
Easily adapts to changing host environments and applications

Item Numbers

UNSPSC: 43212108
