Intermec EasyCoder PX4i – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: PX4B810000300020
Model: EasyCoder PX4i
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
203 dpi

Product Description:

  EasyCoder PX4i Direct Thermal-Thermal Transfer Printer (Fingerprint, EasyLAN Ethernet Interface, No Option 1, No Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 2 and TT 203 dpi)
Explore all Intermec EasyCoder PX4i Barcode Label Printers
Add to Quote

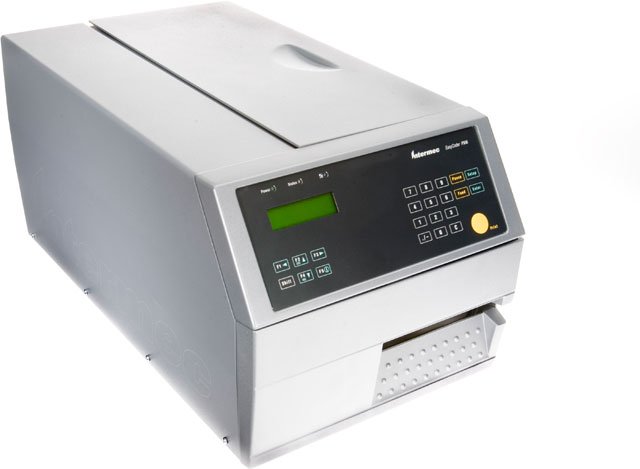

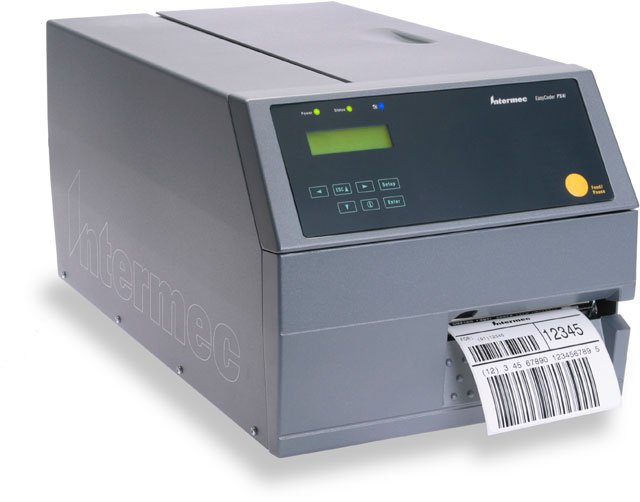

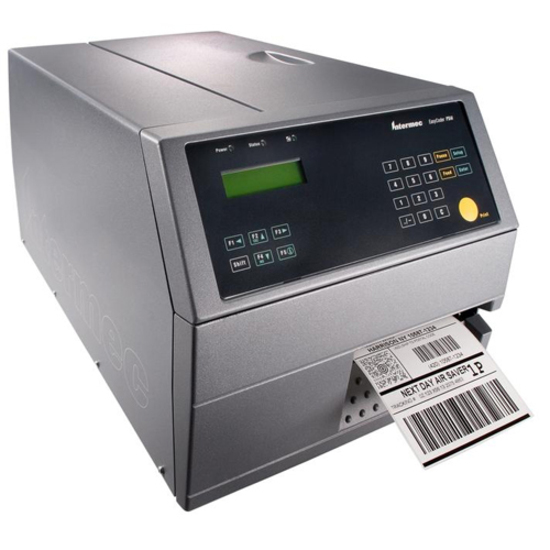

Intermec PX4B810000300020 Barcode Label Printer
Intermec PX4B810000300020 Barcode Label Printer
Intermec PX4B810000300020 Barcode Label Printer
Intermec PX4B810000300020 Barcode Label Printer
Intermec PX4B810000300020 Barcode Label Printer Intermec PX4B810000300020 Barcode Label Printer Intermec PX4B810000300020 Barcode Label Printer Intermec PX4B810000300020 Barcode Label Printer
Full specifications (PDF)

Intermec EasyCoder PX4i Barcode Label Printer Model Overview

Designed for easy integration into manufacturing environments, the EasyCoder PX4i printer can be mounted in virtually any position. The versatile form factor facilitates the addition of add-ons such as an automatic label applicator. Up to seven wired and wireless connectivity interfaces can be used simultaneously eliminating connectivity restrictions and supporting additional devices. The EasyCoder PX4i printer can operate as stand alone devices executing user-defined programs thereby eliminating the need for a PC. The EasyCoder PX4i can operate production line machinery including scanners, scales and other printers and conveyors as well as access information directly from the network host, is fully programmable and is able to change with the application as needed. Ships with full-featured version of LabelShop START label design software.
Intermec PX4B810000300020 Barcode Label Printer Overview

The EasyCoder PX4i are rugged, metal, high-performance printers designed to excel in demanding environments and support round-the-clock operations. The open, modular design ensures the printers are easy to adapt, maintain and service.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.30"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • MSI PLESSEY
  • Code 128
  • Code 128-A
  • Code 128-C
  • DUN-14/16
  • UPC/EAN
  • EAN 128
  • EAN-128 Subset A
  • EAN-128 Subset C
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Interleaved 2 of 5 A
  • Matrix 25
  • Planet Code
  • POSTNET
  • Straight 2 of 5
  • UCC 128
  • RSS
  • HIBC Code 39
  • HIBC Code 128
  • JIS-ITF
  • Code 16K
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • EAN.UCC Composite
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Die-cut Label
  • Continuous Label
  • Fanfold
  • Tag
  • Ticket
Maximum Roll Diameter:
8.38"
Maximum Label Width:
4.72"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
9.4"
Width:
10.8"
Depth:
19"
Miscellaneous
Package Contents:
  • EasyCoder PX4i Label Printer
  • Power Cord
  • User & Installation manuals
  • Printer Companion CD
  • Cleaning Card
  • Product registration card
  • Declaration of Conformity
Cables Included:
AC
Additional Information:
  • Compact Flash slot
  • Print Speed: 4 - 12 ips variable
  • Max Print Width: DT 4.4 in TT 4.3 in
  • Graphics: Supports PCX file format
  • Wand interface for EasySet System
  • Display: Back-lit LCD for 2 x16 characters & 3 LED indicator lamps
  • Characters Sets Fingerprint/DP Firmware: 15 scalable fonts including 12 UNICODE (1 WGL4), 1 symbol, 1 OCR-A, 1 OCR-B. Font cache for maximum performance. Non-Latin fonts are available as options
Platform Supported:
PC
Certifications & Standards:
  • CE (EN55022 Class A)
  • FCC Class A
  • UL
  • CSA
  • C-Tick
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
