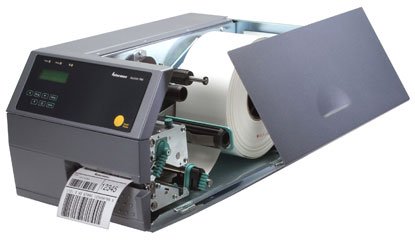

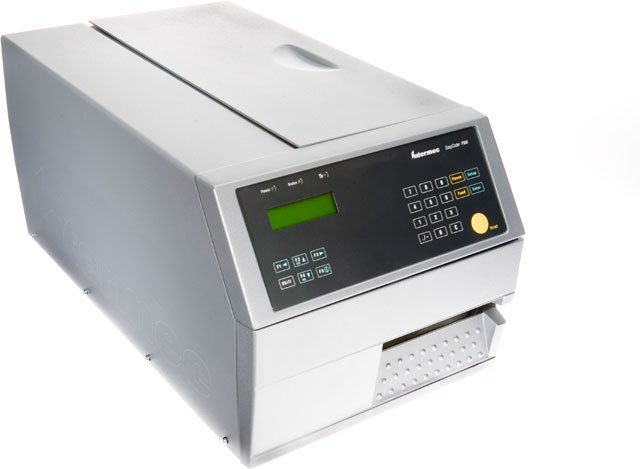

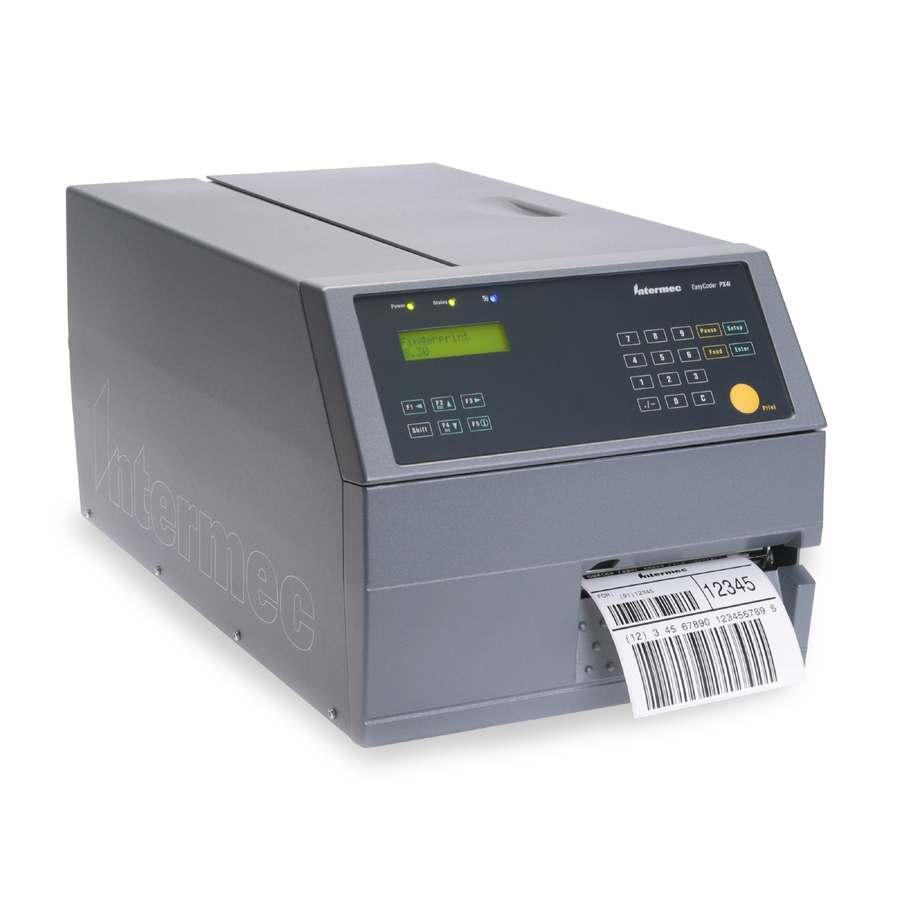

Intermec EasyCoder PX4i – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: PX4B040000300020

Model: EasyCoder PX4i

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Wi-Fi

Print Resolution

203 dpi

Product Description:

Direct Thermal-Thermal Transfer Printer, 203 dpi, 16MB RAM, 4MB Flash, US Power Cord, IPL Firmware, EasyLAN Wireless Interface 802.11b-g, FCC, No I/O Option 1, No I/O Option 2, Rotating Unwinding Media Hanger

Explore all Intermec EasyCoder PX4i Barcode Label Printers

Add to Quote

Intermec PX4B040000300020 Barcode Label Printer

Overview

Full specifications (PDF)

Intermec EasyCoder PX4i Barcode Label Printer Model Overview

Designed for easy integration into manufacturing environments, the EasyCoder PX4i printer can be mounted in virtually any position. The versatile form factor facilitates the addition of add-ons such as an automatic label applicator. Up to seven wired and wireless connectivity interfaces can be used simultaneously eliminating connectivity restrictions and supporting additional devices. The EasyCoder PX4i printer can operate as stand alone devices executing user-defined programs thereby eliminating the need for a PC. The EasyCoder PX4i can operate production line machinery including scanners, scales and other printers and conveyors as well as access information directly from the network host, is fully programmable and is able to change with the application as needed. Ships with full-featured version of LabelShop START label design software.

Intermec PX4B040000300020 Barcode Label Printer Overview

EasyCoder PX4i Printer is rugged, metal, high performance designed to excel in demanding 24/7-duty applications. The open, modular design ensures the printer is easy to adapt, maintain and service. The PX4i feature a maximum print width of 4.4 inches. The PX4i Printer print instantly from first to last label at up to 12 inches per second. This is ideal for on demand and compliance labeling applications with variable data requiring immediate results. The combination of powerful individually controlled micro step motors, generously dimensioned power supply, and new sophisticated thermal management printhead ensures high quality labels each and every time.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

12 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.40"

Barcode Symbology Supported:

Codabar
Code 11
Code 39
Code 93
MSI PLESSEY
Code 128
Code 128-A
Code 128-C
DUN-14/16
UPC/EAN
EAN 128
EAN-128 Subset A
EAN-128 Subset C
Industrial 2 of 5
Interleaved 2 of 5
Interleaved 2 of 5 A
Matrix 25
Planet Code
POSTNET
Straight 2 of 5
UCC 128
RSS
HIBC Code 39
HIBC Code 128
JIS-ITF
Code 16K
Code 49
Data Matrix
Maxi Code
PDF-417
QR Code
Micro PDF-417
EAN.UCC Composite

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Wireless LAN:

Yes

Media Types & Handling

Media Type:

Roll Fed
Die-cut Label
Continuous Form
Fanfold
Tag
Ticket

Maximum Roll Diameter:

8.38"

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

9.4"

Width:

10.8"

Depth:

19"

Miscellaneous

Additional Information:

Print Speed: 4 - 12 ips variable
Graphics: Supports PCX file format
Max Print Width: DT 4.4 in TT 4.3 in
Wand Interface for Wand Barcode Scanners
Display: Back-lit LCD for 2 x16 characters & 3 LED indicator lamps

Platform Supported:

Warranty

Limited Warranty:

1 Year
