Intermec PD42BJ1000002030 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

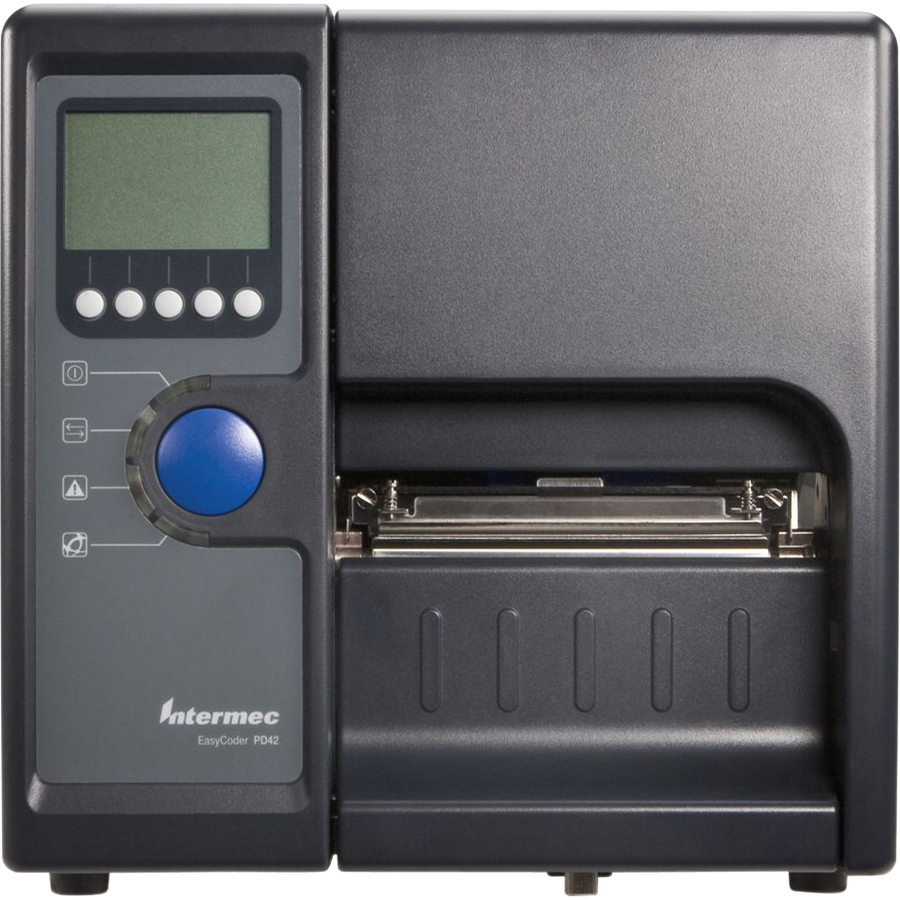

Intermec EasyCoder PD42 - PD42B, US/EU, LAN, 1284, LTS, DT/ TT300 DPI
Best performance and quality in its class

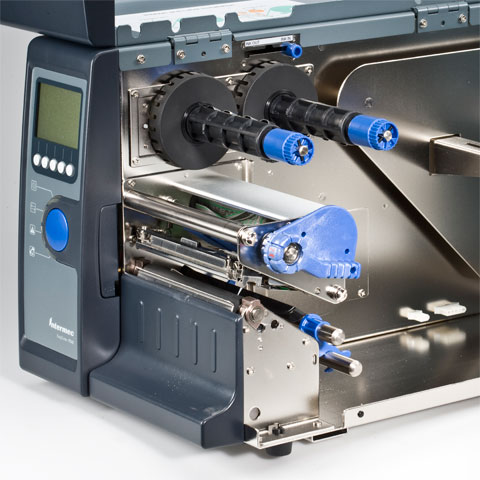

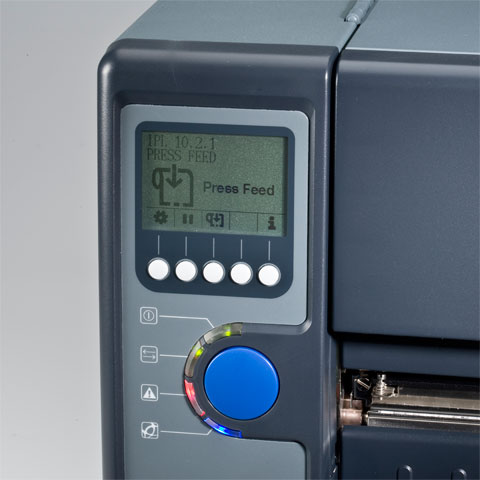

The Intermec EasyCoder PD42 is a dependable and versatile printer suitable for medium duty applications in manufacturing, transportation and warehousing environments. With all-metal chassis and covers, proven printing mechanics and powerful electronics, it provides the sturdiness and performance your business depends on. The EasyCoder PD42 is the first Intermec printer to feature a monochrome, graphical display, which allows users to set up, configure and fine tune printing parameters without having to send commands through the host, saving time. The display working in concert with the status lights provides the user specific feedback if the printer is in an off-line state. The ability to use any Intermec printer language and emulate other printer protocols makes the EasyCoder PD42 both fully compatible with other Intermec equipment and a cost-effective "drop-in" printer replacement in almost any non-Intermec firmware environment.

Technical Information

  • Maximum Mono Print Speed: 3.94 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • UCC/EAN 128
    • POSTNET
    • HIBC
    • ISBT-128

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PD42
  • Product Name: PD42 Label Printer

Physical Characteristics

  • Height: 10.8"
  • Width: 10.6"
  • Depth: 17.8"
  • Form Factor: Desktop
  • Weight (Approximate): 28.66 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Continuous Label
    • Fanfold
    • Ticket
    • Tag
    • Direct Thermal Label
    • Thermal Transfer Label
  • Media Thickness: 9.80 mil
  • Label Core Size: 2.99"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.39"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Certifications & Standards:
    • FCC
    • UL
    • cUL
    • CE
    • NOM

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL
    • IPL
    • DPL
    • EPL

Network & Communication

  • Ethernet: Yes
  • Wireless LAN: Yes
  • Ethernet Technology: Fast Ethernet
  • Wireless LAN Standard: IEEE 802.11b/g

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Intermec
Model EasyCoder PD42
Print Resolution 203 dpi
Print Speed 6
Label Core 1.5 inches, 3 inches
Print Method Thermal Transfer
Maximum Print Width 4.09
Max Label Width 4.65
Max Roll Outer Diameter 8
Interface Options Serial, USB, Ethernet
Printer Type Industrial
Printer Mobility Not Mobile
Ribbon Core 1
