Intermec EasyCoder PD42 – Barcode Label Printer – 305 dpi – Thermal Transfer

Part Number: PD42A61100012030
Model: EasyCoder PD42

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Industrial
Printing Technology
Thermal Transfer
Print Resolution
305 dpi
Max Print Width
4.75 inch

Product Description:

  PD42A, EU, FP, LAN. 1284, LTS,TT,300dpi

Intermec EasyCoder PD42 Barcode Label Printer Model Overview

The Intermec EasyCoder PD42 is a dependable and versatile printer suitable for medium duty applications in manufacturing, transportation and warehousing environments. With all-metal chassis and covers, proven printing mechanics and powerful electronics, it provides the sturdiness and performance your business depends on. The EasyCoder PD42 is the first Intermec printer to feature a monochrome, graphical display, which allows users to set up, configure and fine tune printing parameters without having to send commands through the host, saving time. The display working in concert with the status lights provides the user specific feedback if the printer is in an off-line state. The ability to use any Intermec printer language and emulate other printer protocols makes the EasyCoder PD42 both fully compatible with other Intermec equipment and a cost-effective "drop-in" printer replacement in almost any non-Intermec firmware environment.
Intermec PD42A61100012030 Barcode Label Printer Overview

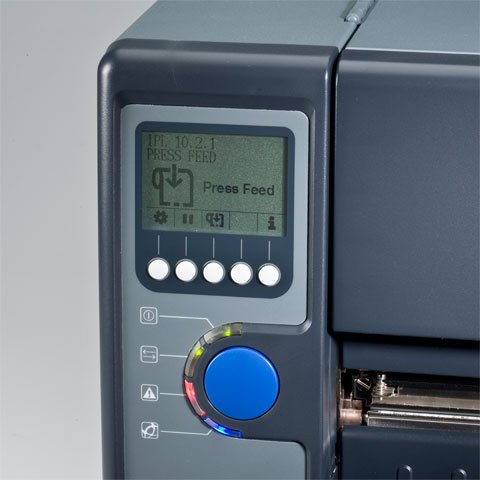

The EasyCoder PD42 is the first Intermec printer to feature a monochrome, graphical display, which allows users to set up, configure and fine tune printing parameters without having to send commands through the host, saving time. The display working in concert with the status lights provides the user specific feedback if the printer is in an off-line state.

The ability to use any Intermec printer language and emulate other printer protocols makes the EasyCoder PD42 both fully compatible with other Intermec equipment and a cost-effective "dropin" printer replacement in almost any non-Intermec firmware environment.

Using Fingerprint™ programming language, the EasyCoder PD42 can change with the application. There's no need to replace the printer when you upgrade your software environment - the printer will adapt. The EasyCoder PD42 keeps your options open and protects your investment.

The EasyCoder PD42 can print demanding crisp variable-data labels continuously at 150 mm/s (6 ips). It takes industry standard 200-mm (8-in) rolls of labels and 450 m (18 000 in) of ribbon, reducing downtime for loading media to a minimum.

The printer accepts a wide range of paper types in different thicknesses, as well as both ink-in and ink-out ribbon. In addition the EasyCoder PD42 offers many Smart Printing™ features normally found only in high-performance printers. By adding Intermec's LabelShop® Pro and XMLLabel™, the EasyCoder PD42 will be fully provisioned for XML printing environments.

Support for Unicode fonts and Intermec Ready-to-Work™ indicator are standard - all at an affordable and competitive price. Networking is an increasingly important user requirement but still a rare feature in this printer class. The EasyCoder PD42 offers EasyLAN™ high-speed, multichannel Ethernet as a standard choice.

An open and accessible design makes media loading quick and easy, and the print head can easily be replaced without using any tools.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Length:
40.47"
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Code 39
  • Codabar
  • Code 11
  • Code 93
  • Code 128
  • Plessey
  • UPC-A
  • UPC-E
  • Industrial 2 of 5 w
  • EAN-8
  • EAN-13
  • UPC Shipping Container code
  • UCC/EAN 128
  • HIBCC
  • POSTNET
  • ISBT-128
  • EAN-128
  • RSS
  • Industrial 2 of 5
  • Matrix 2 of 5
  • Code 49
  • Code 16K
  • Data Matrix
  • Interleaved 2 of 5 A
  • PDF417
Application/Usage:
  • Warehouse
  • Desktop
  • Manufacturing
  • Business
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Thermal Transfer Label
  • Direct Thermal Label
  • Roll Fed
  • Die-cut Label
  • Continuous Label
  • Fanfold
  • Tag
  • Ticket
Media Sensor:
  • Gap Sensor
  • Label Taken Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Black Mark Sensor
  • Adjustable Media Sensor
  • Media Out Sensor
Media Thickness:
9.80 mil
Maximum Roll Diameter:
8.38"
Maximum Label Width:
0.18"
Maximum Label Length:
59.84"
Label Core Size:
3"
Ribbon Core Size:
2.99"
Fonts & Emulation
Language Emulation:
IPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Frequency:
  • 45 Hz
  • 65 Hz
Environmental Conditions
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
20% - 85%
Physical Characteristics
Height:
10.7"
Width:
10.6"
Depth:
17.8"
Weight (Approximate):
28.66 lb
Miscellaneous
Package Contents:
  • EasyCoder PD42 Label Printer
  • Europe Power Cord
Cables Included:
AC
Platform Supported:
PC
Item Numbers
UNSPSC: 43212108
