Intermec EasyCoder PD42 – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: PD42A01000012020
Model: EasyCoder PD42

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
203 dpi

Product Description:

  Direct thermal-Thermal transfer printing, 203 dpi, US/IPL, EasyLAN Ethernet and LTS

Intermec EasyCoder PD42 Barcode Label Printer Model Overview

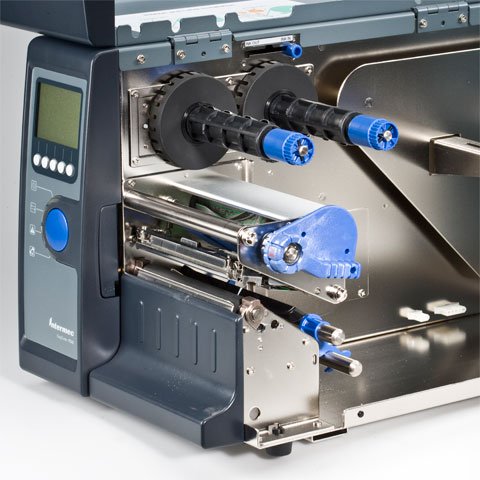

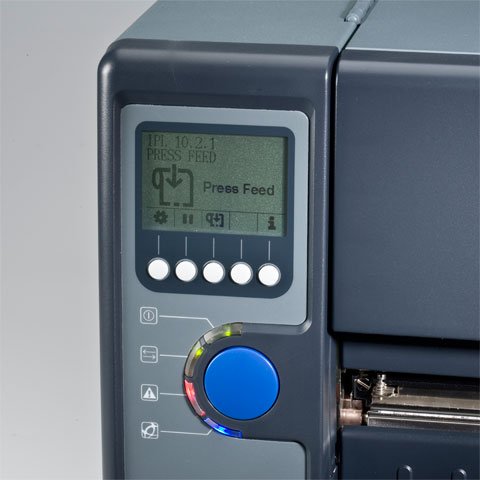

The Intermec EasyCoder PD42 is a dependable and versatile printer suitable for medium duty applications in manufacturing, transportation and warehousing environments. With all-metal chassis and covers, proven printing mechanics and powerful electronics, it provides the sturdiness and performance your business depends on. The EasyCoder PD42 is the first Intermec printer to feature a monochrome, graphical display, which allows users to set up, configure and fine tune printing parameters without having to send commands through the host, saving time. The display working in concert with the status lights provides the user specific feedback if the printer is in an off-line state. The ability to use any Intermec printer language and emulate other printer protocols makes the EasyCoder PD42 both fully compatible with other Intermec equipment and a cost-effective "drop-in" printer replacement in almost any non-Intermec firmware environment.
Intermec PD42A01000012020 Barcode Label Printer Overview

The EasyCoder PD42 is a dependable and versatile printer suitable for medium duty applications in manufacturing, transportation and warehousing environments. With all-metal chassis and covers, proven printing mechanics and powerful electronics, it provides the sturdiness and performance your business depends on.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • Code 128-A
  • Code 128-C
  • DUN-14/16
  • EAN-8
  • EAN-13
  • EAN 128
  • EAN-128 Subset A
  • EAN-128 Subset C
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Interleaved 2 of 5 A
  • Matrix 25
  • POSTNET
  • Straight 2 of 5
  • UCC 128
  • UPC-5 Digits Add-on
  • UPC-A
  • UPC-D1
  • UPC-D2
  • UPC-D3
  • UPC-D4
  • UPC-D5
  • UPC-E
  • RSS
  • Planet Code
  • Plessey
  • Code 16K
  • Code 49
  • Data Matrix
  • Maxi Code
  • MSI
  • PDF-417
  • QR Code
  • Micro PDF-417
  • EAN.UCC Composite
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Continuous Form
Media Sensor:
Label Taken Sensor
Maximum Roll Diameter:
8.35"
Maximum Label Width:
4.64"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
IPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
10.8"
Width:
10.6"
Depth:
17.8"
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • EasyCoder PD42 Label Printer
  • US Power Cord
  • User Quick Start Guide
Cables Included:
AC
Additional Information:

Label Taken Sensor

Platform Supported:
PC
Certifications & Standards:
  • FCC
  • UL
  • cUL
  • CE
  • NOM
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0732387102595
UPC: 732387102595
EAN: 0732387102595
UNSPSC: 43212108
