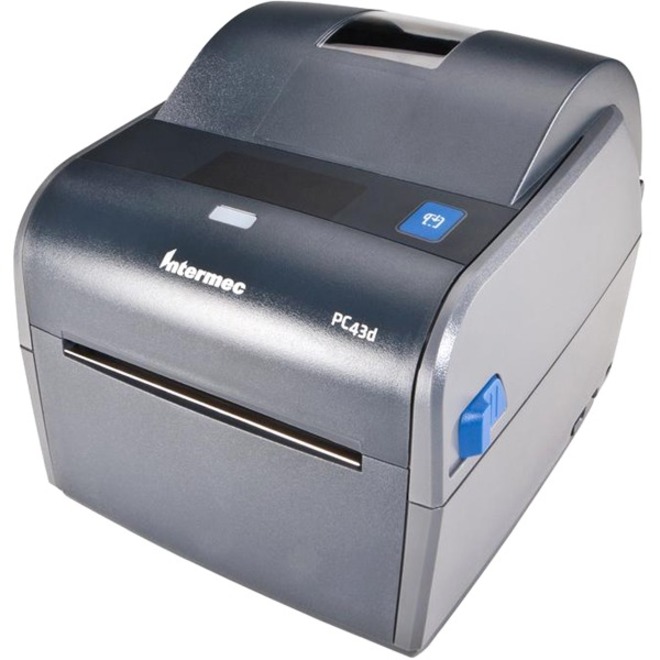

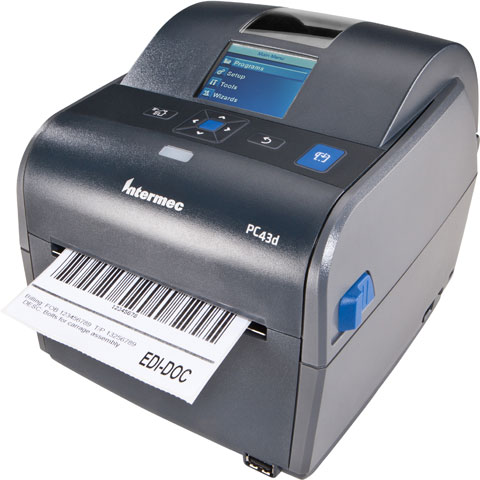

Intermec PC43DA00000201 Barcode Printer

Improve productivity & efficiency

The Intermec PC43d is designed to set a new standard in user friendliness and flexibility. PC43d features a multi-language LCD or Icon-graphics user interface for maximum ease of use. User-installable connectivity options and accessories ensure that PC43d will fit your business needs both today and tomorrow. Its low cost and fast operation make the PC43d the smart choice for light-duty labeling applications where users need a reliable, easy-to-use printing solution.

Technical Information

Maximum Mono Print Speed: 8 in/s
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Maximum Print Width: 4.10"
Recommended Use: Label Print
Features:
- Icon-graphics
- Real Time Clock
Barcode Symbology Supported:
- Aztec Code
- Code 16K
- Code 49
- Data Matrix
- EAN-8
- EAN-13
- EAN.UCC 128
- Grid Matrix
- HIBC Code 128
- HIBC Code 39
- Maxi Code
- MSI
- PDF-417
- Plessey
- POSTNET
- Planet Code
- Micro PDF-417
- QR Code
- RSS-14

General Information

Product Type: Direct Thermal Printer
Product Series: PC
Brand Name: Intermec
Manufacturer: Intermec Technologies Corporation
Product Model: PC43d
Product Name: PC43d Desktop Printer

Physical Characteristics

Height: 6.6"
Width: 7.1"
Depth: 8.4"
Form Factor: Desktop
Weight (Approximate): 3.80 lb

Interfaces/Ports

USB: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- ENERGY STAR
- RoHS
Platform Supported: PC
Package Contents:
- PC43d Desktop Printer
- Software, Driver & Documentation CD
- USB Cable
- Power Adapter
- Power Cord
- Handy QuickGuide
- PC43d Desktop Printer
- Software, Driver & Documentation CD
- USB Cable
- Power Adapter
- Power Cord
- Handy QuickGuide
Certifications & Standards:
- CE
- FCC Class A
- C-UL-US
- UL
- GS
- TUVGS
- BSMI
- D Mark
- cUL
- CCC (China)
- KCC (South Korea)
- C-TICK (Australia/NZ)
- UL 60950-1
- EN 60950-1
- CE marked
- NYCE Certified
- NOM 19
- IEC 60950-1
- USA FCC Title 47
- Part 15
- Subpart A
- Class B
- Europe EMC Directive (EN55022 Class B + EN55024)
- CISPR22

Media Types & Handling

Maximum Label Width: 4.70"
Maximum Label Length: 68"
Media Type:
- Linerless
- Self Adhesive Label
- Non-adhesive Tag
- Continuous Paper
- Floodcoat
Media Sensor: Transmissive Media Sensor
Label Core Size: 1.50"
Maximum Roll Diameter: 5"

Fonts & Emulation

Language Emulation:
- XML
- IPL
- ZSim
- DSim
- E-Sim
- Fingerprint

Memory

Standard Memory: 128 MB
Memory Technology: DDR2 SDRAM
Flash Memory: 128 MB

Power Description

Input Voltage: 24 V DC
Power Source: Power Adapter

Warranty

Limited Warranty: 1 Year

Full specifications (PDF)

See all Intermec PC43d options »

Brand	Intermec
Model	PC43d
Print Speed	8
Printer Type	Desktop
Print Resolution	203 dpi
Label Core	1 inch
Print Method	Direct Thermal
Maximum Print Width	4.10
Max Roll Outer Diameter	5
Max Label Width	4.65
Interface Options	USB
Printer Mobility	Not Mobile
