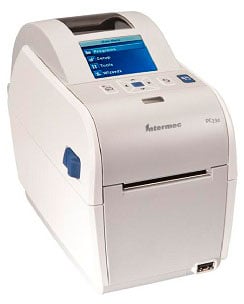

Honeywell PC23DA0010021 Barcode Label Printer

Honeywell EasyCoder PC23d - Desktop Printer, Intermec EasyCoder PC23d, Direct Thermal, 203 dpi, 8ips, LCD/Real-time Clock, USB, LCD Display, US Power Cord
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
USB, USB Host
Print Resolution
203 dpi
Printer Options
Real-Time Clock
Max Print Width
2.25 inch
Display Type
LCD
  • Direct Thermal Printer provides you with all the features that you need to print quickly and easily
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 2.40" maximum label width for your convenience and feasible usability
  • 68" maximum label length for your convenience and feasible usability
  • Supports tag media type for better reliance and maximum usability
  • Direct Thermal Printer with desktop application/usage provides reliable, feasible printing solution
  • Comes with 128 MB standard memory to make you productive with the direct thermal printer smooth performance
  • 2.4" screen size offers maximum convenience with added efficiency
Read More
$437.64
Recommended TrueSupport Coverage (/mo.)
Add to Quote
Honeywell EasyCoder PC23d Barcode Label Printer Model Overview
Simple to install and easy to use, the PC series printers are perfect for space-constrained settings. They offer tailored solutions for transportation and courier, healthcare, retail and hospitality markets, as well as small and medium businesses.

Key Features
  • Flexible, with user-installable connectivity upgrades and accessories.
  • Ten-language LCD or intuitive icon graphical user interface.
  • Simple to use and maintain, with easy one-handed media reloading.
  • Comprehensive printer command language support, including ZSim2, makes upgrading easy.

This Smart Printer runs apps right inside the printer: you can add keyboards, scanners or other USB peripherals for increased efficiency.
PC series Desktop Printers are designed to set a new standard in ease of use and flexibility. With one of the broadest feature sets in the desktop printer class, it’s no wonder the PC series is a popular choice for light-duty, desktop labeling tasks. With numerous features typically found in larger, more expensive printers, PC series printers feature a multi-language LCD or icon user interface, user-installable connectivity options and accessories, and speedy label printing. The PC series was designed by users for quick set-up and trouble-free use. The printer adapts to its environment and fits right in with a variety of placement options, including wall mount and battery power. No need to waste time deciphering blinking LEDs –: PC printers come with a color LCD in 10 languages or a universal icon interface for immediate notifications that ensure minimal training and support. Configure and update your PC printer on the spot with the USB host port –: no computer needed. And one-hand drop-in media loading makes resupply a breeze.

The PC23 family is a purpose-built platform with innovative design guided from customer input. Tailored designs include transportation/courier, as well as small and medium business manufacturing, warehouse and office environments.

Designed to set a new standard in user friendliness and flexibility, the compact Intermec PC23 provides an intuitive label printing solution. Available in 2” wide direct thermal (PC23d) and 4” direct thermal (PC43d) or 4” thermal transfer (PC43t), the PC series is perfect for space-constrained settings. Its low cost and fast operation make the PC series the smart choice for light duty labeling applications where users need reliable, easy to use printers.

Ideal for customers who are new to label printing or who are making the switch from laser or inkjet printers, the easy-to-use PC23 and PC43 desktop printers feature a double-wall clamshell construction for long term durability.

The PC series was designed by users for quick set-up and trouble-free use. With the most placement options including wall mount and battery power, the printer adapts to its environment and fits right in. No longer are users required to decode a blinking LED to determine printer status. The PC series comes with either a universal Icon interface or color LCD in 10 languages for immediate notifications reducing training and support needs. Configure and update the PC printer on the spot with USB host port – no computer necessary. One-hand drop-in media loading (and reloading) makes it highly intuitive. Best of all,the disinfectant resistant case means it’s made to last in your environment.

Honeywell PC23DA0010021 Barcode Label Printer Overview

Designed to set a new standard in user friendliness and flexibility, the 2"-wide Intermec PC23d direct thermal printer provides an intuitive label-printing solution. PC23d features a multi-language LCD or Icon-graphics user interface for maximum ease of use. User-installable connectivity options and accessories ensure that PC23d will fit your business needs both today and tomorrow. Its low cost and fast operation make the PC23d the smart choice for light-duty labeling applications where users need a reliable, easy-to-use printing solution.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • Aztec Code
  • Code 16K
  • Code 49
  • Data Matrix
  • EAN-13
  • EAN-8
  • EAN.UCC 128
  • Grid Matrix
  • HIBC Code 128
  • HIBC Code 39
  • Maxi Code
  • MSI
  • PDF-417
  • Micro PDF-417
  • Planet Code
  • Plessey
  • POSTNET
  • QR Code
  • RSS-14
Real Time Clock:
Yes
Application/Usage:
Desktop
Memory
Standard Memory:
128 MB
Memory Technology:
DDR2 SDRAM
Flash Memory:
128 MB
Interfaces/Ports
USB:
Yes
Display & Graphics
Display Screen:
Yes
Screen Size:
2.4"
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Tag
  • Linerless
  • Self Adhesive Label
  • Continuous Paper
  • Floodcoat
  • Non-adhesive Tag
Media Sensor:
Transmissive Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
2.40"
Maximum Label Length:
68"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
  • IPL
  • Fingerprint
  • DSim
  • ZSim
  • XML
  • E-Sim
Power Description
Power Source:
Power Adapter
Input Voltage:
24 V DC
Physical Characteristics
Height:
6.9"
Width:
4.9"
Depth:
8.5"
Weight (Approximate):
3.20 lb
Miscellaneous
Package Contents:
  • PC23d Desktop Printer
  • Software, Driver & Documentation CD
  • USB Cable
  • Power Adapter
  • Power Cord
  • Handy QuickGuide
Cables Included:
USB
Power Adapter Included:
Yes
Platform Supported:
PC
Certifications & Standards:
  • CE
  • FCC Class A
  • C-UL-US
  • UL
  • GS
  • TUVGS
  • BSMI
  • D Mark
  • cUL
  • CCC (China)
  • KCC (South Korea)
  • C-TICK (Australia/NZ)
  • UL 60950-1
  • EN 60950-1
  • CE marked
  • NYCE Certified
  • NOM 19
  • IEC 60950-1
  • USA FCC Title 47
  • Part 15
  • Subpart A
  • Class B
  • Europe EMC Directive (EN55022 Class B + EN55024)
  • CISPR22
Energy Star:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0098916316032, 0682017464893, 0735548761143, 0783555020043, 0893688515276
UPC: 098916316032, 682017464893, 735548761143, 783555020043, 893688515276
EAN: 0098916316032, 0682017464893, 0735548761143, 0783555020043, 0893688515276
UNSPSC: 45101512
