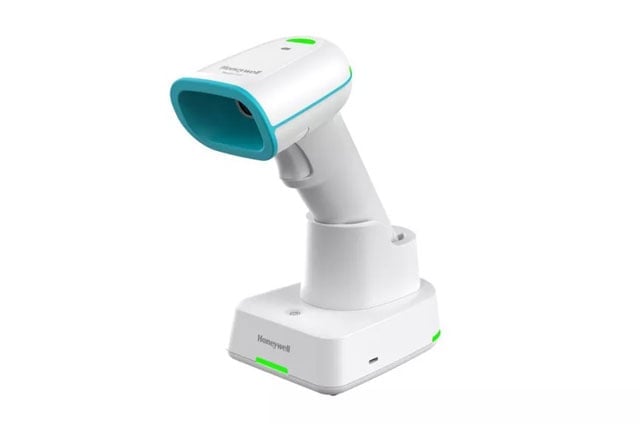

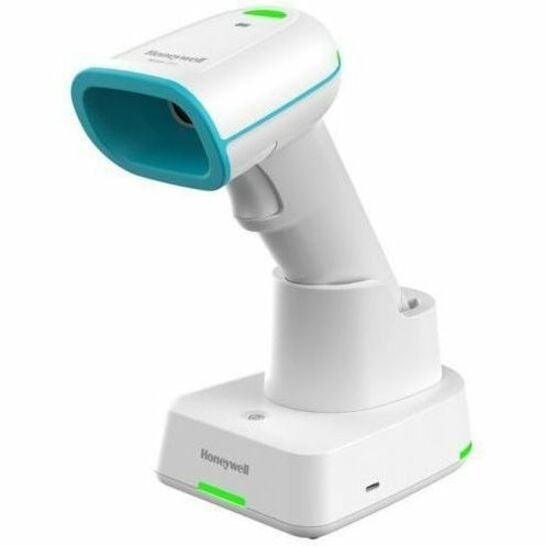

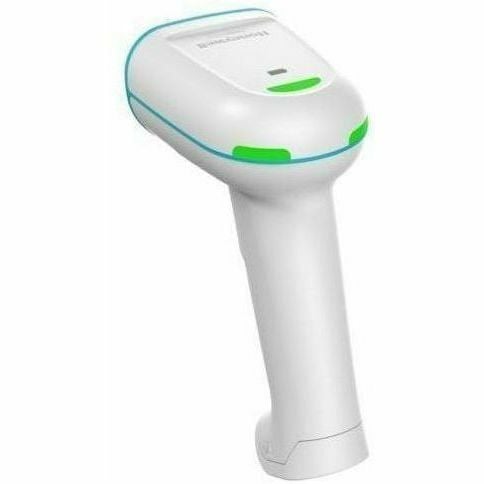

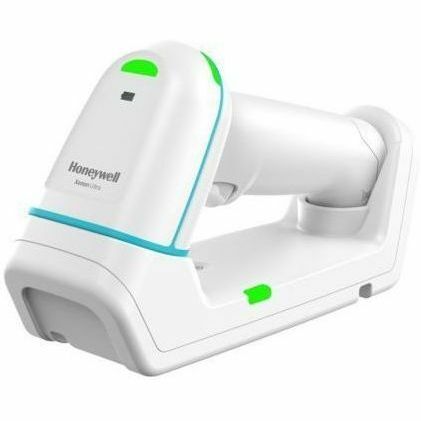

Honeywell Xenon Ultra 1962H – Barcode Scanner – Cordless – 2D – Scanner with Cable and Cradle

Part Number: 1962HHD-5USB-5-N
Model: Xenon Ultra 1962H
to get Free Ground Shipping on your order.
3-year Premium Plus ($176.21)
3-year Premium ($121.51)
No Support
$1,104.17
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless
Form Factor
Handheld
Interface Options
USB
Scanner Capability
2D

Product Description:

  Barcode Scanners, Honeywell 1962HC, USB Kit, White Anti-microbial Housing, HD Focus, USB Type A 2.7M Straight Cable, Presentation Charge and Communication Base, US & Canada Only

Honeywell Xenon Ultra 1962H Barcode Scanner Model Overview

The XENON™ ULTRA 1962H Cordless Bluetooth® Handheld Scanner by Honeywell is engineered specifically for the healthcare sector, facilitating rapid and accurate patient care. With its advanced scanning technology, this scanner supports clinicians in essential tasks like medicine administration and specimen collection. The innovative design minimizes crevices, making it easier to maintain hygiene in busy environments. Its battery-free supercapacitor offering charges in under four minutes, enabling approximately 450 scans per charge, while the flexible power options assure minimal downtime and adaptability in daily operations.


Key Features
  • Versatile Power Options: Choose between lithium-ion battery and battery-free supercapacitor.
  • Improved Hygiene Design: Anti-microbial housing allows for regular cleaning with various disinfectants.
  • High Scanning Performance: Capable of reading damaged barcodes quickly and accurately.
  • User-Friendly Functionality: Multiple operating modes, including Patient Do-Not Disturb and Vibration features.

Specifications
  • Dimensions: 108.2 mm x 70.4 mm x 160.2 mm (Scanner)
  • Weight: 247g (Lithium-ion Scanner), 218g (Battery-Free Scanner)
  • Scanning Capability: Reads standard 1D, 2D and PDF barcodes.
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Wireless Range: Bluetooth Class 1: 100 m line of sight
  • Battery Life: Up to 22 hours operation with lithium-ion battery
  • Charge Time: Full charge in under 4 minutes (supercapacitor)
  • Warranty: 3 years (scanner), 5 years (supercapacitor)
Honeywell 1962HHD-5USB-5-N Barcode Scanner Overview

Continuing the legacy of barcode technology, Honeywell's Xenon Ultra helps to ensure clinicians are delivering fast, accurate and reliable patient care.

The Xenon Ultra 1962h incorporates Honeywell's next generation of scanning capability- allowing patient care to stay top priority for clinicians, helping improve retention of employees and helping lower the total cost of ownership for hospitals.

Developed with the healthcare environment in mind, the Xenon Ultra offers an improved design which reduces the amount of nooks or crannies, helping to limit areas where germs could linger and hide.

Freedom of movement around patients, family members, and expensive equipment - particularly in congested patient rooms or ICUs - is a continued challenge for today's clinician. As more and more technology is packed into the modern-day patient room, free space comes at a premium. The Xenon Ultra 1962h scanner takes up minimal space, can be mounted or stored in a variety of different places, ensuring nurses' focus is on patient safety and comfort. One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations.

The battery-free technology runs on supercapacitors versus a battery and is capable of achieving a full charge in less than four minutes via the USB Port (under 60 seconds when using a powered USB port or external wall adapter). The Xenon Ultra 1962h scanner typically provides at least 450 scans of UPC/EAN Codes without recharging. This makes the scanner ideal for scanning applications at the bedside such as medicines administration or specimen collection.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

Decode Capabilities:

  • Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Light Source:
LED
Field of View (Horizontal):
42°
Field of View (Vertical):
36°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:

Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range

Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
20 mil
Minimum Element Resolution (DataMatrix):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
5 mil
Maximum Element Resolution (PDF417):
6.7 mil
Image Sensor Resolution:
1280 x 1080
Illumination Type:
LED
Illumination Color:
White
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Maximum Operating Power Consumption:
2.50 W
Input Current:
500 mA
Battery Information
Battery Included:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3300 mAh
Maximum Battery Run Time:
22 Hour
Maximum Battery Recharge Time:
4.50 Hour
Environmental Conditions
Operating Temperature:
41°F (5°C) to 95°F (35°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Color Family:
White
Product Color:
White
Height:
4.8"
Width:
3.6"
Length:
3.3"
Weight (Approximate):
7.76 oz
Miscellaneous
Ingress Protection (IP) Rating:
  • IP52
  • IP41
Application/Usage:
Healthcare
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Batteries (1)
  • Docks and Cradles (3)
  • Power Device (1)
  • Spare Parts (1)

Recommended Accessories for Model: Honeywell 1962HHD-5USB-5-N Barcode Scanner

Top Batteries Purchased With Honeywell 1962HHD-5USB-5-N

  • Honeywell BAT-SCN11WCHC Battery
    Honeywell BAT-SCN11WCHC Battery
    Batteries, Honeywell, Smart Battery, Lithium-ion Battery, White End Cap. Compatible with: Xenon Ultra 1962h Contactless Bluetooth Scanners
    In Stock
    $104.35
    Add to Quote

Top Docks and Cradles Purchased With Honeywell 1962HHD-5USB-5-N

  • Honeywell 1962H-WC-CUP Docks and Cradles
    Honeywell 1962H-WC-CUP Docks and Cradles
    Docks and Cradles, Honeywell, 1962 Charge and Communication Cup, Universal Presentation Base, White, Contactless, Supports Lithium-Ion and Battery-Free Scanners, Works with CCB-U00-H
    In Stock
    $204.89
    Add to Quote
  • Honeywell CCB-U00-H Docks and Cradles
    Honeywell CCB-U00-H Docks and Cradles
    Docks and Cradles, Honeywell, 1962 Charge and Communication Universal Base, Use with Charging Cup for Presentation CCB (1962H-BAT-CUP & 1962H-WC-CUP), White
    $308.49
    Add to Quote
  • Honeywell 1962H-BAT-CUP Docks and Cradles
    Honeywell 1962H-BAT-CUP Docks and Cradles
    Docks and Cradles, Honeywell, 1962 Charge and Communication Cup for use with universal presentation base, white, exposed contacts. Supports lithium-ion and battery-free scanners. Works with CCB-U00-H
    $187.22
    Add to Quote

Top Power Device Purchased With Honeywell 1962HHD-5USB-5-N

Top Spare Parts Purchased With Honeywell 1962HHD-5USB-5-N

Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 1962HHD-5USB-5-N Barcode Scanner is also known as HSM-1962HHD5USB5N or 1962HHD5USB5N.
