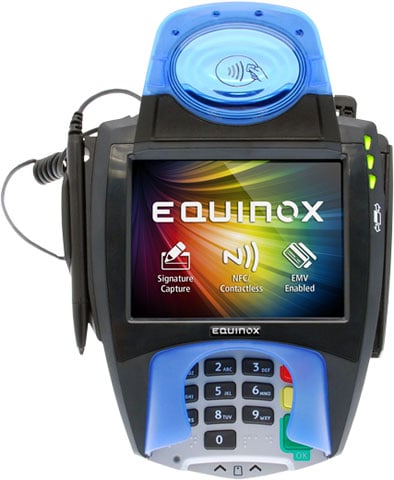

Equinox L5300 Payment Terminal
Large Color-Screen Allows for Both Signature Capture and In-Line Advertising Campaigns
The Equinox L5300 has an 18-bit (256K) color, full VGA (640 x 480 resolution), large LCD display, integrated capacitive glass touch screen, audio and video capabilities, and electronic signature capture. This allows the L5300 to easily support interactive marketing programs and in-line advertising campaigns. All of this packaged in a small footprint and light-weight design. The L5300 includes an integrated keypad with a non-removable rubberized privacy shield. Raised characters on keys were designed to address the needs of the visually impaired. An audio jack also allows for audible prompting using head phones to help meet Section 508 requirements.
The Equinox L5300 is also known as the Equinox Payments L5300
L5300 Options
|
Equinox L5300 (010368-412E)
S/ 5.7" Display & NFC / Contactless Reader (Triple Black) PCI 3.0. Requires key injection in order to accept debit or credit card payments.
|
|
|
|
Equinox (010360-611R)
L5300, PAYMENT TERMINAL, BLUE, PCI2, EMV4, SIG CAP, PIN PAD, 5.7" TOUCHSCREEN, COMMS (RS-232, USB, PWR USB, Ethernet), 400 MHz 32BIT, POWER SUPPLY NOT INCLUDED, PRICING INCLUDES MANDATORY $10 FPE AND OS LOAD PN (930080-001)
|
|
|
|
Equinox L5300 (010360-011R)
USB, HOST 2, Ethernet, PoweredUSB SD. Requires key injection in order to accept debit or credit card payments.
|
|
|
|
Equinox L5300 (N-L5300-015R)
128MB PoweredUSB. RS-232, Ethernet, Bi-Directional encrypting TRACK 1/2/3 MSR, Contactless payment factory installed, Gray Security, PCI 2.0. Requires key injection in order to accept debit or credit card payments.
|
|
|
|
Equinox L5300 (010368-411E)
S/ 5.7" Display (Black) - Base Model without NFC & CTLS PCI 3.0. Requires key injection in order to accept debit or credit card payments. Please call for more information.
|
|
|
|
Equinox (010360-612E)
L5300, BLUE, PCI2, EMV4, SIG CAP, PIN PAD, 5.7"TOUCHSCREEN, CONTACTLESS/NFC, BLUE, COMMS (RS-232, USB, PWR USB, Ethernet) 400 MHz, NO PWR SPLY
|
|
|
|
Equinox (010360-611)
L5300, EMV, BLUE, 5.7" DISPLAY, RS-232, PWR USB, Ethernet, BI-DIRECTIONAL 3 HEAD MSR, PCI 3, NO POWER SUPPLY OR CORD INCLUDED
|
|
|
|
Equinox L5300 (010360-012R)
USB, HOST 2, RS-232, Ethernet, PoweredUSB SD, (Does not Include Interface Cables). CONTACTLESS READER. Requires key injection in order to accept debit or credit card payments.
|
|
Recommended Accessories
|
Equinox (040357-001)
Stylus for L5300.
:
|
$21.00 + Add to Quote |
|
Equinox (810411-001)
Cable Adapter, 2.1 MM LKG BARREL JACK TO 2.1 MM OVERMOLD LKG RA PLUG black (Adapter that allows straight power barrel to plug directly into an L5000 terminal.)
:
|
$15.50 + Add to Quote |
|
Equinox (870066-004)
AC Power adapter, (2.1 MM DC OUT PLUG), 6 ft. L5xxx
Ships in 3-5 Days
|
$21.90 + Add to Quote |
|
Equinox (810410-001)
CABLE, MDIN9F TO RJ45 12IN BLACK (Adapter that allows connecting an L4xxx RS-232 cable to an L5000 terminal (Non-locking interface).
Ships in 3-5 Days
|
$15.90 + Add to Quote |
