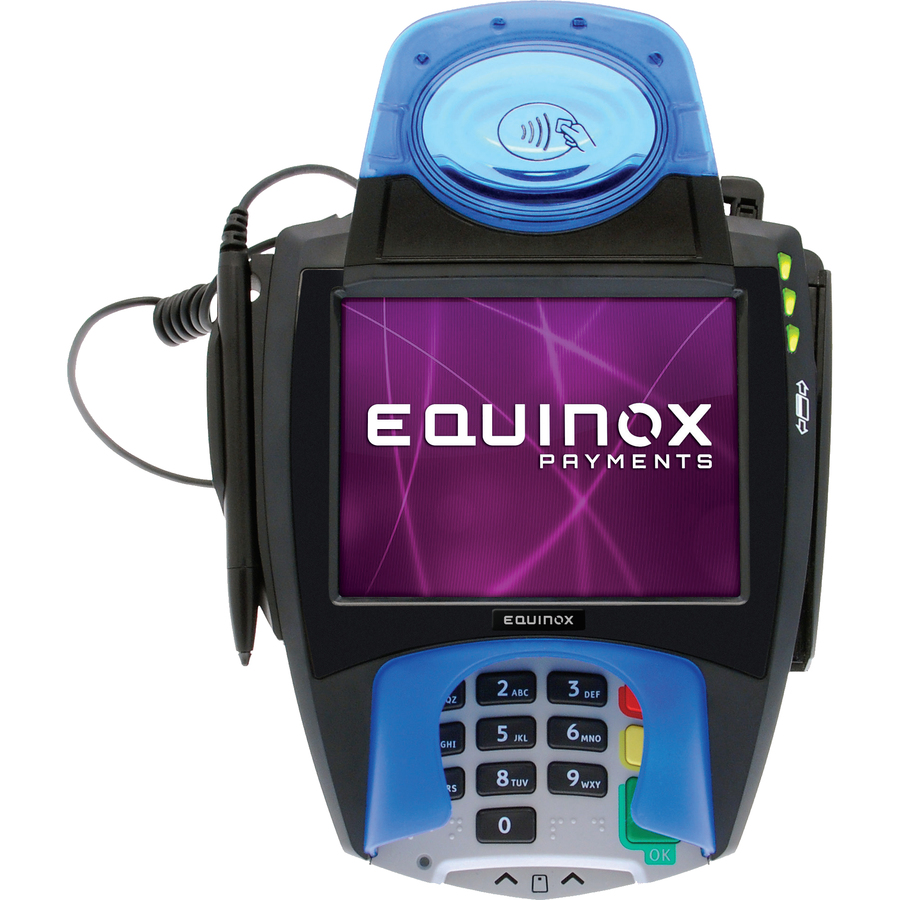

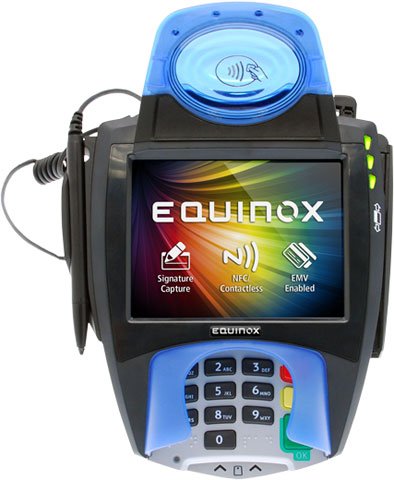

Equinox 010360-011R Payment Terminal

Equinox L5300 - Payments L5300 Payment Terminal - 5.7" - Color - LCD Display 400 MHz - 128 MB RAM - Triple DES, DUKPT - Ethernet - USB, Network, PoweredUSBUSB - PCI PED, Pin Pad, Signature Capture

Full specifications (PDF)

Large Color-Screen Allows for Both Signature Capture and In-Line Advertising Campaigns
The Equinox L5300 has an 18-bit (256K) color, full VGA (640 x 480 resolution), large LCD display, integrated capacitive glass touch screen, audio and video capabilities, and electronic signature capture. This allows the L5300 to easily support interactive marketing programs and in-line advertising campaigns. All of this packaged in a small footprint and light-weight design. The L5300 includes an integrated keypad with a non-removable rubberized privacy shield. Raised characters on keys were designed to address the needs of the visually impaired. An audio jack also allows for audible prompting using head phones to help meet Section 508 requirements.
Equinox 010360-011R Overview

The L5300 is our most popular device with large retailers who want to take advantage of a full-sized, brilliant color display for advertising campaigns. Included in the Google Wallet launch in September 2011, the L5300 and its optional contactless reader serves as a platform to deliver the latest NFC, wallet and other applications.

Full specifications (PDF)

Technical Information
Encryption:
  • Triple DES
  • DUKPT
Signature Capture:
Yes
Pin Pad:
Yes
Processor & Chipset
Processor Speed:
400 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
256 MB
Display & Graphics
Screen Size:
5.7"
Display Color:
Color
Screen Mode:
VGA
Display Screen Type:
LCD
Touchscreen:
Yes
Screen Resolution:
640 x 480
Network & Communication
Ethernet Technology:
Ethernet
Interfaces/Ports
Network (RJ-45):
Yes
USB:
Yes
Powered USB:
Yes
Number of Network (RJ-45) Ports:
1
Number of USB Ports:
1
Built-in Devices
Built-in Devices:
Magnetic Stripe Reader
Software
Operating System:
Linux
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Miscellaneous
Additional Information:
Advanced Security:
? PCI PTS 3.x compliant
? Fully compatible with all commercially available point-to-point
encryption schemas

Superior Application Architecture:
? Linux operating system-open yet secure
? Flexible FPE application supports all standard POS interfaces
? Remote terminal management system
Remote Key Injection
? Safe, secure and fully certifed solution for remotely loading
symmetric keys
? Attended or unattended key downloads-in-lane keyloading
through the POS

NFC Capable:
? Ergonomic integrated contactless reader installed in
factory or in the feld
? Fully compliant with ISO14443 and emerging
ISO18092 standards
? Supports all major eWallets
Certifications & Standards:
? EMV Levels I & II
? PCI PTS
? MasterCard TQM
? Interac
? PCI PIN Security Guidelines 2.0 Normative Annex A
? FCC ID
? UL
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211720

Loading...

The Equinox 010360-011R is also known as Equinox Payments 010360-011R or 010360011R .
