Equinox 010368-412E Payment Terminal


0.0

(No reviews)

Be the first to

Write a Review

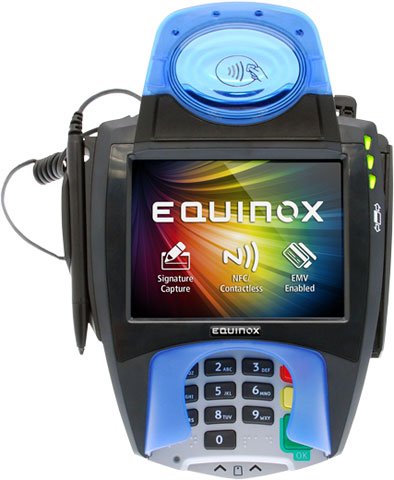

Equinox L5300 - S/ 5.7" Display & NFC / Contactless Reader (Triple Black) PCI 3.0. Requires key injection in order to accept debit or credit card payments.
Large Color-Screen Allows for Both Signature Capture and In-Line Advertising Campaigns

The Equinox L5300 has an 18-bit (256K) color, full VGA (640 x 480 resolution), large LCD display, integrated capacitive glass touch screen, audio and video capabilities, and electronic signature capture. This allows the L5300 to easily support interactive marketing programs and in-line advertising campaigns. All of this packaged in a small footprint and light-weight design. The L5300 includes an integrated keypad with a non-removable rubberized privacy shield. Raised characters on keys were designed to address the needs of the visually impaired. An audio jack also allows for audible prompting using head phones to help meet Section 508 requirements.

General Information

  • Product Type: Payment Terminal
  • Brand Name: Equinox Payments
  • Manufacturer: Equinox Payments, LLC
  • Product Model: L5300
  • Product Name: L5300 Payment Terminal

Technical Information

  • Encryption:
    • Triple DES
    • DUKPT
  • Features: Signature Capture

Physical Characteristics

  • Color: Black

Display & Graphics

  • Display Screen Type: LCD
  • Display Color: Color
  • Screen Size: 5.7"
  • Graphics Modes: VGA
  • Touchscreen: Yes
  • Display Resolution: 640 x 480

Other

  • Certifications & Standards: ? EMV Levels I &amp; II<br />? PCI PTS<br />? MasterCard TQM<br />? Interac<br />? PCI PIN Security Guidelines 2.0 Normative Annex A<br />? FCC ID<br />? UL
  • Additional Information:
    • Advanced Security:
    • ? PCI PTS 3.x compliant<br />? Fully compatible with all commercially available point-to-point <br />encryption schemas<br /><br />Superior Application Architecture:
    • ? Linux operating system-open yet secure<br />? Flexible FPE application supports all standard POS interfaces<br />? Remote terminal management system<br />Remote Key Injection<br />? Safe, secure and fully certifed solution for remotely loading <br />symmetric keys<br />? Attended or unattended key downloads-in-lane keyloading <br />through the POS<br /><br />NFC Capable:

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 128 MB

Power Description

  • Input Voltage Range: 100 V AC to 240 V AC
  • Input Voltage: 220 V AC

Software

  • Operating System: Linux

Warranty

  • Limited Warranty: 3 Year

Built-in Devices

  • Built-in Devices: Magnetic Stripe Reader

Network & Communication

  • Network Technology: Ethernet

Processor & Chipset

  • Processor Speed: 400 MHz

Full specifications (PDF)

Full specifications (PDF)

Brand Equinox
Model L5300
Form Factor Signature Capture


Customer Review Summary

Recommended Accessories for Model: Equinox L5300 Payment Terminal
Equinox (810411-001)
Cable Adapter, 2.1 MM LKG BARREL JACK TO 2.1 MM OVERMOLD LKG RA PLUG black (Adapter that allows straight power barrel to plug directly into an L5000 terminal.)
In Stock: Ships Same Day
$15.50
+ Add to Quote
Equinox (040357-001)
Stylus for L5300.
In Stock: Ships Same Day
$21.00
+ Add to Quote
Equinox (870066-004)
AC Power adapter, (2.1 MM DC OUT PLUG), 6 ft. L5xxx
In Stock: Ships Same Day
$21.90
+ Add to Quote
Equinox (810410-001)
CABLE, MDIN9F TO RJ45 12IN BLACK (Adapter that allows connecting an L4xxx RS-232 cable to an L5000 terminal (Non-locking interface).
Ships in 3-5 Days
$15.90
+ Add to Quote
Protect Your Product

The Equinox 010368-412E is also known as Equinox Payments 010368-412E or 010368412E .
