DLI 9200 Data Terminal

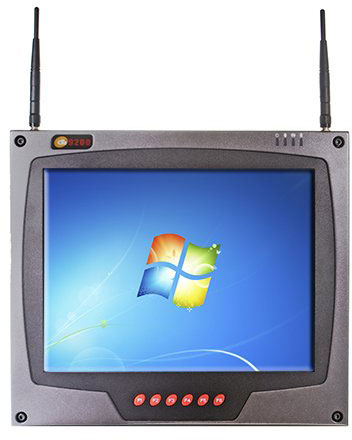

DLI 9200  -  The DLI 9200 vehicle mount computer is offered with either a 12.1" or 15" industrial-rated touchscreen ensuring a perfectly sized display no matter what your application. Powered by a dual-core Atom processor and sporting a shock-mounted HDD or blazing fast SSD, the DLI 9200 is powerful enough to run the most demanding software. With OS choices include Windows 7, Embedded Standard 7, Vista, XP Pro, even Linux, the DLI 9200 fits easily into existing IT systems. Integrated WiFi, CDMA/GPRS, Bluetooth, and GPS keeps the DLI 9200 and your workforce connected throughout the enterprise - no matter where the work takes your business.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$1,497.62
Item on backorder — chat for lead time
DLI 9200 Data Terminal
DLI 9200 Data Terminal
Accessories For DLI 9200 Data Terminal

DLI 9200 Data Terminal Options

  • DLI 9200A Data Terminal

    DLI 9200A Data Terminal
    DLI 9200 VMT, Intel Dual Core 1.80Ghz CPU, 2GB RAM, 1-10/100/1000 Ethernet, 802.11a/b/g/n (a/c), Bluetooth Class 2, Internal Battery, RAM 202U mounting ball, Screen Protector. 12.1" 1024 X 768, 500NIT LCD, Indoor Resistive Touch Screen, 2-USB, 1-RS232, 1-VGA (Does not include Power Cable, 12'' W/5A Fuse & Bare Leads, AC Wall Adapter, or Power Supply,Surge Supressor). (Many more configurations available, please call us for all options)..
    Item on backorder — chat for lead time
    $1,497.62
    Add to Quote
  • DLI 9200F Data Terminal

    DLI 9200F Data Terminal
    DLI 9200 VMT, Intel Dual Core 1.80Ghz CPU, 2GB RAM, 1-10/100/1000 Ethernet, 802.11a/b/g/n (a/c), Bluetooth Class 2, Internal Battery, RAM 202U mounting ball, Screen Protector. 15.1" 1024 X 768, 500NIT LCD, Indoor/Outdoor Resistive Touch Screen, 2-USB, 2-RS232 (Does not include Power Cable, 12'' W/5A Fuse & Bare Leads, AC Wall Adapter, or Power Supply,Surge Supressor). (Many more configurations available, please call us for all options)..
    Item on backorder — chat for lead time
    Discontinued Need Assistance?
  • DLI 9200C Data Terminal

    DLI 9200C Data Terminal
    DLI 9200 VMT, Intel Dual Core 1.80Ghz CPU, 2GB RAM, 1-10/100/1000 Ethernet, 802.11a/b/g/n (a/c), Bluetooth Class 2, Internal Battery, RAM 202U mounting ball, Screen Protector. 12.1" 1024 X 768, 500NIT LCD, Outdoor Resistive Touch Screen, 2-USB, 1-RS232, 1-VGA (Does not include Power Cable, 12'' W/5A Fuse & Bare Leads, AC Wall Adapter, or Power Supply,Surge Supressor). (Many more configurations available, please call us for all options)..
    Item on backorder — chat for lead time
    Discontinued Need Assistance?
  • DLI 9200D Data Terminal

    DLI 9200D Data Terminal
    DLI 9200 VMT, Intel Dual Core 1.80Ghz CPU, 2GB RAM, 1-10/100/1000 Ethernet, 802.11a/b/g/n (a/c), Bluetooth Class 2, Internal Battery, RAM 202U mounting ball, Screen Protector. 12.1" 1024 X 768, 500NIT LCD, Outdoor Resistive Touch Screen, 2-USB, 2-RS232 (Does not include Power Cable, 12'' W/5A Fuse & Bare Leads, AC Wall Adapter, or Power Supply,Surge Supressor). (Many more configurations available, please call us for all options)..
    Item on backorder — chat for lead time
    Discontinued Need Assistance?
  • DLI 9200F-XE1101 Data Terminal

    DLI 9200F-XE1101 Data Terminal
    Intel Atom Dual Core 1.80Ghz CPU, 15" 1024 x 768, Wide View Angle 500NIT LCD, Indoor Resitive Touch Screen, 2-USB, 2-RS232, 1-10/100/1000 Ethernet, 802.11a/b/g, Internal Battery, 10-75VDC, Power Cable, 3 Prong Locking Connector, 12" W/10A Fuse with (Bare Leads), RAM 202U mounting ball, MS Windows XP Pro (Windows 7 Pro Downgrade), 32GB SSD, 3GB RAM, Bluetooth, No WWAN and GPS
    Item on backorder — chat for lead time
    Discontinued Need Assistance?
  • DLI 9200C-7E1101 Data Terminal

    DLI 9200C-7E1101 Data Terminal
    Intel Atom Dual Core 1.80Ghz CPU, 12.1" 1024 x 768, Wide View Angle 500NIT LCD, Outdoor Resitive Touch Screen, 2-USB, 1-RS232, 1-VGA, 1-10/100/1000 Ethernet, 802.11a/b/g, Internal Battery, 10-75VDC, Power Cable, 3 Prong Locking Connector, 12" W/10A Fuse with (Bare Leads), RAM 202U mounting ball, MS Windows 7 Pro, 32GB SSD, 3GB RAM, Bluetooth, No WWAN and GPS
    Item on backorder — chat for lead time
    Discontinued Need Assistance?
  • DLI 9200G-XE1101 Data Terminal

    DLI 9200G-XE1101 Data Terminal
    Intel Atom Dual Core 1.80Ghz CPU, 15" 1024 x 768, Wide View Angle 500NIT LCD, Outdoor Resistive Touchscreen, 2-USB, 1-RS232, 1-VGA, 1-10/100/1000 Ethernet, 802.11a/b/g, Internal Battery, 10-75VDC, Power Cable, 3 Prong Locking Connector, 12' W/10A Fuse with (Bare Leads), RAM 202U mounting ball, MS Windows XP Pro (Windows 7 Pro Downgrade), 32GB SSD, 3GB RAM, Bluetooth, No WWAN and GPS
    Item on backorder — chat for lead time
    Discontinued Need Assistance?
  • DLI 9200G-XE1121 Data Terminal

    DLI 9200G-XE1121 Data Terminal
    Intel Atom Dual Core 1.80Ghz CPU, 15" 1024 x 768, Wide View Angle 500NIT LCD, Outdoor Resistive Touchscreen, 2-USB, 1-RS232, 1-VGA, 1-10/100/1000 Ethernet, 802.11a/b/g, Internal Battery, 10-75VDC, Power Cable, 3 Prong Locking Connector, 12' W/10A Fuse with (Bare Leads), RAM 202U mounting ball, MS Windows XP Pro (Windows 7 Pro Downgrade), 32GB SSD, 3GB RAM, Bluetooth, WWAN (AT&T/T-Mobile: GPRS/EDGE) and GPS
    Item on backorder — chat for lead time
    Discontinued Need Assistance?
Full specifications (PDF)

DLI 9200 Data Terminal Model Overview

The DLI 9200 is a rugged vehicle-mount data terminal designed for demanding warehouses, plants, and field fleets. Powered by an Intel Atom dual-core 1.80 GHz processor with HDD or SSD storage and up to 3 GB of RAM, it runs full Windows or Linux applications at the edge. Choose a 12.1-inch or 15-inch outdoor-readable touchscreen (500 nit) with industrial resistive touch for reliable input in gloves. Integrated power filtering (10–60 V DC) and an on-board backup battery keep the terminal running through cranks and brownouts, while sealed I/O and IP54 protection withstand dust, water spray, vibration, shock, and extreme temperatures. With Wi-Fi, optional WWAN, Bluetooth, and GPS, the 9200 keeps operators connected from forklift to yard gate.


Key features:
  • 12.1-inch or 15-inch 1024 x 768 LCD, 500 nit, outdoor-readable resistive touchscreen
  • Intel Atom D525 dual-core 1.80 GHz with HDD or SSD options and up to 3 GB DDR2
  • Integrated power-filtering DC converter (10–60 V) plus onboard 2800 mAh backup battery
  • Rugged design: IP54 sealing, MIL-STD-810 vibration, wide operating temperatures
  • Enterprise connectivity: Gigabit Ethernet, 802.11a/b/g/n Wi-Fi, and GPS

Specifications:
  • Processor/Chipset: Intel Atom D525 1.80 GHz dual-core; Intel ICH8; 1 MB L2 cache
  • Memory: Up to 3 GB DDR2 SODIMM 667 MHz
  • Storage: 1.8" SATA HDD 120 GB or 240 GB (shock-mounted); SSD 8/16/32/64 GB (TRIM support)
  • Display: 12.1" or 15" LCD, 1024 x 768, 500 nit LED backlight, 400:1 contrast
  • Touchscreen: Resistive (standard or polarized), rated 3 million touches at a single point
  • Graphics/Audio: Intel GM3150; dual speakers; 3.5 mm mic/headset jack
  • Operating Systems: Windows 7, Windows Embedded Standard 7/2009, Vista Business, XP Pro, Linux 2.6 (Ubuntu)
  • I/O Ports (sealed locking connectors): 2 x USB 2.0; 1 x RS-232 (optional); 1 x VGA (optional); 1 x 10/100/1000 Ethernet
  • Keys: 6 user-programmable function keys
  • Wireless: Wi-Fi 802.11a/b/g/n (Cisco CCX4); optional WWAN (GPRS/CDMA; external antenna); Bluetooth Class 2; GPS (SiRFstarIII, ext. antenna)
  • Power: 10–60 V DC input with power-filtering converter; integrated 2800 mAh Li-ion backup (approx. 1.5 hr at level-5 brightness); 90 W AC adapter (110/220 VAC)
  • Rugged Ratings: IP54; vibration 5–500 Hz 1G (MIL-STD-810F 514.5C-3); shock 20G (operating)/40G (non-operating)/75G crash, 11 ms
  • Environmental: Operating −4 to 122 °F (−20 to 50 °C); Storage −7 to 149 °F (−22 to 65 °C)
  • Dimensions: 12.1" model: H 11.18" x W 12.24" x D 2.05"; 15" model: H 13.31" x W 15.11" x D 2.17"
  • Weight: 12.1" model: 9 lb; 15" model: 13 lb
  • Enclosure: Impact-resistant metal; IP54
  • Certifications: FCC Class B, CE
  • Accessories: RAM mount, rugged USB keyboard (IP64), external cellular/GPS/Wi-Fi antennas, keyboard mounting bracket
  • Warranty: Standard 1-year; optional No-Fault service coverage
