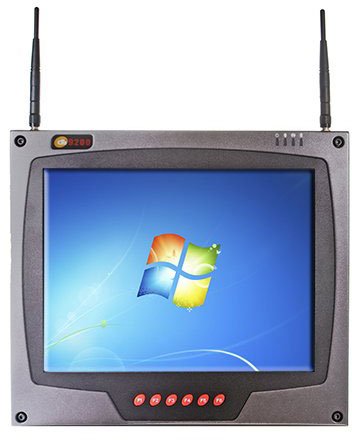

The DLI 9200 is a rugged vehicle-mount data terminal designed for demanding warehouses, plants, and field fleets. Powered by an Intel Atom dual-core 1.80 GHz processor with HDD or SSD storage and up to 3 GB of RAM, it runs full Windows or Linux applications at the edge. Choose a 12.1-inch or 15-inch outdoor-readable touchscreen (500 nit) with industrial resistive touch for reliable input in gloves. Integrated power filtering (10–60 V DC) and an on-board backup battery keep the terminal running through cranks and brownouts, while sealed I/O and IP54 protection withstand dust, water spray, vibration, shock, and extreme temperatures. With Wi-Fi, optional WWAN, Bluetooth, and GPS, the 9200 keeps operators connected from forklift to yard gate.
Key features:
- 12.1-inch or 15-inch 1024 x 768 LCD, 500 nit, outdoor-readable resistive touchscreen
- Intel Atom D525 dual-core 1.80 GHz with HDD or SSD options and up to 3 GB DDR2
- Integrated power-filtering DC converter (10–60 V) plus onboard 2800 mAh backup battery
- Rugged design: IP54 sealing, MIL-STD-810 vibration, wide operating temperatures
- Enterprise connectivity: Gigabit Ethernet, 802.11a/b/g/n Wi-Fi, and GPS
Specifications:
- Processor/Chipset: Intel Atom D525 1.80 GHz dual-core; Intel ICH8; 1 MB L2 cache
- Memory: Up to 3 GB DDR2 SODIMM 667 MHz
- Storage: 1.8" SATA HDD 120 GB or 240 GB (shock-mounted); SSD 8/16/32/64 GB (TRIM support)
- Display: 12.1" or 15" LCD, 1024 x 768, 500 nit LED backlight, 400:1 contrast
- Touchscreen: Resistive (standard or polarized), rated 3 million touches at a single point
- Graphics/Audio: Intel GM3150; dual speakers; 3.5 mm mic/headset jack
- Operating Systems: Windows 7, Windows Embedded Standard 7/2009, Vista Business, XP Pro, Linux 2.6 (Ubuntu)
- I/O Ports (sealed locking connectors): 2 x USB 2.0; 1 x RS-232 (optional); 1 x VGA (optional); 1 x 10/100/1000 Ethernet
- Keys: 6 user-programmable function keys
- Wireless: Wi-Fi 802.11a/b/g/n (Cisco CCX4); optional WWAN (GPRS/CDMA; external antenna); Bluetooth Class 2; GPS (SiRFstarIII, ext. antenna)
- Power: 10–60 V DC input with power-filtering converter; integrated 2800 mAh Li-ion backup (approx. 1.5 hr at level-5 brightness); 90 W AC adapter (110/220 VAC)
- Rugged Ratings: IP54; vibration 5–500 Hz 1G (MIL-STD-810F 514.5C-3); shock 20G (operating)/40G (non-operating)/75G crash, 11 ms
- Environmental: Operating −4 to 122 °F (−20 to 50 °C); Storage −7 to 149 °F (−22 to 65 °C)
- Dimensions: 12.1" model: H 11.18" x W 12.24" x D 2.05"; 15" model: H 13.31" x W 15.11" x D 2.17"
- Weight: 12.1" model: 9 lb; 15" model: 13 lb
- Enclosure: Impact-resistant metal; IP54
- Certifications: FCC Class B, CE
- Accessories: RAM mount, rugged USB keyboard (IP64), external cellular/GPS/Wi-Fi antennas, keyboard mounting bracket
- Warranty: Standard 1-year; optional No-Fault service coverage

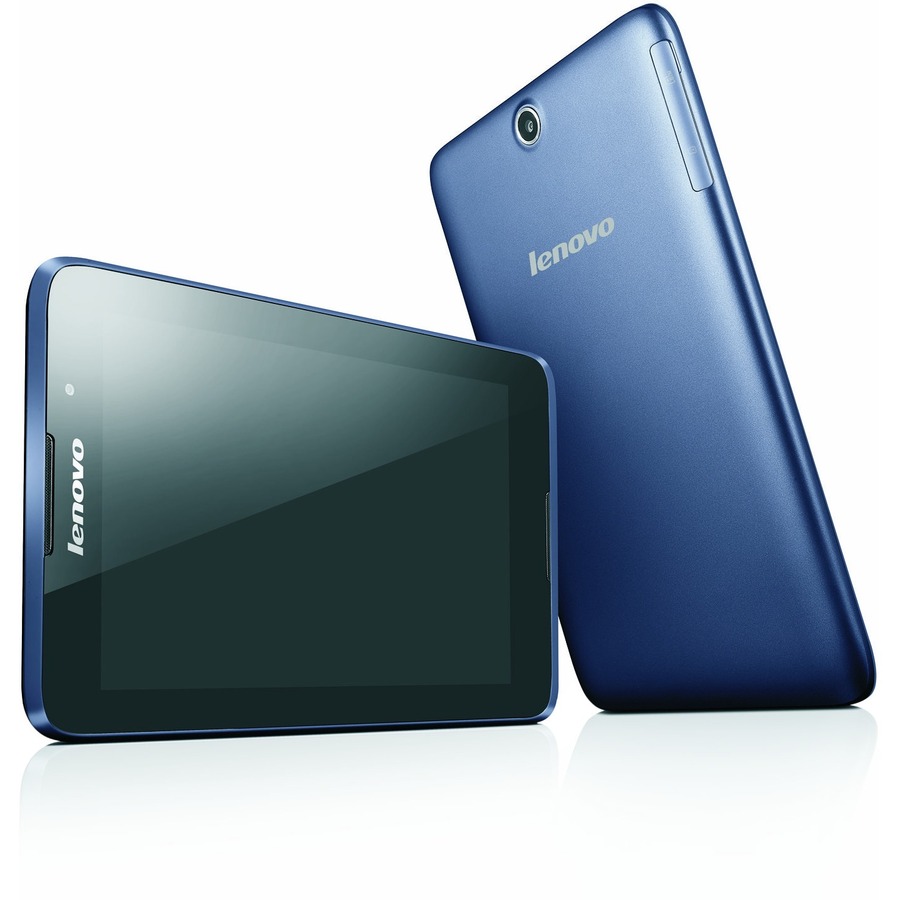

17.78CM (7) WIDEVIEW ANDROID TABLET
Lenovo A7-50 is the Android tablet for browsing, reading and viewing. Its 17.78cm (7) wideview IPS display is clear and colorful and lets your friends share in the fun. Quad core processing keeps everything smooth and stutter free, while the A7-50's light weight and slim design means you can take it anywhere.
Enjoy Voice Calling
The Lenovo A7-50 comes with SIM support for Voice Calling. Use it like a tablet or a regular phone.
Wideview IPS Display
The A7-50's HD display offers a clear and colorful viewing experience whether indoors or outside. The in-plane switching (IPS) screen delivers a wide viewing angle, perfect for sharing content with friends in groups.
Quad Core Processing
Quad core processing enables better multitasking, delivers a smoother Android experience and eliminates stutter when playing games or HD video.
Dual Cameras
The A7-50 takes great photos with the 5 megapixel rear camera, and super selfies with the 2 megapixel front camera, which is also great for web chat with your friends.
Satellite GPS and Optional 3G
Never get lost with built in satellite GPS that works offline, and you can get optional 3G wireless support through a SIM card slot.
Lenovo DOit Apps
Lenovo's new DOit series of apps let you and your device do more including sharing data with other Android devices without requiring a network, preventing viruses and malware, and backing up your contacts and sms log.
Complete Connectivity

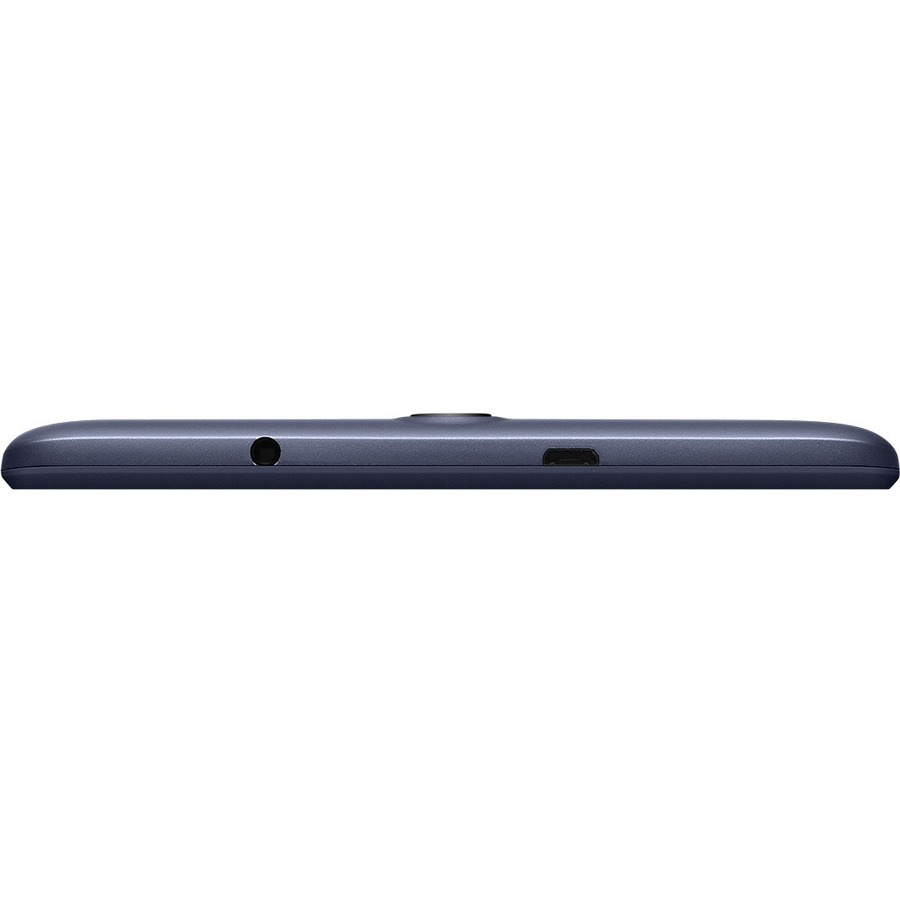

Micro USB for charging and connecting peripherals, plus a micro SD card slot for convenience and easy storage expandability.
Pocket Size Comfort
At less than 10mm thin and only weighing 320g the A7-50 is a perfect size for reading, listening to music, and web-surfing - and it can easily slide into a pocket when not in use.
Full specifications (PDF)
