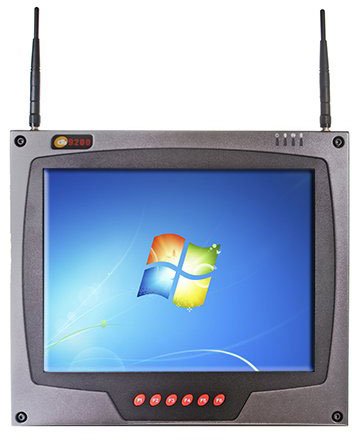

DLI 9200G-XE1121 Data Terminal
DLI 9200 Data Terminal Model Overview
The DLI 9200 is a rugged vehicle-mount data terminal designed for demanding warehouses, plants, and field fleets. Powered by an Intel Atom dual-core 1.80 GHz processor with HDD or SSD storage and up to 3 GB of RAM, it runs full Windows or Linux applications at the edge. Choose a 12.1-inch or 15-inch outdoor-readable touchscreen (500 nit) with industrial resistive touch for reliable input in gloves. Integrated power filtering (10–60 V DC) and an on-board backup battery keep the terminal running through cranks and brownouts, while sealed I/O and IP54 protection withstand dust, water spray, vibration, shock, and extreme temperatures. With Wi-Fi, optional WWAN, Bluetooth, and GPS, the 9200 keeps operators connected from forklift to yard gate.
Key features:
- 12.1-inch or 15-inch 1024 x 768 LCD, 500 nit, outdoor-readable resistive touchscreen
- Intel Atom D525 dual-core 1.80 GHz with HDD or SSD options and up to 3 GB DDR2
- Integrated power-filtering DC converter (10–60 V) plus onboard 2800 mAh backup battery
- Rugged design: IP54 sealing, MIL-STD-810 vibration, wide operating temperatures
- Enterprise connectivity: Gigabit Ethernet, 802.11a/b/g/n Wi-Fi, and GPS
Specifications:
- Processor/Chipset: Intel Atom D525 1.80 GHz dual-core; Intel ICH8; 1 MB L2 cache
- Memory: Up to 3 GB DDR2 SODIMM 667 MHz
- Storage: 1.8" SATA HDD 120 GB or 240 GB (shock-mounted); SSD 8/16/32/64 GB (TRIM support)
- Display: 12.1" or 15" LCD, 1024 x 768, 500 nit LED backlight, 400:1 contrast
- Touchscreen: Resistive (standard or polarized), rated 3 million touches at a single point
- Graphics/Audio: Intel GM3150; dual speakers; 3.5 mm mic/headset jack
- Operating Systems: Windows 7, Windows Embedded Standard 7/2009, Vista Business, XP Pro, Linux 2.6 (Ubuntu)
- I/O Ports (sealed locking connectors): 2 x USB 2.0; 1 x RS-232 (optional); 1 x VGA (optional); 1 x 10/100/1000 Ethernet
- Keys: 6 user-programmable function keys
- Wireless: Wi-Fi 802.11a/b/g/n (Cisco CCX4); optional WWAN (GPRS/CDMA; external antenna); Bluetooth Class 2; GPS (SiRFstarIII, ext. antenna)
- Power: 10–60 V DC input with power-filtering converter; integrated 2800 mAh Li-ion backup (approx. 1.5 hr at level-5 brightness); 90 W AC adapter (110/220 VAC)
- Rugged Ratings: IP54; vibration 5–500 Hz 1G (MIL-STD-810F 514.5C-3); shock 20G (operating)/40G (non-operating)/75G crash, 11 ms
- Environmental: Operating −4 to 122 °F (−20 to 50 °C); Storage −7 to 149 °F (−22 to 65 °C)
- Dimensions: 12.1" model: H 11.18" x W 12.24" x D 2.05"; 15" model: H 13.31" x W 15.11" x D 2.17"
- Weight: 12.1" model: 9 lb; 15" model: 13 lb
- Enclosure: Impact-resistant metal; IP54
- Certifications: FCC Class B, CE
- Accessories: RAM mount, rugged USB keyboard (IP64), external cellular/GPS/Wi-Fi antennas, keyboard mounting bracket
- Warranty: Standard 1-year; optional No-Fault service coverage
