Datalogic Heron HD3430 Barcode Scanner Model Overview
The Zebra AN440 RFID Antenna is your ultimate solution for high-performance tracking in demanding environments. Designed to cover large areas, this rugged antenna excels in both indoor and outdoor settings, offering unmatched reliability in high-density asset management. It provides wide read fields and fast RF signal conversion, ensuring that inventory counts are accurate and workflow remains uninterrupted. With easy mounting options for ceilings and walls, and its sleek white housing, the AN440 is perfectly suited for stockrooms, doorways, and other dynamic locations. Key Features
Dual-element architecture for bi-static operation
Functions as two separate mono-static antennas
Rugged design suitable for industrial applications
High-speed data capture even in RF-challenging environments
Easy mounting on ceilings and walls
Specifications
Dimensions: 22.6 inches L x 10.2 inches W x 1.32 inches D (575.1 mm L x 259.1 mm W x 33.52 mm D)
Weight: 4.2 lbs (1.9 kg)
Frequency Range: 902 - 928 MHz
Environmental Rating: IP-67, RoHS Compliant
Operating Temperatures: -40°F to +185°F (-40°C to +85°C)
Warranty: 1 year from date of shipment
Max Power: 10 W
Polarization: 1 x LHCP / 1 x RHCP
Vibration Resistance: MIL-Std 810G, METHOD 507.5
Datalogic HD3430-WH Barcode Scanner Overview
PERFORMANCE WITHOUT COMPROMISE
The Heron HD3430 2D area imager brings unmatched elegance along with the latest advanced 2D reading technology to the modern point-of-sale. The stylish silhouette of the new 2D area imager enriched with multiple color changing lights, innovative and modern design material, together with the audio speaker, amplifies the customer's brand experience at the point-of-sale.
NOW WITH 2D AND IMAGE CAPTURE
The Heron HD3430 2D area imager provides outstanding reading performance on 1D and 2D codes as well as image capture capabilities. Featuring the market's most efficient aiming and illumination systems, the Heron HD3430 2D area imager guarantees the operator's best suitability combined with an outstanding all-codes reading capability.
BEAUTY AND BRAND IDENTITY

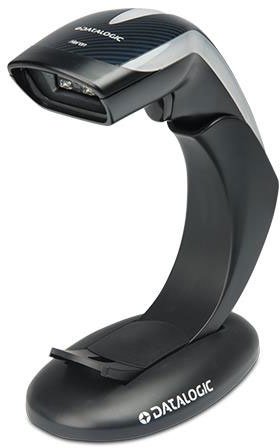

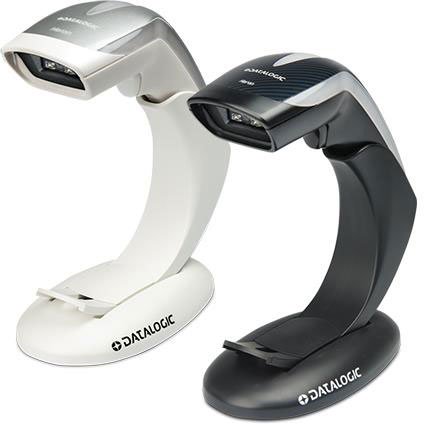

The Heron HD3430 2D area imager differs from the usual color scheme of handheld devices by providing a stunning 'black' or 'white' color option, emphasizing the curving lines of the new enclosure. Additionally, the Heron imager features in-mold decorated top covers with a choice of 'Carbon Fiber' or 'Silver' design. This imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer's brand.
The HD3430 2D area imager is a fusion of the features your business needs, the fashionable style customers will love, the enticing allure of light and sound now with a full 2D reading capability.
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What barcode types can the Datalogic HD3430-WH scanner read?
The HD3430-WH is a 2D area imager that reads both 1D linear codes (including GS1 DataBar) and 2D codes such as QR Code, Data Matrix, Aztec Code, and MaxiCode. It also supports postal codes and stacked codes like PDF417 and GS1 DataBar Composites, making it ideal for versatile point-of-sale environments. We offer this scanner for businesses requiring comprehensive barcode decoding capabilities.
Is the Datalogic HD3430-WH durable enough for warehouse and logistics environments?
Yes, the HD3430-WH is built for durability with IP40 particulate and water sealing, and it withstands repeated drops from 1.5 meters (5 feet) onto concrete surfaces. It also features 16 kV ESD protection and operates reliably in temperatures from 0 to 50°C with humidity levels up to 90% non-condensing. Contact us today to discuss deployment in your warehouse or logistics operation.
What connectivity options does the HD3430-WH provide?
The HD3430-WH offers multi-interface connectivity with RS-232, USB, and Keyboard Wedge options, allowing flexible integration with existing point-of-sale and warehouse management systems. This versatility makes it easy to connect to various terminals and computers without requiring specialized adapters. Visit barcodesinc.com to confirm compatibility with your specific system configuration.
What is the reading performance and speed of the Datalogic HD3430-WH?
The HD3430-WH delivers a maximum read rate of 270 reads per second with a CCD solid-state imager featuring 2500 pixels and 0.100 mm (4 mils) maximum resolution. It maintains a minimum print contrast ratio of 15%, ensuring reliable scanning of standard and degraded barcodes. The scanner includes adjustable beeper feedback and Datalogic's 'Green Spot' good read indicator for operator confirmation.
What power requirements does the HD3430-WH have?
The HD3430-WH requires 5 VDC +/- 5% input voltage with typical operating current of less than 300 mA at 5V and maximum operating current under 500 mA. In sleep mode, it draws less than 2.5 mA, making it energy-efficient for continuous point-of-sale operations. We offer this scanner as part of our complete AIDC solutions available from barcodesinc.com.
What colors and design options are available for the HD3430-WH?

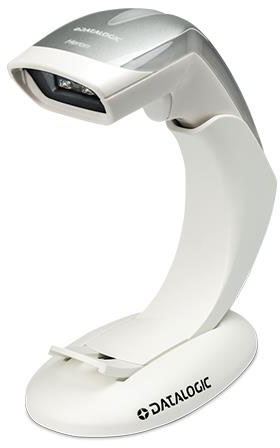

The HD3430-WH comes standard in white with a modern, stylish design featuring multiple color-changing lights and an integrated audio speaker to enhance the customer brand experience at point-of-sale. The scanner is also available in black, and custom colors and logo options are available for minimum quantity purchases. Contact us today to explore customization options that match your brand requirements.
The Datalogic HD3430-WH Barcode Scanner is also known as
DTL-HD3430WH
or HD3430WH.
