Datalogic Heron HD3430 Barcode Scanner Model Overview
The Zebra AN440 RFID Antenna is your ultimate solution for high-performance tracking in demanding environments. Designed to cover large areas, this rugged antenna excels in both indoor and outdoor settings, offering unmatched reliability in high-density asset management. It provides wide read fields and fast RF signal conversion, ensuring that inventory counts are accurate and workflow remains uninterrupted. With easy mounting options for ceilings and walls, and its sleek white housing, the AN440 is perfectly suited for stockrooms, doorways, and other dynamic locations. Key Features
Dual-element architecture for bi-static operation
Functions as two separate mono-static antennas
Rugged design suitable for industrial applications
High-speed data capture even in RF-challenging environments
Easy mounting on ceilings and walls
Specifications
Dimensions: 22.6 inches L x 10.2 inches W x 1.32 inches D (575.1 mm L x 259.1 mm W x 33.52 mm D)
Weight: 4.2 lbs (1.9 kg)
Frequency Range: 902 - 928 MHz
Environmental Rating: IP-67, RoHS Compliant
Operating Temperatures: -40°F to +185°F (-40°C to +85°C)
Warranty: 1 year from date of shipment
Max Power: 10 W
Polarization: 1 x LHCP / 1 x RHCP
Vibration Resistance: MIL-Std 810G, METHOD 507.5

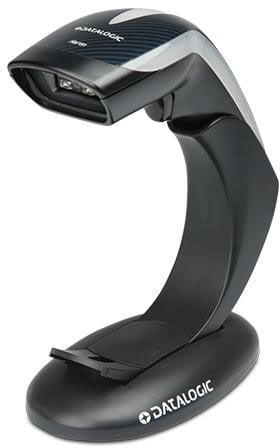

Datalogic HD3430-BK Barcode Scanner Overview
PERFORMANCE WITHOUT COMPROMISE
The Heron HD3430 2D area imager brings unmatched elegance along with the latest advanced 2D reading technology to the modern point-of-sale. The stylish silhouette of the new 2D area imager enriched with multiple color changing lights, innovative and modern design material, together with the audio speaker, amplifies the customer's brand experience at the point-of-sale.
NOW WITH 2D AND IMAGE CAPTURE
The Heron HD3430 2D area imager provides outstanding reading performance on 1D and 2D codes as well as image capture capabilities. Featuring the market's most efficient aiming and illumination systems, the Heron HD3430 2D area imager guarantees the operator's best suitability combined with an outstanding all-codes reading capability.
BEAUTY AND BRAND IDENTITY
The Heron HD3430 2D area imager differs from the usual color scheme of handheld devices by providing a stunning 'black' or 'white' color option, emphasizing the curving lines of the new enclosure. Additionally, the Heron imager features in-mold decorated top covers with a choice of 'Carbon Fiber' or 'Silver' design. This imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer's brand.
The HD3430 2D area imager is a fusion of the features your business needs, the fashionable style customers will love, the enticing allure of light and sound now with a full 2D reading capability.
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What barcode types can the Datalogic HD3430 scanner read?
The HD3430 is a 2D area imager that reads both 1D linear codes (including GS1 DataBar) and 2D codes such as QR Code, Data Matrix, Aztec Code, and MaxiCode. It also supports postal codes from multiple countries and stacked codes like PDF417 and GS1 DataBar Composites, making it ideal for diverse retail and warehouse applications. We offer this scanner as a versatile solution for modern point-of-sale environments.
Is the Datalogic HD3430 durable enough for warehouse environments?
Yes, the HD3430 is built for demanding environments with IP40 particulate and water sealing, 16 kV ESD protection, and the ability to withstand repeated drops from 1.5 meters (5 feet) onto concrete. It operates reliably across a wide ambient light range of 0 to 100,000 lux and maintains performance in temperatures from 0 to 50°C (32 to 122°F). We stock this scanner specifically for logistics and warehouse operations requiring rugged, dependable equipment.
What connectivity options does the HD3430 barcode scanner offer?
The HD3430 features a multi-interface design supporting RS-232, USB, and Keyboard Wedge connections, allowing flexible integration with existing POS and warehouse management systems. This corded design ensures stable, continuous power and data transmission without battery concerns. Contact us today to confirm compatibility with your specific system requirements.
How fast can the HD3430 read barcodes?
The HD3430 delivers a maximum read rate of 270 reads per second with a CCD solid-state imager featuring 2500 pixels and 0.100 mm (4 mils) maximum resolution. This high-speed performance, combined with the Datalogic 'Green Spot' good read feedback and adjustable beeper, ensures rapid, reliable scanning in fast-paced retail and logistics environments. We offer this scanner for operations requiring quick throughput without sacrificing accuracy.
What are the power requirements for the Datalogic HD3430?
The HD3430 requires 5 VDC +/- 5% input voltage with typical operating current of less than 300 mA and maximum operating current of less than 500 mA. Sleep mode draws less than 2.5 mA, making it energy-efficient for continuous warehouse operations. Visit barcodesinc.com for cable and power supply options compatible with your infrastructure.
What makes the HD3430 different from older Datalogic scanner models?
The HD3430 is the newer 2D area imager in Datalogic's Heron line, featuring advanced 2D reading technology, modern design materials, color-changing lights, and an audio speaker for enhanced brand experience at the point-of-sale. Unlike earlier 1D-only models, the HD3430's 2D capability enables reading of QR codes and modern composite codes essential for modern supply chains. We offer the HD3430 as the current standard for businesses requiring comprehensive barcode reading capabilities.
The Datalogic HD3430-BK Barcode Scanner is also known as
DTL-HD3430BK
or HD3430BK.
Full specifications (PDF)
