Datalogic Heron HD3430 Barcode Scanner Model Overview
The Zebra AN440 RFID Antenna is your ultimate solution for high-performance tracking in demanding environments. Designed to cover large areas, this rugged antenna excels in both indoor and outdoor settings, offering unmatched reliability in high-density asset management. It provides wide read fields and fast RF signal conversion, ensuring that inventory counts are accurate and workflow remains uninterrupted. With easy mounting options for ceilings and walls, and its sleek white housing, the AN440 is perfectly suited for stockrooms, doorways, and other dynamic locations. Key Features
Dual-element architecture for bi-static operation
Functions as two separate mono-static antennas
Rugged design suitable for industrial applications
High-speed data capture even in RF-challenging environments
Easy mounting on ceilings and walls
Specifications
Dimensions: 22.6 inches L x 10.2 inches W x 1.32 inches D (575.1 mm L x 259.1 mm W x 33.52 mm D)
Weight: 4.2 lbs (1.9 kg)
Frequency Range: 902 - 928 MHz
Environmental Rating: IP-67, RoHS Compliant
Operating Temperatures: -40°F to +185°F (-40°C to +85°C)
Warranty: 1 year from date of shipment
Max Power: 10 W
Polarization: 1 x LHCP / 1 x RHCP
Vibration Resistance: MIL-Std 810G, METHOD 507.5

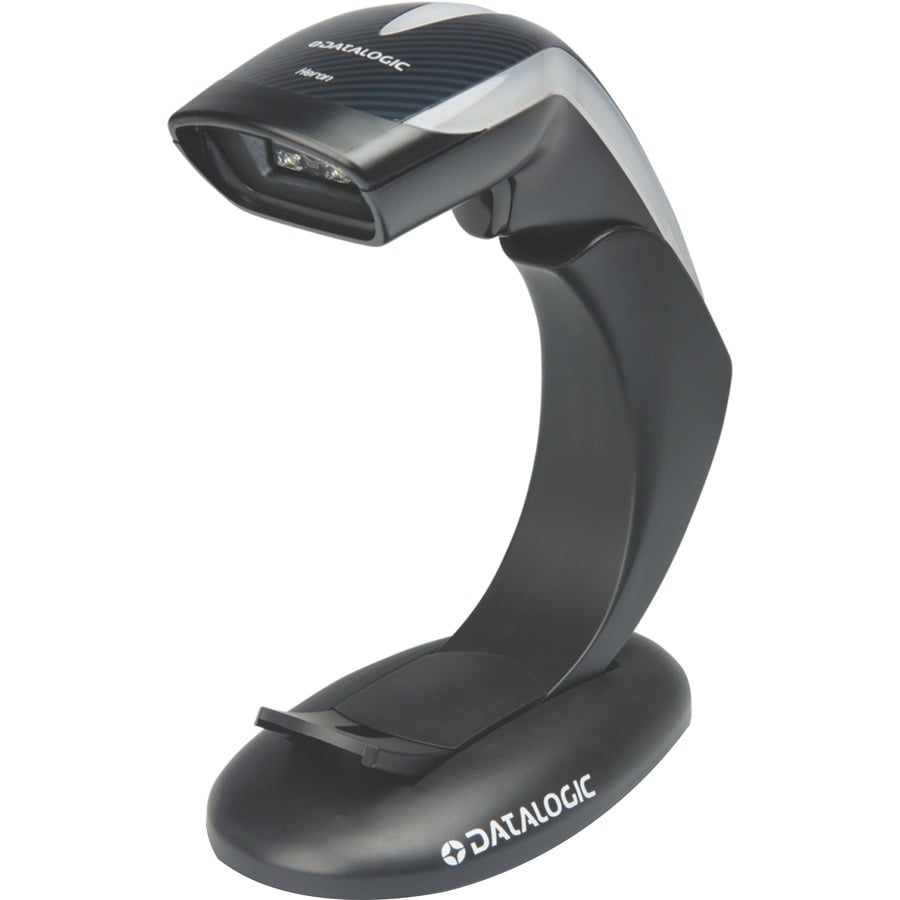

Datalogic HD3430-BKK1S Barcode Scanner Overview
Datalogic is pleased to announce the release of the Heron™ HD3430 2D area imager with unmatched elegance and advanced technology for the modern point-of-sale.

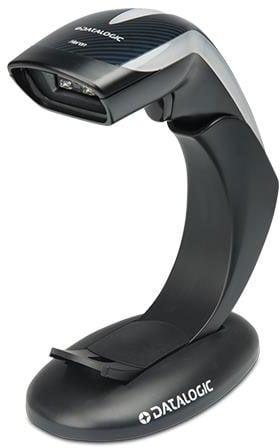

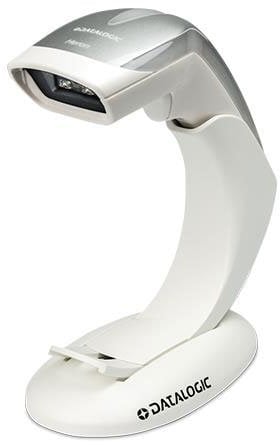

The Heron HD3430 2D imager provides a stunning black 'carbon-fiber' look or a white 'silver' color option, emphasizing the curving lines of the Heron's enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer's brand.
FEATURES
Outstanding reading performance on 1D, 2D, postal codes, stacked, composite codes and Image capture
Multiple changing color LEDs on sides and top
Top of the market illumination and aiming system
Polyphonic speaker for a wide variety of choices regarding audio feedback
Datalogic's patented 'Green Spot' technology for good-read feedback
Automatic switching between handheld and hands-free operations
APPLICATIONS
Non-food specialty stores such as Fashion Clothes, Cosmetics, Jewelry, Perfume, etc.
Duty-free and Airport stores
Commercial Services: Banks, Insurance Companies and Utilities
The Heron HD3430 2D area imager completes the Heron family offering by adding 2D reading capability to the existing Heron readers and providing customers with an unmatched choice regarding price and bar code reading needs.
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
What barcode types does the Datalogic HD3430 scanner read?
The Datalogic HD3430 is a 2D area imager that reads both 1D linear codes (including GS1 DataBar) and 2D codes such as QR Code, Data Matrix, Aztec Code, and MaxiCode. It also supports postal codes and stacked codes like PDF417 and GS1 DataBar Composites, making it ideal for diverse retail and warehouse applications. We offer this scanner as a complete kit with the Autosense Flex Stand and USB cable for immediate deployment.
Is the HD3430 barcode scanner durable for warehouse environments?
Yes, the HD3430 is built for demanding environments with IP40 particulate and water sealing, 16 kV ESD protection, and the ability to withstand repeated drops from 1.5 meters (5 feet) onto concrete. It operates reliably in temperatures from 0 to 50°C and humidity levels up to 90%, making it suitable for warehouse, retail, and logistics operations. Contact us today to discuss your specific environmental requirements.
What connectivity options does the Datalogic HD3430 offer?
The HD3430 features multi-interface connectivity including USB, RS-232, and Keyboard Wedge options, allowing flexible integration with your existing POS or warehouse management systems. The corded design with included USB cable ensures stable, continuous power and data transmission without battery concerns. Visit barcodesinc.com to explore configuration options that match your IT infrastructure.
What's included in the Datalogic HD3430 kit?
The HD3430-BKK1S kit includes the 2D area imager scanner, the Autosense Flex Stand for hands-free operation, and a USB cable—everything needed for immediate deployment at point-of-sale or warehouse stations. The Autosense stand automatically detects when a barcode enters the scanner's field of view, improving workflow efficiency. We offer this complete kit to minimize setup time and additional purchasing.
How fast can the HD3430 scanner read barcodes?
The Datalogic HD3430 achieves a maximum read rate of 270 reads per second with a resolution capability of 0.100 mm (4 mils), enabling rapid scanning of even small or damaged barcodes. The scanner features adjustable beeper tone and volume plus Datalogic's 'Green Spot' good read feedback to confirm successful scans instantly. This performance level supports high-volume retail and logistics environments where scanning speed directly impacts throughput.
What power requirements does the HD3430 have?
The HD3430 operates on 5 VDC (+/- 5%) with typical power consumption of 300 mA and maximum consumption of 500 mA during operation, plus less than 2.5 mA in sleep mode. The corded USB connection provides both power and data in a single cable, eliminating battery management and ensuring continuous operation. Contact us today to confirm power supply compatibility with your existing infrastructure.
The Datalogic HD3430-BKK1S Barcode Scanner is also known as
DTL-HD3430BKK1S
or HD3430BKK1S.
Full specifications (PDF)
