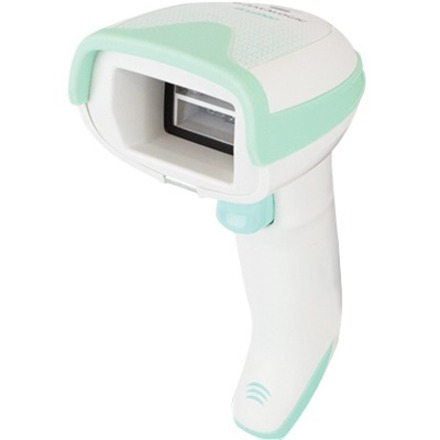

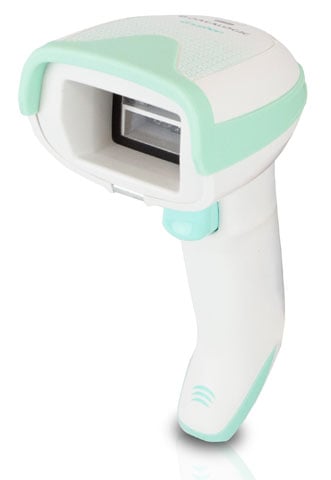

Datalogic Gryphon GM4500 Barcode Scanner Model Overview
The GRYPHON™ I GBT/GM4500 2D scanner by Datalogic is a premium, award-winning wireless scanner designed for general-purpose applications. Featuring state-of-the-art imaging technology with a Megapixel sensor and white-illumination 2D capability, it ensures outstanding performance in any environment. The innovative wireless charging system enhances reliability and reduces maintenance costs, making it a perfect choice for retail, healthcare, and light manufacturing sectors. With its ergonomic design and user-friendly features, including motion-sensing technology and disinfectant-ready enclosures, the Gryphon 4500 promises seamless operation and top-tier productivity.
Key Features
1 MP optics for superior scanning and depth of field
Wireless charging with inductive technology
Datalogic's Motionix™ for automatic mode switching
Omnidirectional reading of 1D and 2D codes
Disinfectant-Ready enclosures for easy cleaning in healthcare settings
Specifications
Dimensions: 16.6 x 6.8 x 10.9 cm
Weight: 235 g
Battery: Lithium-Ion, 3250 mAh
Communication: Bluetooth® 4.0 or Datalogic STAR Cordless
The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
WIRELESS COMMUNICATIONS
Featuring Bluetooth® wireless technology (GBT model) or narrow band radio communications with Datalogic's STAR Cordless System™ (GM model), the Gryphon 4500 wireless readers provide maximum flexibility to solve any end user application with the best technical solution.
WIRELESS CHARGING
One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
SIMPLE TO USE AND DEPLOY
The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.
Datalogic's Motionix™ motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it's charging.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Best Barcode Scanner Purchased With Datalogic GM4500-HC-910-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Bluetooth Barcode Scanner Purchased With Datalogic GM4500-HC-910-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Cables, Connectors, and Adapters Purchased With Datalogic GM4500-HC-910-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Docks and Cradles Purchased With Datalogic GM4500-HC-910-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Imager Barcode Scanner Purchased With Datalogic GM4500-HC-910-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Miscellaneous Purchased With Datalogic GM4500-HC-910-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top QR Barcode Scanner Purchased With Datalogic GM4500-HC-910-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Scanner Accessories Purchased With Datalogic GM4500-HC-910-WLC
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top iPhone, iPad and Android Barcode Scanner Purchased With Datalogic GM4500-HC-910-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
What barcode types can the Datalogic GM4500-HC-910-WLC scanner read?
The GM4500-HC features an omnidirectional 2D imager that reads all common 1D and 2D barcodes, including Code 39, EAN-13, Data Matrix, PDF417, QR codes, and postal codes. It also supports stacked and composite codes, making it ideal for general-purpose warehouse and healthcare applications. We offer this scanner with standard range (SR) or high-density (HD) resolution options to match your specific barcode sizes.
Does the GM4500-HC-910-WLC include wireless charging capability?
Yes, the GM4500-HC features Datalogic's innovative contactless wireless charging system (WLC), which enhances reliability and eliminates wear from traditional charging contacts. The scanner supports Datalogic's patented 2-position cradle with 'Scan-While-Charging' capability, allowing operators to charge the device while continuing to scan. This wireless charging approach is particularly valuable in healthcare environments where disinfection and hygiene are critical concerns.
What connectivity options are available for this cordless barcode scanner?
The GM4500-HC-910-WLC offers two wireless connectivity choices: Datalogic's STAR cordless system operating at 910 MHz, or Bluetooth wireless technology. Both options provide point-to-point and point-to-multipoint transmission with batch mode capability storing over 1,200 codes in memory. Contact us today to determine which connectivity option best fits your warehouse or healthcare network infrastructure.
Is the Datalogic GM4500-HC suitable for healthcare environments?
Yes, the GM4500-HC is specifically designed for healthcare applications with disinfectant-ready enclosures treated with anti-microbial additives (ISO22196 and JISZ 2801 compliant). The scanner includes a vibration feedback option ideal for quiet bedside patient care environments, and its wireless charging system eliminates contact points that could harbor contaminants. We offer this healthcare-certified model to support infection control protocols in hospital and clinical settings.
What is the reading range and motion tolerance of the GM4500-HC?
The GM4500-HC Standard Range model provides reading distances from 7.0 to 58.0 cm (2.7 to 22.8 inches) depending on barcode type and size, with typical depth of field determined by symbol length and scan angle. The scanner features advanced motion tolerance of 35 IPS and omnidirectional reading angles of ±65° pitch and ±65° skew with 360° roll capability. Its highly visible 4-dot aimer with center cross ensures targeted, accurate scanning in fast-paced warehouse environments.
What management and configuration tools are available for the GM4500-HC?
Datalogic provides Aladdin™ configuration software and Remote Host Management software to simplify device deployment and keep scanners synchronized across your enterprise. These tools allow IT teams to remotely manage settings, monitor device health, and maintain consistent configurations across multiple GM4500-HC units in your warehouse or healthcare facility. Visit barcodesinc.com to learn more about our complete support and management solutions.
The Datalogic GM4500-HC-910-WLC Barcode Scanner is also known as
DTL-GM4500HC910WL
or GM4500HC910WLC.
Full specifications (PDF)
