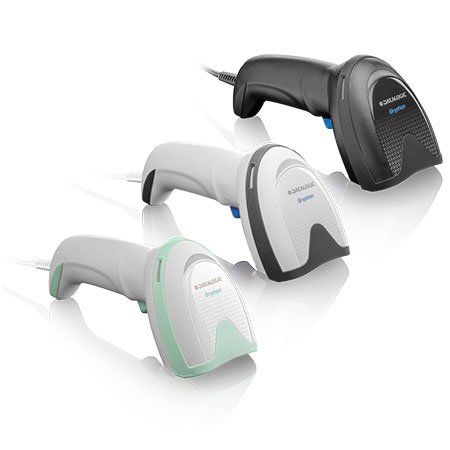

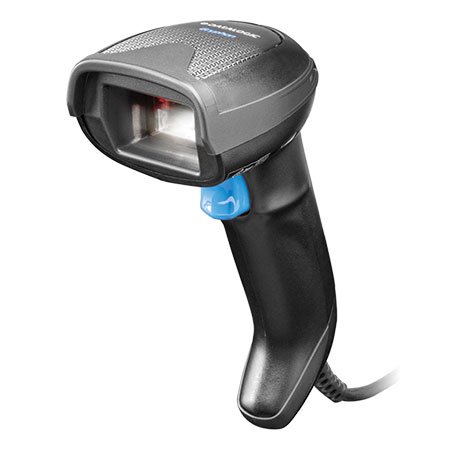

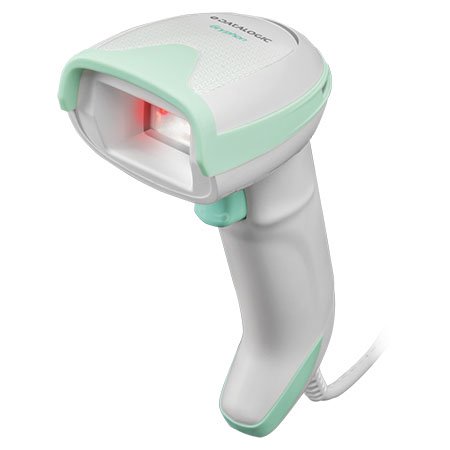

Datalogic Gryphon GD4500 Barcode Scanner Model Overview
The Gryphon™ I GD4500 2D imager from Datalogic is a premium handheld scanner designed for diverse general-purpose applications. Featuring advanced Megapixel sensor technology and an elegant design, this scanner ensures outstanding performance and ergonomic comfort. With its Motionix™ technology, it seamlessly switches between handheld and presentation scanning modes, making it perfect for retail, healthcare, and various commercial environments. Its disinfectant-ready enclosure allows for routine cleaning, meeting the demands of modern working conditions.
Key Features:
1 MP optics for superior scanning and depth of field
Highly visible white-illumination with a precise 4-Dot aimer
Image capture and document scanning functionalities
Specifications:
Decoding Capability: 1D/Linear, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking
Electrical: Operating current: <400 mA @ 5V
Reading Performance: Autodiscriminates all standard 1D codes, Motion Tolerance, Print Contrast Ratio: 15%
Environmental: Operating temperature: 0 to 50 °C / 32 to 122 °F, Humidity: 0-95% non-condensing
Physical Characteristics: Dimensions: 16.6 x 6.8 x 10.9 cm; Weight: 161.0 g
Warranty: 5-Year Factory Warranty

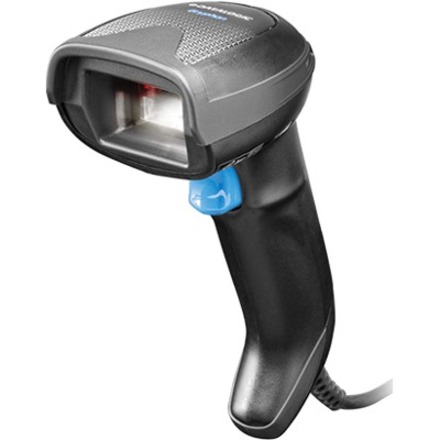

Datalogic GD4590-BK-HD Barcode Scanner Overview
IMAGING TECHNOLOGY
The Gryphon 4500 series represents the premium range of handheld scanners from Datalogic for value added applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
TOP TECHNOLOGIES FOR TODAY'S POS
Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences.
Datalogic distinctive reading technology with highly visible white illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.
SIMPLE TO USE AND DEPLOY
The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking.
For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Best Barcode Scanner Purchased With Datalogic GD4590-BK-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Bluetooth Barcode Scanner Purchased With Datalogic GD4590-BK-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Cables, Connectors, and Adapters Purchased With Datalogic GD4590-BK-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Handheld Barcode Scanner Purchased With Datalogic GD4590-BK-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Headsets Purchased With Datalogic GD4590-BK-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Miscellaneous Purchased With Datalogic GD4590-BK-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top QR Barcode Scanner Purchased With Datalogic GD4590-BK-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Scanner Accessories Purchased With Datalogic GD4590-BK-HD
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top iPhone, iPad and Android Barcode Scanner Purchased With Datalogic GD4590-BK-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
What barcode types does the Datalogic GD4590 scanner read?
The GD4590 reads all standard 1D linear codes including GS1 DataBar codes, plus 2D codes such as QR Code, Data Matrix, Aztec Code, and Micro QR Code. It also decodes postal codes, stacked codes like PDF417 and MicroPDF417, and composite codes. This comprehensive decoding capability makes it ideal for general-purpose warehouse and logistics applications available from us.
Does the GD4590 have motion-sensing technology?
Yes, the GD4590 features Datalogic's Motionix motion-sensing technology, which automatically detects the user's natural actions to switch between handheld and presentation scanning modes. This eliminates the need for manual mode switching and works seamlessly with or without a stand, enhancing operational flexibility in your warehouse environment.
What connectivity options does the GD4590 offer?
The GD4590 provides multi-interface connectivity with RS-232, USB, and Keyboard Wedge (KBW) options, allowing flexible integration into various warehouse management and point-of-sale systems. This multi-interface design ensures compatibility with legacy and modern IT infrastructure, making deployment straightforward across your organization.
Is the GD4590 durable enough for warehouse environments?
Yes, the GD4590 is built for rugged warehouse use with IP52 particulate and water sealing, withstands repeated drops from 1.8 meters (6.0 feet) onto concrete, and features 16 kV ESD protection. It operates reliably in ambient light conditions from 0 to 100,000 lux and temperature ranges from 0 to 50°C, making it suitable for demanding logistics and inventory management applications.
What is the difference between the GD4590 and GD4520 models?
The primary difference is connectivity and power input: the GD4590 offers RS-232/USB/Keyboard Wedge multi-interface with 4.5-14.0 VDC input voltage flexibility, while the GD4520 provides USB-only connectivity with 5 VDC input. The GD4590's broader interface options and wider voltage range make it more versatile for diverse warehouse and logistics environments. Contact us today to determine which model best fits your specific system requirements.
What aiming system does the GD4590 use for precise scanning?
The GD4590 features a 4-Dot aimer with center cross, which provides a highly visible and precise reading zone that reduces accidental reads in multi-barcode environments. The steady, deep red illumination is easier on operators' eyes than flickering alternatives, improving accuracy and user comfort during extended warehouse scanning operations.
The Datalogic GD4590-BK-HD Barcode Scanner is also known as
DTL-GD4590BKHD
or GD4590BKHD.
Full specifications (PDF)
