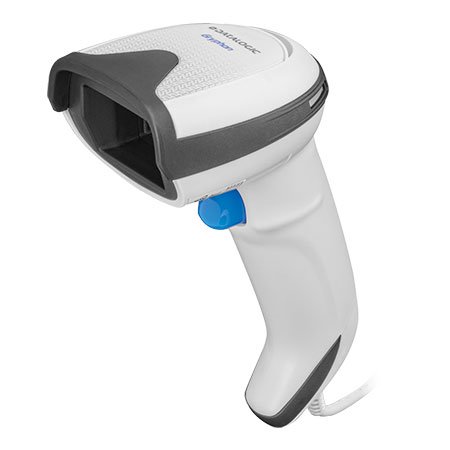

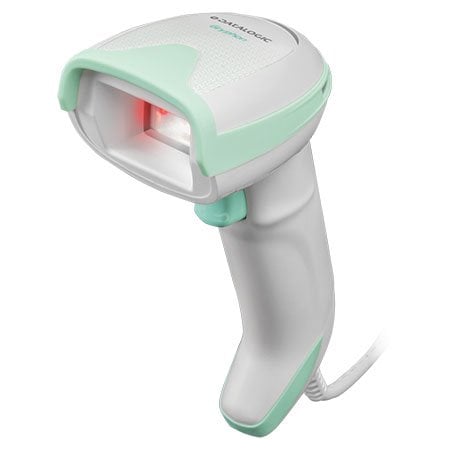

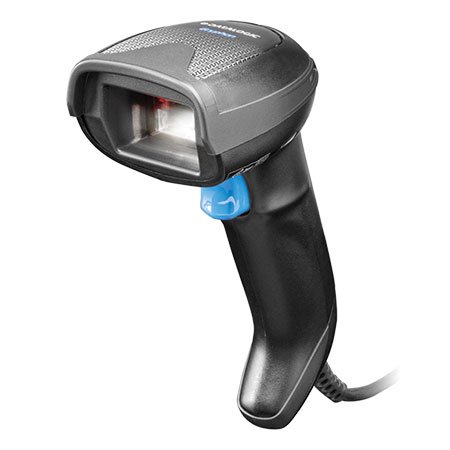

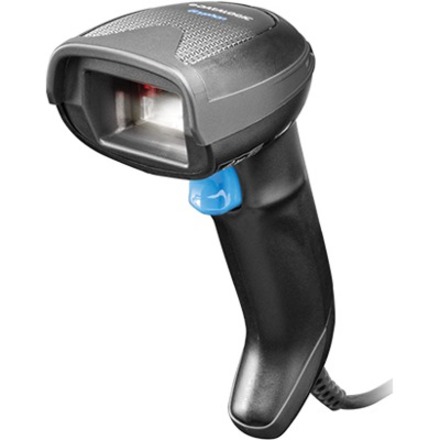

Datalogic Gryphon GD4500 Barcode Scanner Model Overview
The Gryphon™ I GD4500 2D imager from Datalogic is a premium handheld scanner designed for diverse general-purpose applications. Featuring advanced Megapixel sensor technology and an elegant design, this scanner ensures outstanding performance and ergonomic comfort. With its Motionix™ technology, it seamlessly switches between handheld and presentation scanning modes, making it perfect for retail, healthcare, and various commercial environments. Its disinfectant-ready enclosure allows for routine cleaning, meeting the demands of modern working conditions.
Key Features:
1 MP optics for superior scanning and depth of field
Highly visible white-illumination with a precise 4-Dot aimer
Image capture and document scanning functionalities
Specifications:
Decoding Capability: 1D/Linear, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking
Electrical: Operating current: <400 mA @ 5V
Reading Performance: Autodiscriminates all standard 1D codes, Motion Tolerance, Print Contrast Ratio: 15%
Environmental: Operating temperature: 0 to 50 °C / 32 to 122 °F, Humidity: 0-95% non-condensing
Physical Characteristics: Dimensions: 16.6 x 6.8 x 10.9 cm; Weight: 161.0 g
Warranty: 5-Year Factory Warranty
Datalogic GD4590-BK-B Barcode Scanner Overview
IMAGING TECHNOLOGY

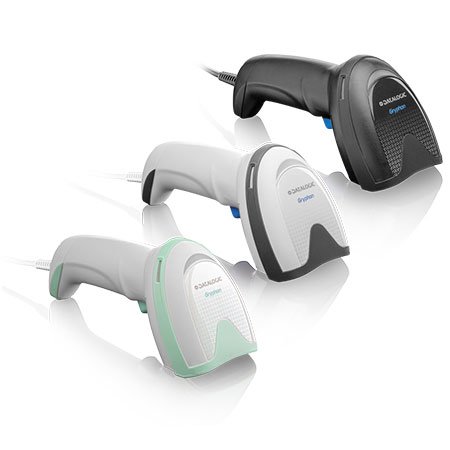

The Gryphon 4500 series represents the premium range of handheld scanners from Datalogic for value added applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
TOP TECHNOLOGIES FOR TODAY'S POS
Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences.
Datalogic distinctive reading technology with highly visible white illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.
SIMPLE TO USE AND DEPLOY
The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking.
For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Best Barcode Scanner Purchased With Datalogic GD4590-BK-B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Bluetooth Barcode Scanner Purchased With Datalogic GD4590-BK-B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Cables, Connectors, and Adapters Purchased With Datalogic GD4590-BK-B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Handheld Barcode Scanner Purchased With Datalogic GD4590-BK-B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Miscellaneous Purchased With Datalogic GD4590-BK-B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top QR Barcode Scanner Purchased With Datalogic GD4590-BK-B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Scanner Accessories Purchased With Datalogic GD4590-BK-B
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top iPhone, iPad and Android Barcode Scanner Purchased With Datalogic GD4590-BK-B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
What barcode types does the Datalogic GD4590 scanner read?
The Datalogic GD4590 reads all standard 1D linear codes including GS1 DataBar codes, plus 2D codes such as QR Code, Data Matrix, Aztec Code, and Micro QR Code. It also decodes postal codes, stacked codes like PDF417 and MicroPDF417, and composite codes including GS1 DataBar Composites. This comprehensive decoding capability makes it ideal for general-purpose warehouse and retail applications available from us.
Does the GD4590 work in both handheld and presentation modes?
Yes, the GD4590 features Datalogic's Motionix motion-sensing technology that automatically detects the natural actions of the operator and switches between handheld and presentation scanning modes without requiring a mechanical switch or scan label. This dual-mode capability makes it versatile for both counter-top and mobile scanning environments.
What connectivity options does the GD4590 offer?
The GD4590 features multi-interface connectivity with RS-232, USB, and Keyboard Wedge (KBW) options, allowing flexible integration with various POS systems, warehouse management systems, and computer environments. This multi-interface design eliminates the need for separate scanners across different installations.
How durable is the GD4590 in warehouse and industrial environments?
The GD4590 withstands repeated drops from 1.8 meters (6.0 feet) onto concrete and features IP52 particulate and water sealing for protection against dust and moisture. It operates reliably in temperatures from 0 to 50°C (32 to 122°F) and maintains performance in ambient light conditions up to 100,000 lux, making it suitable for demanding warehouse and logistics operations.
What is the difference between the GD4590 and GD4520 models?
The primary differences are input voltage and interface options: the GD4520 accepts 5 VDC only and offers USB connectivity, while the GD4590 accepts 4.5-14.0 VDC and provides RS-232/USB/Keyboard Wedge multi-interface capability. The GD4590's broader voltage range and multiple interface options make it more flexible for diverse warehouse and industrial installations.
What accessories are available with the GD4590?
The GD4590 comes with an all-in-one permanent base stand included, and we offer additional mounting options such as multi-purpose holders, desk/wall holders, smart stands, and basic stands to support various scanning configurations. Contact us today to discuss which accessories best fit your specific warehouse or retail deployment needs.
The Datalogic GD4590-BK-B Barcode Scanner is also known as
DTL-GD4590BKB
or GD4590BKB.
Full specifications (PDF)
