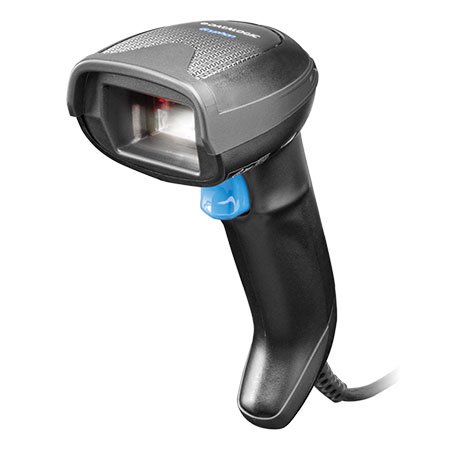

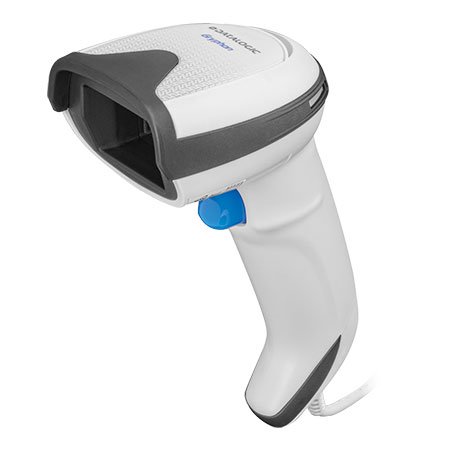

Datalogic Gryphon GD4500 Barcode Scanner Model Overview
The Gryphon™ I GD4500 2D imager from Datalogic is a premium handheld scanner designed for diverse general-purpose applications. Featuring advanced Megapixel sensor technology and an elegant design, this scanner ensures outstanding performance and ergonomic comfort. With its Motionix™ technology, it seamlessly switches between handheld and presentation scanning modes, making it perfect for retail, healthcare, and various commercial environments. Its disinfectant-ready enclosure allows for routine cleaning, meeting the demands of modern working conditions.
Key Features:
1 MP optics for superior scanning and depth of field
Highly visible white-illumination with a precise 4-Dot aimer
Image capture and document scanning functionalities
Specifications:
Decoding Capability: 1D/Linear, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking
Electrical: Operating current: <400 mA @ 5V
Reading Performance: Autodiscriminates all standard 1D codes, Motion Tolerance, Print Contrast Ratio: 15%
Environmental: Operating temperature: 0 to 50 °C / 32 to 122 °F, Humidity: 0-95% non-condensing
Physical Characteristics: Dimensions: 16.6 x 6.8 x 10.9 cm; Weight: 161.0 g
Warranty: 5-Year Factory Warranty

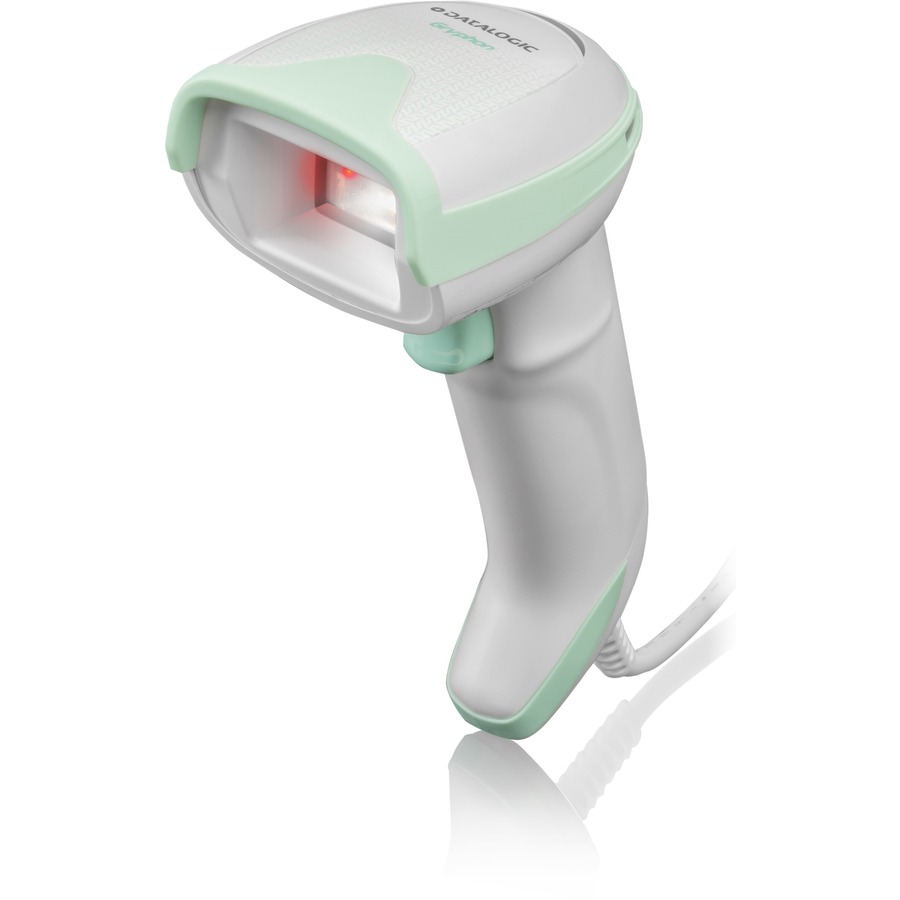

Datalogic GD4520-HCK1-HD Barcode Scanner Overview
IMAGING TECHNOLOGY
The Gryphon 4500 series represents the premium range of handheld scanners from Datalogic for value added applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
TOP TECHNOLOGIES FOR TODAY'S POS
Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences.
Datalogic distinctive reading technology with highly visible white illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.
SIMPLE TO USE AND DEPLOY
The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking.
For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Best Barcode Scanner Purchased With Datalogic GD4520-HCK1-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Bluetooth Barcode Scanner Purchased With Datalogic GD4520-HCK1-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Cables, Connectors, and Adapters Purchased With Datalogic GD4520-HCK1-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Handheld Barcode Scanner Purchased With Datalogic GD4520-HCK1-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Headsets Purchased With Datalogic GD4520-HCK1-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Miscellaneous Purchased With Datalogic GD4520-HCK1-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top QR Barcode Scanner Purchased With Datalogic GD4520-HCK1-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Scanner Accessories Purchased With Datalogic GD4520-HCK1-HD
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top iPhone, iPad and Android Barcode Scanner Purchased With Datalogic GD4520-HCK1-HD
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
What barcode formats does the Datalogic GD4520-HCK1-HD scanner read?
The GD4520-HCK1-HD reads all standard 1D codes including GS1 DataBar linear codes, plus 2D formats like QR Code, Data Matrix, Aztec Code, and Micro QR Code. It also supports postal codes, stacked codes like PDF417 and MicroPDF417, and composite codes including GS1 DataBar Composites and EAN/JAN Composites. This comprehensive decoding capability makes it ideal for healthcare and general warehouse applications where you encounter diverse barcode types.
Is the Datalogic GD4520-HCK1-HD suitable for healthcare environments?
Yes, the GD4520-HCK1-HD is specifically designed for healthcare applications and features an antimicrobial coating that is disinfectant-ready. This makes it ideal for hospital and clinical settings where frequent sanitization is required. The scanner maintains its performance even with regular exposure to cleaning agents used in healthcare facilities.
How durable is the GD4520-HCK1-HD for warehouse and logistics use?
The GD4520-HCK1-HD is built for demanding environments with IP52 particulate and water sealing protection, withstands repeated drops from 1.8 meters onto concrete, and features 16 kV ESD protection. It operates reliably in temperatures from 0 to 50°C and handles humidity up to 95% non-condensing, making it well-suited for warehouse, logistics, and outdoor loading dock applications.
What is Motionix technology and how does it benefit scanning operations?
Motionix is Datalogic's motion-sensing technology that automatically detects the natural actions of the operator and switches the scanner between handheld and presentation reading modes without requiring manual mode selection or scanning a label. This seamless transition improves workflow efficiency and reduces operator fatigue by eliminating the need for mechanical switches or mode buttons.
What connectivity options are available with the GD4520-HCK1-HD?
The GD4520-HCK1-HD connects via USB and is supplied as a kit that includes the scanner and USB cable. The USB connection provides both data communication and power delivery, making it straightforward to integrate into existing warehouse management systems and point-of-sale platforms without additional power adapters.
How does the 4-Dot aimer with center cross improve scanning accuracy?
The GD4520-HCK1-HD features a highly visible 4-Dot aimer with center cross that defines a precise reading zone and reduces accidental reads in multi-barcode environments. The center cross provides a clear locator for targeted scanning, while the steady red illumination is easier on operator eyes compared to flickering lights, improving both accuracy and user comfort during extended scanning sessions.
The Datalogic GD4520-HCK1-HD Barcode Scanner is also known as
DTL-GD4520HCK1HD
or GD4520HCK1HD.
Full specifications (PDF)
