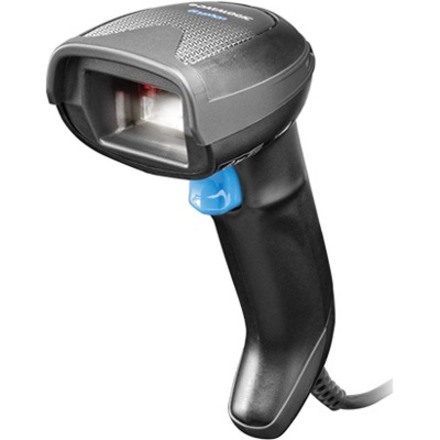

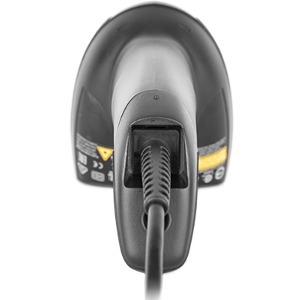

Datalogic Gryphon GD4500 Barcode Scanner Model Overview
The Gryphon™ I GD4500 2D imager from Datalogic is a premium handheld scanner designed for diverse general-purpose applications. Featuring advanced Megapixel sensor technology and an elegant design, this scanner ensures outstanding performance and ergonomic comfort. With its Motionix™ technology, it seamlessly switches between handheld and presentation scanning modes, making it perfect for retail, healthcare, and various commercial environments. Its disinfectant-ready enclosure allows for routine cleaning, meeting the demands of modern working conditions.
Key Features:
1 MP optics for superior scanning and depth of field
Highly visible white-illumination with a precise 4-Dot aimer
Image capture and document scanning functionalities
Specifications:
Decoding Capability: 1D/Linear, 2D Codes, Postal Codes, Stacked Codes, Digital Watermarking
Electrical: Operating current: <400 mA @ 5V
Reading Performance: Autodiscriminates all standard 1D codes, Motion Tolerance, Print Contrast Ratio: 15%
Environmental: Operating temperature: 0 to 50 °C / 32 to 122 °F, Humidity: 0-95% non-condensing
Physical Characteristics: Dimensions: 16.6 x 6.8 x 10.9 cm; Weight: 161.0 g
Warranty: 5-Year Factory Warranty
Datalogic GD4520-BKK1B Barcode Scanner Overview
IMAGING TECHNOLOGY

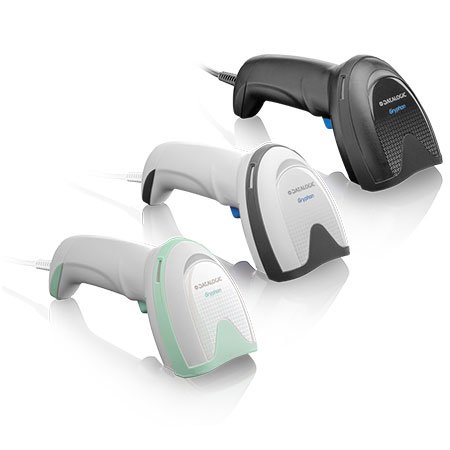

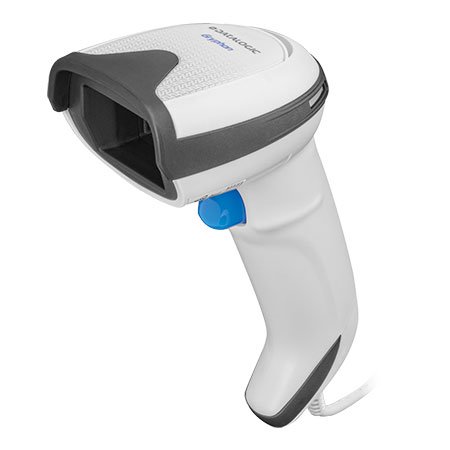

The Gryphon 4500 series represents the premium range of handheld scanners from Datalogic for value added applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
TOP TECHNOLOGIES FOR TODAY'S POS
Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences.
Datalogic distinctive reading technology with highly visible white illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.
SIMPLE TO USE AND DEPLOY
The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking.
For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Best Barcode Scanner Purchased With Datalogic GD4520-BKK1B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Bluetooth Barcode Scanner Purchased With Datalogic GD4520-BKK1B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Cables, Connectors, and Adapters Purchased With Datalogic GD4520-BKK1B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Handheld Barcode Scanner Purchased With Datalogic GD4520-BKK1B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Headsets Purchased With Datalogic GD4520-BKK1B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Miscellaneous Purchased With Datalogic GD4520-BKK1B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top QR Barcode Scanner Purchased With Datalogic GD4520-BKK1B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Scanner Accessories Purchased With Datalogic GD4520-BKK1B
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top iPhone, iPad and Android Barcode Scanner Purchased With Datalogic GD4520-BKK1B
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
What barcode types can the Datalogic GD4520 scanner read?
The GD4520 is a 2D imager that autodiscriminates all standard 1D codes including GS1 DataBar linear codes, plus 2D codes such as QR Code, Data Matrix, Aztec Code, and Micro QR Code. It also reads postal codes, stacked codes like PDF417 and MicroPDF417, and composite codes including EAN/JAN and GS1 DataBar Composites. This comprehensive decoding capability makes it ideal for general-purpose warehouse and retail applications.
Does the GD4520 work in both handheld and presentation modes?
Yes, the GD4520 features Datalogic's Motionix motion-sensing technology that automatically detects the natural actions of the user to switch between handheld and presentation reading modes. The scanner comes with an All-in-One permanent base that allows it to function as a presentation scanner while still supporting handheld use, eliminating the need for manual mode switching or mechanical buttons.
What are the connectivity options for the GD4520?
The GD4520 connects via USB only, making it straightforward to integrate into most warehouse management and POS systems. The kit includes the scanner, an All-in-One permanent base, and a USB cable, providing everything needed for immediate deployment in your facility.
How durable is the GD4520 in warehouse environments?
The GD4520 is built for rugged warehouse use with an IP52 rating for particulate and water sealing, withstands repeated drops from 1.8 meters (6 feet) onto concrete, and features 16 kV ESD protection. It operates reliably in temperatures from 0 to 50°C and humidity levels up to 95% non-condensing, making it suitable for most warehouse and logistics environments.
What makes the GD4520's aimer design better for scanning accuracy?
The GD4520 features a highly visible 4-dot aimer with a center cross that defines a precise reading zone and reduces accidental reads in multi-barcode environments. The steady, deep red illumination is easier on the eyes than competitive flicker illumination and helps operators target the exact barcode they need to scan, improving both accuracy and operator comfort.
What is the power consumption of the GD4520?
The GD4520 operates at 5 VDC with typical operating current under 300 mA and standby/idle current under 90 mA, making it energy-efficient for continuous warehouse scanning operations. This low power draw reduces heat generation and is compatible with standard USB power supplies available from us at Barcodes Inc.
The Datalogic GD4520-BKK1B Barcode Scanner is also known as
DTL-GD4520-BKK1B
or GD4520BKK1B.
Full specifications (PDF)
