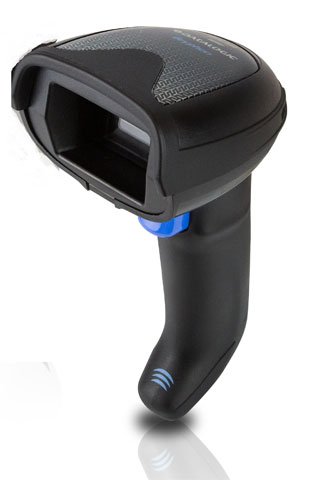

Datalogic Gryphon I GBT4500 Barcode Scanner Model Overview
The Gryphon™ GBT/GM4500 2D scanner is the pinnacle of handheld scanning technology from Datalogic. With its sleek design and extraordinary ergonomics, this scanner is engineered for general purpose applications. Equipped with the latest Megapixel sensor and white-illumination 2D technology, it delivers impressive performance and unmatched reliability. Wireless communication options, including Bluetooth® or Datalogic's STAR Cordless System™, provide flexibility for various applications, while the innovative wireless charging system streamlines maintenance and enhances productivity.
Key features:
Advanced Imaging Technology: 1 MP optics with warm white illumination for superior scanning.
Motion-sensing Technology: Automatically switches between handheld and stand mode.
Wireless Options: Bluetooth® 4.0 or Datalogic STAR Cordless System for flexible connectivity.
Durable Design: Built to withstand multiple drops and harsh environments.
Specifications:
Battery: Lithium-Ion 3250 mAh, user-replaceable.
Charging Time: 4 hours @ 12 VDC, with < 6 W power consumption.
Reading Performance: Reads 1D, 2D, and postal codes.
Wireless Range: Up to 100 m with Bluetooth in open air.
Dimensions: 16.6 x 6.8 x 10.9 cm / 235 g.
Operating Temperature: 0 to 50 °C / 32 to 122 °F.
Datalogic GBT4500-HC-WLC Barcode Scanner Overview
IMAGING TECHNOLOGY
The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
WIRELESS COMMUNICATIONS
Featuring Bluetooth® wireless technology (GBT model) or narrow band radio communications with Datalogic's STAR Cordless System™ (GM model), the Gryphon 4500 wireless readers provide maximum flexibility to solve any end user application with the best technical solution.
WIRELESS CHARGING
One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
SIMPLE TO USE AND DEPLOY
The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.
Datalogic's Motionix™ motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it's charging.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Best Barcode Scanner Purchased With Datalogic GBT4500-HC-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Bluetooth Barcode Scanner Purchased With Datalogic GBT4500-HC-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Cables, Connectors, and Adapters Purchased With Datalogic GBT4500-HC-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Docks and Cradles Purchased With Datalogic GBT4500-HC-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Imager Barcode Scanner Purchased With Datalogic GBT4500-HC-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Miscellaneous Purchased With Datalogic GBT4500-HC-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top QR Barcode Scanner Purchased With Datalogic GBT4500-HC-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Scanner Accessories Purchased With Datalogic GBT4500-HC-WLC
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top iPhone, iPad and Android Barcode Scanner Purchased With Datalogic GBT4500-HC-WLC
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
What wireless connectivity options does the Datalogic GBT4500-HC offer?
The GBT4500-HC provides two wireless connectivity choices: Bluetooth wireless technology or Datalogic's STAR cordless system operating at 433 MHz or 910 MHz. Both options deliver reliable performance with a radio range up to 30 meters (98.4 feet), giving you maximum flexibility for your warehouse or healthcare facility. Contact us today to determine which connectivity option best fits your infrastructure.
Is the Datalogic GBT4500-HC suitable for healthcare environments?
Yes, the GBT4500-HC is specifically designed for healthcare applications with disinfectant-ready enclosures treated with anti-microbial additives to help prevent germ transmission. The scanner features an IP52 water and particulate sealing rating and can withstand drops up to 1.5 meters (5 feet), making it ideal for sanitized hospital and clinical settings. We offer this model as part of our healthcare barcode scanner solutions available from barcodesinc.com.
What barcode types can the GBT4500-HC scan?
The GBT4500-HC features an omnidirectional 2D imager that quickly captures all common 1D and 2D barcodes, including QR codes and linear barcodes. This versatility makes it suitable for general-purpose applications across warehouses, hospitals, and logistics environments where multiple barcode formats are used. Visit barcodesinc.com to learn more about its scanning capabilities.
How does the wireless charging system work on the GBT4500-HC?
The GBT4500-HC features Datalogic's innovative contactless wireless charging system integrated into a patented 2-position cradle that enhances reliability and reduces wear on charging contacts. The scanner can scan while charging, allowing continuous operation without downtime, and uses a long-lasting user-replaceable Lithium-Ion battery. This design significantly improves the overall reliability and operational efficiency of your scanning solution.
What is the reading distance for 2D codes on the GBT4500-HC?
The GBT4500-HC delivers extended reading distances for 2D barcodes, with QR codes at 10 mils readable from 3.0 to 12.5 centimeters (1.2 to 4.9 inches). The scanner's omnidirectional imager and wide scan angle provide snappy reading performance across various code sizes and orientations. Contact us today for detailed specifications on specific barcode dimensions you'll be scanning.
What warranty and support options are available for the GBT4500-HC?
The Datalogic GBT4500-HC includes a 3-year factory warranty covering defects and malfunctions. We also provide access to Datalogic's free configuration tools including Aladdin software, OPOS utilities, and JavaPOS support for seamless integration into your systems. Our team at barcodesinc.com is available to assist with setup, troubleshooting, and ongoing support for your scanner deployment.
The Datalogic GBT4500-HC-WLC Barcode Scanner is also known as
DTL-GBT4500HCWLC
or GBT4500HCWLC.
Full specifications (PDF)
