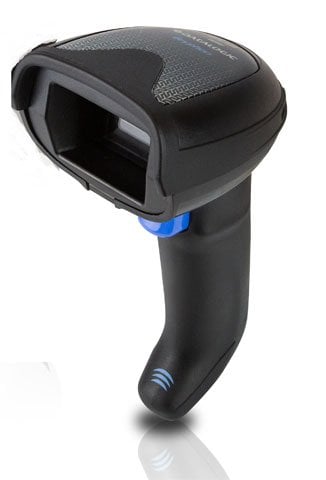

Datalogic Gryphon I GBT4500 Barcode Scanner Model Overview
The Gryphon™ GBT/GM4500 2D scanner is the pinnacle of handheld scanning technology from Datalogic. With its sleek design and extraordinary ergonomics, this scanner is engineered for general purpose applications. Equipped with the latest Megapixel sensor and white-illumination 2D technology, it delivers impressive performance and unmatched reliability. Wireless communication options, including Bluetooth® or Datalogic's STAR Cordless System™, provide flexibility for various applications, while the innovative wireless charging system streamlines maintenance and enhances productivity.
Key features:
Advanced Imaging Technology: 1 MP optics with warm white illumination for superior scanning.
Motion-sensing Technology: Automatically switches between handheld and stand mode.
Wireless Options: Bluetooth® 4.0 or Datalogic STAR Cordless System for flexible connectivity.
Durable Design: Built to withstand multiple drops and harsh environments.
Specifications:
Battery: Lithium-Ion 3250 mAh, user-replaceable.
Charging Time: 4 hours @ 12 VDC, with < 6 W power consumption.
Reading Performance: Reads 1D, 2D, and postal codes.
Wireless Range: Up to 100 m with Bluetooth in open air.
The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
WIRELESS COMMUNICATIONS
Featuring Bluetooth® wireless technology (GBT model) or narrow band radio communications with Datalogic's STAR Cordless System™ (GM model), the Gryphon 4500 wireless readers provide maximum flexibility to solve any end user application with the best technical solution.
WIRELESS CHARGING
One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
SIMPLE TO USE AND DEPLOY
The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.
Datalogic's Motionix™ motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it's charging.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Best Barcode Scanner Purchased With Datalogic GBT4500-HC-BTK1
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Bluetooth Barcode Scanner Purchased With Datalogic GBT4500-HC-BTK1
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Cables, Connectors, and Adapters Purchased With Datalogic GBT4500-HC-BTK1
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Docks and Cradles Purchased With Datalogic GBT4500-HC-BTK1
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Imager Barcode Scanner Purchased With Datalogic GBT4500-HC-BTK1
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Miscellaneous Purchased With Datalogic GBT4500-HC-BTK1
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top QR Barcode Scanner Purchased With Datalogic GBT4500-HC-BTK1
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Scanner Accessories Purchased With Datalogic GBT4500-HC-BTK1
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top iPhone, iPad and Android Barcode Scanner Purchased With Datalogic GBT4500-HC-BTK1
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
What barcode types can the Datalogic GBT4500-HC scanner read?
The GBT4500-HC features a 2D omnidirectional imager that captures all common 1D and 2D barcodes, including QR codes and GS1 DataBar formats. This versatility makes it suitable for general-purpose applications across warehouses, healthcare, and retail environments. We offer this scanner as a complete kit including the WLC4090-HC-BT wireless charging base and USB cable.
Is the GBT4500-HC suitable for healthcare environments?
Yes, the GBT4500-HC is specifically designed for healthcare with a disinfectant-ready enclosure treated with anti-microbial additives to help prevent germ spread. This makes it ideal for hospitals and medical facilities where frequent sanitization is critical. Contact us today to discuss healthcare-specific deployment options.
What wireless connectivity options does the GBT4500-HC provide?
The GBT4500-HC offers maximum flexibility with both Bluetooth wireless technology and Datalogic's STAR cordless system connectivity options. This dual-connectivity approach allows you to choose the solution that best fits your existing infrastructure and mobility requirements. Our team can help you select the right configuration for your warehouse or logistics operation.
How does the wireless charging system work on the GBT4500-HC?
The GBT4500-HC features Datalogic's innovative contactless wireless charging system, which eliminates the need for traditional charging contacts and enhances overall solution reliability. The included WLC4090-HC-BT base station provides convenient charging without wear on connection points. This technology reduces maintenance costs and extends the scanner's operational lifespan.
What is included in the GBT4500-HC-BTK1 kit?
The GBT4500-HC-BTK1 kit includes the Datalogic Gryphon GBT4500-HC 2D barcode scanner, the WLC4090-HC-BT wireless charging base station, and a USB cable. This complete package is ready for immediate deployment in your warehouse or healthcare facility. Visit barcodesinc.com to review all included accessories and compatible options.
What environmental durability specifications does the GBT4500-HC meet?
The GBT4500-HC is built to withstand demanding warehouse and healthcare environments with IP52 particulate and water sealing protection, operating temperatures from 0 to 55°C, and the ability to withstand repeated drops from 1.5 meters onto concrete. It also features 16 kV ESD protection and operates reliably in ambient light conditions up to 100,000 lux. Contact us today for detailed specifications or deployment guidance for your specific environment.
The Datalogic GBT4500-HC-BTK1 Barcode Scanner is also known as
DTL-GBT4500HCBTK1
or GBT4500HCBTK1.
Full specifications (PDF)
