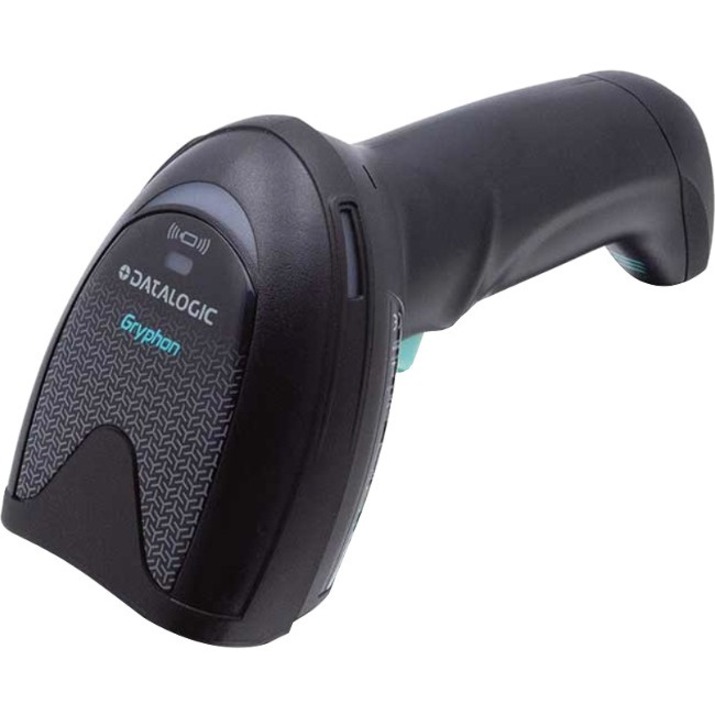

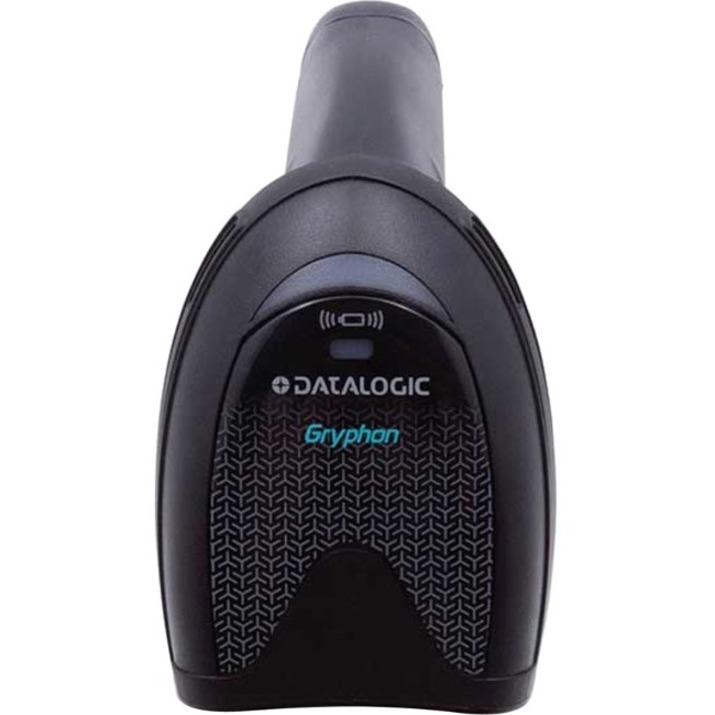

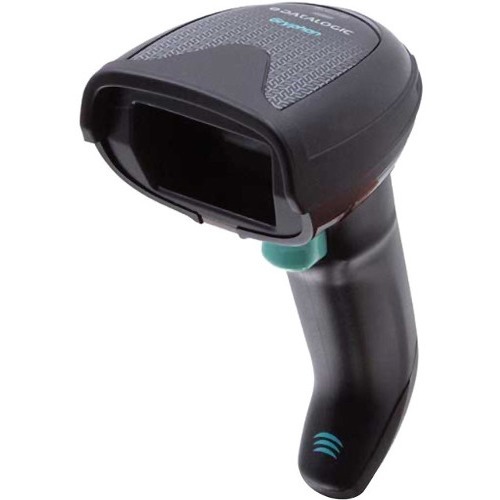

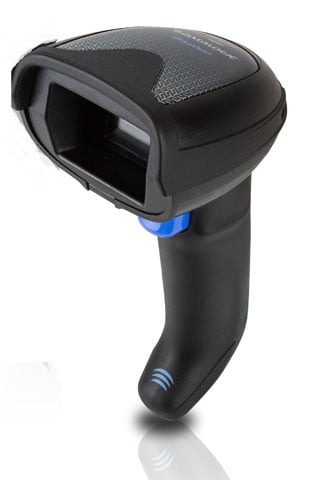

Datalogic Gryphon I GBT4500 Barcode Scanner Model Overview
The Gryphon™ GBT/GM4500 2D scanner is the pinnacle of handheld scanning technology from Datalogic. With its sleek design and extraordinary ergonomics, this scanner is engineered for general purpose applications. Equipped with the latest Megapixel sensor and white-illumination 2D technology, it delivers impressive performance and unmatched reliability. Wireless communication options, including Bluetooth® or Datalogic's STAR Cordless System™, provide flexibility for various applications, while the innovative wireless charging system streamlines maintenance and enhances productivity.
Key features:
Advanced Imaging Technology: 1 MP optics with warm white illumination for superior scanning.
Motion-sensing Technology: Automatically switches between handheld and stand mode.
Wireless Options: Bluetooth® 4.0 or Datalogic STAR Cordless System for flexible connectivity.
Durable Design: Built to withstand multiple drops and harsh environments.
Specifications:
Battery: Lithium-Ion 3250 mAh, user-replaceable.
Charging Time: 4 hours @ 12 VDC, with < 6 W power consumption.
Reading Performance: Reads 1D, 2D, and postal codes.
Wireless Range: Up to 100 m with Bluetooth in open air.
The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
WIRELESS COMMUNICATIONS
Featuring Bluetooth® wireless technology (GBT model) or narrow band radio communications with Datalogic's STAR Cordless System™ (GM model), the Gryphon 4500 wireless readers provide maximum flexibility to solve any end user application with the best technical solution.
WIRELESS CHARGING

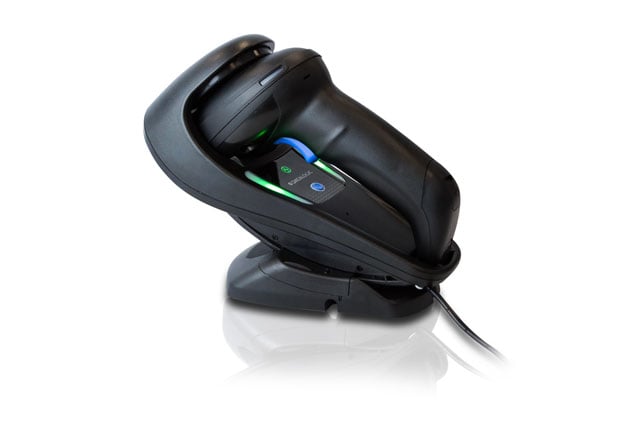

One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
SIMPLE TO USE AND DEPLOY
The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.
Datalogic's Motionix™ motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it's charging.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Best Barcode Scanner Purchased With Datalogic GBT4500-BK-BTK1DRA
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Bluetooth Barcode Scanner Purchased With Datalogic GBT4500-BK-BTK1DRA
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Cables, Connectors, and Adapters Purchased With Datalogic GBT4500-BK-BTK1DRA
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Docks and Cradles Purchased With Datalogic GBT4500-BK-BTK1DRA
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Imager Barcode Scanner Purchased With Datalogic GBT4500-BK-BTK1DRA
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Miscellaneous Purchased With Datalogic GBT4500-BK-BTK1DRA
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top QR Barcode Scanner Purchased With Datalogic GBT4500-BK-BTK1DRA
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top Scanner Accessories Purchased With Datalogic GBT4500-BK-BTK1DRA
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
In Stock
$688.63
Top iPhone, iPad and Android Barcode Scanner Purchased With Datalogic GBT4500-BK-BTK1DRA
Cordless Barcode Scanner, Datalogic Gryphon GBT4500, 2D Imager, Single Dot, General Purpose, Handheld, Bluetooth, Black. Kit inc. Scanner, WLC4090-BK-BT base and USB cable 90A052258
What barcode types can the Datalogic GBT4500 scanner read?
The GBT4500 features an omnidirectional 2D imager designed to quickly scan all common 1D and 2D barcodes, including QR codes and other linear and matrix formats. This versatility makes it ideal for general-purpose warehouse and logistics applications where you encounter multiple barcode types.
How does the wireless charging system work on the GBT4500?
The GBT4500 introduces Datalogic's innovative contactless wireless charging system, which enhances reliability by eliminating physical contact points that can wear out or corrode. The included WLC4090-BK-BT-DRA base station provides seamless charging when the scanner is docked, ensuring your device is always ready for use.
What connectivity options does the GBT4500 offer?
The GBT4500 supports Bluetooth wireless technology for flexible deployment throughout your facility, and is also compatible with Datalogic's STAR cordless system for maximum application flexibility. Both options eliminate cable restrictions while maintaining reliable data transmission for warehouse and retail environments.
Is the GBT4500 suitable for healthcare or sanitized environments?
Yes, this model is specifically designed as a disinfectant-ready antimicrobial scanner, making it ideal for healthcare facilities, food processing, and other environments requiring frequent sanitization. The antimicrobial coating helps maintain hygiene standards while the durable construction withstands regular disinfectant exposure.
What's included in the GBT4500 kit?
The kit includes the GBT4500 scanner, the WLC4090-BK-BT-DRA wireless charging base station, and a USB cable for initial setup and configuration. This complete bundle is available from us and ready to deploy immediately in your warehouse or logistics operation.
How does the GBT4500 compare to earlier Gryphon models?
The GBT4500 represents the latest advancement in Datalogic's popular Gryphon series, introducing the innovative contactless wireless charging system for enhanced reliability and reduced maintenance. It maintains the premium feature set and user-friendly design of the Gryphon line while adding modern wireless capabilities for general-purpose applications. Contact us today to learn how the GBT4500 can improve your operation.
The Datalogic GBT4500-BK-BTK1DRA Barcode Scanner is also known as
DTL-GBT4500BKBTK1DRA
or GBT4500BKBTK1DRA.
Full specifications (PDF)
