Full specifications (PDF)
Connectivity Technology:
Wireless
Datalogic 94R511225 Data Terminal
Part Number:
94R511225
Model:
Rhino II

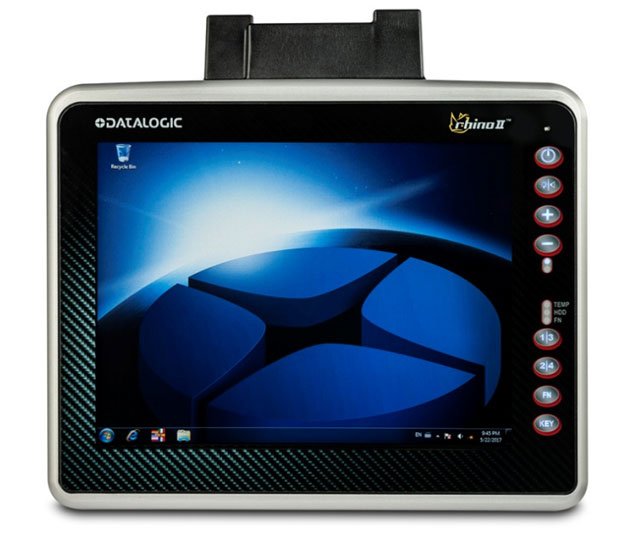

Datalogic Rhino II Data Terminal Model Overview
The Rhino IITM Vehicle Mounted Computer is the ultimate rugged solution for warehouse management, designed to perform in the harshest environments. With both 10" and 12" display options, this computer features a robust design sealed to IP65/IP67 standards, making it ideal for cold storage and outdoor use. Its integrated display heater ensures functionality even in extreme cold, while the capacitive touch screen offers glove support for maximum usability. Tailored for enhanced productivity, the Rhino II minimizes errors during critical warehouse operations such as receiving, picking, and shipping.
Key Features:
Specifications:
Key Features:
- Choice of Microsoft Operating Systems or Android™ 7.1
- 10 inch or 12 inch high resolution color display
- Anti-glare multi-touch screen with gloves support
- IP65/IP67 protection class
- Wide operating temperature range: -20 to 55 °C
- Support for tethered and cordless barcode scanners
- Multiple mounting options for versatile usage
- EASEOFCARE Service Plans available for protection
Specifications:
- Wireless Communications:
- WLAN: IEEE 802.11 a/b/g/n
- Bluetooth® Wireless Technology v4.0
- Dimensions:
- 10 inch: 27.8 x 22.3 x 6.4 cm
- 12 inch: 32.4 x 25.1 x 7.1 cm
- Operating Temperature:
- Operating: -20 to 55 °C
- Freezer model: -30 °C
- Interfaces:
- 1 x Ethernet 10/100/1000 Mbps
- 3 x USB 2.0 Type A
- 1 x USB 3.0 Type A
- Weight:
- 10 inch Standard Models: 3.6 Kg
- 12 inch Standard Models: 4.7 Kg
- Warranty: 1-Year Factory Warranty
Datalogic 94R511225 Data Terminal Overview
The Rhino II™ vehicle mount computers, available in both 10" and 12" display sizes, set the standard for ruggedness in the warehouse. A sealed design tested to IP65/IP67 ensures operation in the toughest environments. A dedicated freezer-rated model with integrated display heater allows use in and out of cold storage. The capacitive touch models feature 3 mm anti-glare armored glass, while still allowing use of gloves.
Tailored for warehouse management, the Rhino vehicle mount computer increases productivity with its easy integration of PowerScan or other automated data collection devices.
The Rhino II offers a wide choice of Operating Systems: Windows Embedded Compact 7 (WEC7), Windows Embedded Standard 7, Windows 10 IoT Enterprise and the new Android™ 7.1
Technical Information
Processor & Chipset
Processor Core:
Quad-core (4 Core)
Processor Speed:
1 GHz
Memory
Standard Memory:
1 GB
Flash Memory:
32 GB
Memory Card Supported:
SDHC
Display & Graphics
Screen Size:
12.1"
Graphics Modes:
XGA
Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Display Resolution:
1024 x 768
Network & Communication
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Power Description
Power Source:
Power Supply
Software
Operating System:
Windows 10 IoT
Physical Characteristics
Weight (Approximate):
10.36 lb
Miscellaneous
Certifications & Standards:
- CE
- FCC
- IP65
- IP67
- EN 60721-3-5: 1998
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
Recommended Accessories
Category
- Computer Accessories (3)
- Data Networking Device (3)
- Datalogic Fixed/Vehicle Mount Data Terminal (38)
- Forklift Fixed/Vehicle Mount Data Terminal (23)
- General Software (5)
- Mobile Computer Accessories (4)
- Spare Parts (4)
- Terminal Accessories (1)
- Vehicle Fixed/Vehicle Mount Data Terminal (23)
Recommended Accessories for Model: Datalogic 94R511225 Data Terminal
Top Computer Accessories Purchased With Datalogic 94R511225
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47 -
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$638.69 -
Datalogic 94ACC1374 AccessoryKeyboard, Compact, Cable Connectivity, External, QWERTY layoutItem on backorder — chat for lead time$745.13
Top Data Networking Device Purchased With Datalogic 94R511225
-
Datalogic 94R722255 Data NetworkingDatalogic Rhino II Rugged Vehicle Mount Computer, 12" CAP HB, VDC 12-48V, INT ANT, UPS, 64GB, CFAST, SUMMIT PE15N, I5 CORE 8GB, WIN 10 IOTItem on backorder — chat for lead time$7,079.63 -
Datalogic 94R211235 Data NetworkingDatalogic Rhino II Forklife Screen, 10" RES STD, VDC 12-48V INT ANT, 32GB, SUMMIT PE15N, QC, 4GB, WIN IOTItem on backorder — chat for lead time$4,185.33 -
Datalogic 94R211225 Data NetworkingDatalogic Rhino II Forklife Screen, 10" RES STD, VDC 12-48V INT ANT, 32GB, SUMMIT PE15N, DC, 4GB, WIN IOTItem on backorder — chat for lead time$3,886.84
Top Datalogic Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R511225
-
Datalogic 94ACC0157 Data TerminalCable, Datalogic Rhino II, Screen Blanking RS-232 CableItem on backorder — chat for lead time$136.37 -
Datalogic 94ACC0158 Data TerminalKeyboard, 24 Key, Right Side Mount, 10 Key LayoutItem on backorder — chat for lead time$718.83 -
Datalogic 94ACC0159 Data TerminalCover, Datalogic SH15 Blackline, Top Cover for LTE WWAN USB and Dual AntenasItem on backorder — chat for lead time$211.82
Top Forklift Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R511225
-
Datalogic 94R511225 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows 10 IoT, 12-48 Vdc, Internal Antenna, Summit PE15N, E3826 DCItem on backorder — chat for lead time$3,663.57 -
Datalogic 94R521235 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 12.1" Display, 12-48 Vdc, 1024 x 768, Internal Antenna, Windows 10 IoT, Enterprise Quad Core/1.9GHz Processor, 4GB RAM/32GB Flash, Laird M2SD50, Summit PE15N, 802.11a/b/g/n, Wi-Fi, Bluetooth 4.0, DC Power CableItem on backorder — chat for lead time$4,725.13 -
Datalogic 94R511101 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows Embedded Compact 7, 12-48 Vdc, Internal Antenna, Laird M2SD50, QMXItem on backorder — chat for lead time$3,783.72
Top General Software Purchased With Datalogic 94R511225
-
Datalogic 94A101121 SoftwareSoftware, Datalogic Rhino II, StayLinked SmartTE With 1 Year Maintenance, 1 License, Compatible with PC and MacIn Stock$170.41 -
Datalogic 95A101135 SoftwareSoftware, Datalogic Joya Touch A6, Ivanti Android Velocity TE Client, 1 License, Powered by Wavelink, WL # 140-LI-VELOCTE, Requires Maintenance P/N ZSS5VELTE1Item on backorder — chat for lead time$232.20 -
Datalogic ZSS5VELTE1 SoftwareSoftware, Datalogic Joya Touch A6, Ivanti Android Velocity TE Client, 1 Year of Maintenance Included, Powered By Wavelink, WL # 140-MA-VELOCTEIn Stock$112.25
Top Mobile Computer Accessories Purchased With Datalogic 94R511225
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$638.69
-
Datalogic 94ACC0034 Spare PartsMount, Datalogic SH15, RAM Mount with Round Base, D Size, 2.25 InchesItem on backorder — chat for lead time$206.26
Top Spare Parts Purchased With Datalogic 94R511225
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$638.69
-
Datalogic 94ACC0034 Spare PartsMount, Datalogic SH15, RAM Mount with Round Base, D Size, 2.25 InchesItem on backorder — chat for lead time$206.26
Top Terminal Accessories Purchased With Datalogic 94R511225
-
Datalogic 94ACC1374 AccessoryKeyboard, Compact, Cable Connectivity, External, QWERTY layoutItem on backorder — chat for lead time$745.13
Top Vehicle Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R511225
-
Datalogic 94R511225 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows 10 IoT, 12-48 Vdc, Internal Antenna, Summit PE15N, E3826 DCItem on backorder — chat for lead time$3,663.57
-
Datalogic 94R521235 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 12.1" Display, 12-48 Vdc, 1024 x 768, Internal Antenna, Windows 10 IoT, Enterprise Quad Core/1.9GHz Processor, 4GB RAM/32GB Flash, Laird M2SD50, Summit PE15N, 802.11a/b/g/n, Wi-Fi, Bluetooth 4.0, DC Power CableItem on backorder — chat for lead time$4,725.13
-
Datalogic 94R511101 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows Embedded Compact 7, 12-48 Vdc, Internal Antenna, Laird M2SD50, QMXItem on backorder — chat for lead time$3,783.72
Frequently Asked Questions
What makes the DataLogic Rhino II suitable for warehouse and forklift operations?
The Rhino II is purpose-built for warehouse management, designed to increase productivity through reduced errors during receiving, put-away, picking, and shipping activities. Its rugged sealed design tested to IP65/IP67 ensures reliable operation in the toughest warehouse environments, while the capacitive touch display with 3mm anti-glare armored glass allows operation even when wearing gloves. We offer the Rhino II as the industry standard for vehicle-mounted computing in material handling operations.
Can the DataLogic Rhino II operate in cold storage environments?
Yes, DataLogic offers a dedicated freezer-rated model of the Rhino II with an integrated display heater that allows safe operation in and out of cold storage facilities. This specialized variant ensures your warehouse operations can extend into temperature-controlled environments without compromising performance or data integrity.
What are the display options available for the Rhino II vehicle mount computer?
The Rhino II is available in both 10" and 12" display sizes to accommodate different mounting and space constraints in your facility. Both options feature XGA resolution (1024 x 768) with capacitive touch technology and anti-glare armored glass, allowing you to choose the size that best fits your vehicle and operational requirements.
What connectivity and networking options does the DataLogic Rhino II provide?
The Rhino II 94R511225 model includes IEEE 802.11a/b/g/n wireless networking, Serial, and USB connectivity options to integrate seamlessly with your warehouse systems. These multiple connectivity paths ensure reliable data transmission and compatibility with existing barcode scanners and enterprise software solutions available from us.
How does the Rhino II protect against data loss during power interruptions?
The Rhino II is equipped with an internal isolated power supply featuring integrated power loss detection and optional battery backup capabilities for ultimate protection against data loss. Additionally, the ignition sense feature automatically controls power management, and the device supports input voltages from 12-48 Vdc, making it adaptable to various vehicle electrical systems.
What mounting and keyboard options are available for the Rhino II?
The Rhino II offers flexible mounting solutions including various brackets and RAM mount options to fit different vehicle configurations and space constraints. You can choose between external ABCD or QWERTY keyboards, or use the dedicated software keyboard with multiple layout and language options to adapt the computer to your global operations and minimize physical footprint. Contact us today to discuss the mounting configuration that best suits your warehouse fleet.
