Full specifications (PDF)
Connectivity Technology:
Wireless
Datalogic 94R511101 Data Terminal
Part Number:
94R511101
Model:
Rhino II

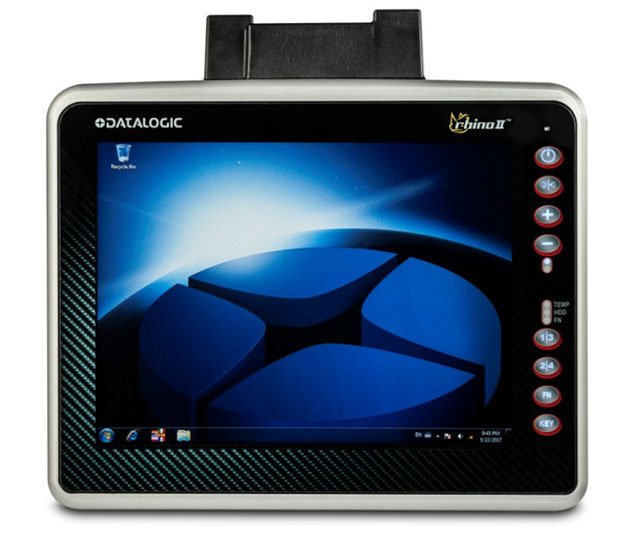

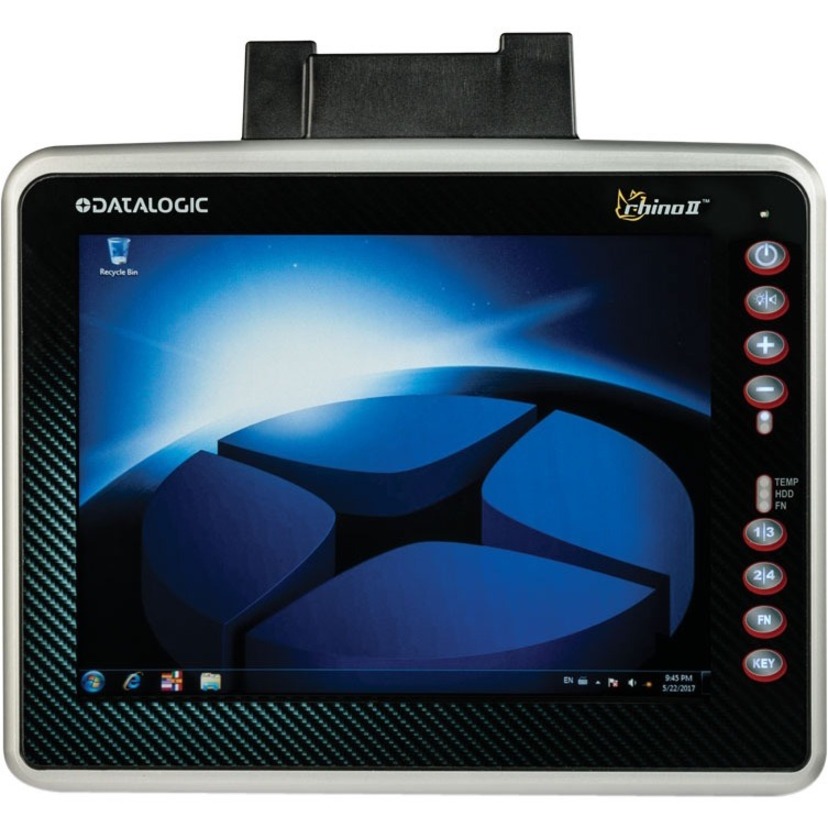

Datalogic Rhino II Data Terminal Model Overview
The Rhino IITM Vehicle Mounted Computer is the ultimate rugged solution for warehouse management, designed to perform in the harshest environments. With both 10" and 12" display options, this computer features a robust design sealed to IP65/IP67 standards, making it ideal for cold storage and outdoor use. Its integrated display heater ensures functionality even in extreme cold, while the capacitive touch screen offers glove support for maximum usability. Tailored for enhanced productivity, the Rhino II minimizes errors during critical warehouse operations such as receiving, picking, and shipping.
Key Features:
Specifications:
Key Features:
- Choice of Microsoft Operating Systems or Android™ 7.1
- 10 inch or 12 inch high resolution color display
- Anti-glare multi-touch screen with gloves support
- IP65/IP67 protection class
- Wide operating temperature range: -20 to 55 °C
- Support for tethered and cordless barcode scanners
- Multiple mounting options for versatile usage
- EASEOFCARE Service Plans available for protection
Specifications:
- Wireless Communications:
- WLAN: IEEE 802.11 a/b/g/n
- Bluetooth® Wireless Technology v4.0
- Dimensions:
- 10 inch: 27.8 x 22.3 x 6.4 cm
- 12 inch: 32.4 x 25.1 x 7.1 cm
- Operating Temperature:
- Operating: -20 to 55 °C
- Freezer model: -30 °C
- Interfaces:
- 1 x Ethernet 10/100/1000 Mbps
- 3 x USB 2.0 Type A
- 1 x USB 3.0 Type A
- Weight:
- 10 inch Standard Models: 3.6 Kg
- 12 inch Standard Models: 4.7 Kg
- Warranty: 1-Year Factory Warranty
Datalogic 94R511101 Data Terminal Overview
The Rhino II™ vehicle mount computers, available in both 10" and 12" display sizes, set the standard for ruggedness in the warehouse. A sealed design tested to IP65/IP67 ensures operation in the toughest environments. A dedicated freezer-rated model with integrated display heater allows use in and out of cold storage. The capacitive touch models feature 3 mm anti-glare armored glass, while still allowing use of gloves.
Tailored for warehouse management, the Rhino vehicle mount computer increases productivity with its easy integration of PowerScan or other automated data collection devices.
The Rhino II offers a wide choice of Operating Systems: Windows Embedded Compact 7 (WEC7), Windows Embedded Standard 7, Windows 10 IoT Enterprise and the new Android™ 7.1
Technical Information
Processor & Chipset
Processor Core:
Quad-core (4 Core)
Processor Speed:
1 GHz
Memory
Standard Memory:
1 GB
Flash Memory:
32 GB
Memory Card Supported:
SDHC
Display & Graphics
Screen Size:
12.1"
Graphics Modes:
XGA
Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Display Resolution:
1024 x 768
Network & Communication
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Power Description
Power Source:
Power Supply
Software
Operating System:
Windows Embedded Compact 7
Physical Characteristics
Weight (Approximate):
10.36 lb
Miscellaneous
Certifications & Standards:
- CE
- FCC
- IP65
- IP67
- EN 60721-3-5: 1998
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
