Full specifications (PDF)
Connectivity Technology:
Wireless
Datalogic 94R511223 Data Terminal
Part Number:
94R511223
Model:
Rhino II

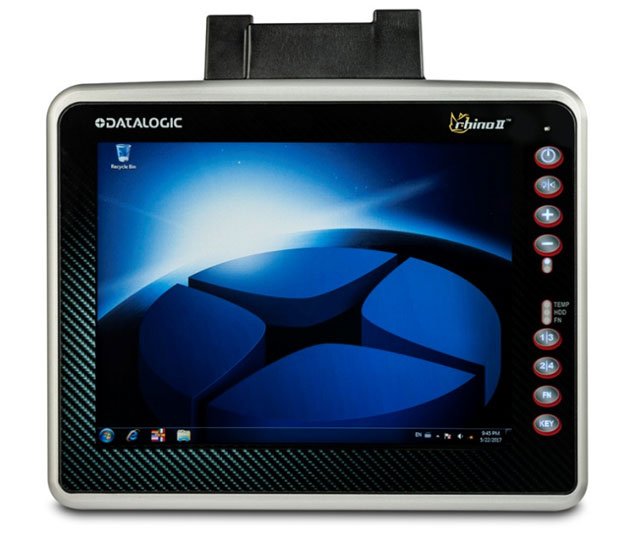

Datalogic Rhino II Data Terminal Model Overview
The Rhino IITM Vehicle Mounted Computer is the ultimate rugged solution for warehouse management, designed to perform in the harshest environments. With both 10" and 12" display options, this computer features a robust design sealed to IP65/IP67 standards, making it ideal for cold storage and outdoor use. Its integrated display heater ensures functionality even in extreme cold, while the capacitive touch screen offers glove support for maximum usability. Tailored for enhanced productivity, the Rhino II minimizes errors during critical warehouse operations such as receiving, picking, and shipping.
Key Features:
Specifications:
Key Features:
- Choice of Microsoft Operating Systems or Android™ 7.1
- 10 inch or 12 inch high resolution color display
- Anti-glare multi-touch screen with gloves support
- IP65/IP67 protection class
- Wide operating temperature range: -20 to 55 °C
- Support for tethered and cordless barcode scanners
- Multiple mounting options for versatile usage
- EASEOFCARE Service Plans available for protection
Specifications:
- Wireless Communications:
- WLAN: IEEE 802.11 a/b/g/n
- Bluetooth® Wireless Technology v4.0
- Dimensions:
- 10 inch: 27.8 x 22.3 x 6.4 cm
- 12 inch: 32.4 x 25.1 x 7.1 cm
- Operating Temperature:
- Operating: -20 to 55 °C
- Freezer model: -30 °C
- Interfaces:
- 1 x Ethernet 10/100/1000 Mbps
- 3 x USB 2.0 Type A
- 1 x USB 3.0 Type A
- Weight:
- 10 inch Standard Models: 3.6 Kg
- 12 inch Standard Models: 4.7 Kg
- Warranty: 1-Year Factory Warranty
Datalogic 94R511223 Data Terminal Overview
The Rhino II™ vehicle mount computers, available in both 10" and 12" display sizes, set the standard for ruggedness in the warehouse. A sealed design tested to IP65/IP67 ensures operation in the toughest environments. A dedicated freezer-rated model with integrated display heater allows use in and out of cold storage. The capacitive touch models feature 3 mm anti-glare armored glass, while still allowing use of gloves.
Tailored for warehouse management, the Rhino vehicle mount computer increases productivity with its easy integration of PowerScan or other automated data collection devices.
The Rhino II offers a wide choice of Operating Systems: Windows Embedded Compact 7 (WEC7), Windows Embedded Standard 7, Windows 10 IoT Enterprise and the new Android™ 7.1
Technical Information
Processor & Chipset
Processor Core:
Quad-core (4 Core)
Processor Speed:
1 GHz
Memory
Standard Memory:
1 GB
Flash Memory:
32 GB
Memory Card Supported:
SDHC
Display & Graphics
Screen Size:
12.1"
Graphics Modes:
XGA
Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Display Resolution:
1024 x 768
Network & Communication
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Power Description
Power Source:
Power Supply
Software
Operating System:
Windows Embedded Standard 7
Physical Characteristics
Weight (Approximate):
10.36 lb
Miscellaneous
Certifications & Standards:
- CE
- FCC
- IP65
- IP67
- EN 60721-3-5: 1998
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
Recommended Accessories
Category
- Computer Accessories (3)
- Data Networking Device (3)
- Datalogic Fixed/Vehicle Mount Data Terminal (38)
- Forklift Fixed/Vehicle Mount Data Terminal (23)
- General Software (5)
- Mobile Computer Accessories (4)
- Network Antennas (1)
- Spare Parts (4)
- Terminal Accessories (1)
- Vehicle Fixed/Vehicle Mount Data Terminal (23)
Recommended Accessories for Model: Datalogic 94R511223 Data Terminal
Top Computer Accessories Purchased With Datalogic 94R511223
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47 -
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$657.47 -
Datalogic 94ACC1374 AccessoryKeyboard, Compact, Cable Connectivity, External, QWERTY layoutItem on backorder — chat for lead time$745.13
Top Data Networking Device Purchased With Datalogic 94R511223
-
Datalogic 94R722255 Data NetworkingDatalogic Rhino II Rugged Vehicle Mount Computer, 12" CAP HB, VDC 12-48V, INT ANT, UPS, 64GB, CFAST, SUMMIT PE15N, I5 CORE 8GB, WIN 10 IOTItem on backorder — chat for lead time$7,079.63 -
Datalogic 94R211235 Data NetworkingDatalogic Rhino II Forklife Screen, 10" RES STD, VDC 12-48V INT ANT, 32GB, SUMMIT PE15N, QC, 4GB, WIN IOTItem on backorder — chat for lead time$4,185.33 -
Datalogic 94R211225 Data NetworkingDatalogic Rhino II Forklife Screen, 10" RES STD, VDC 12-48V INT ANT, 32GB, SUMMIT PE15N, DC, 4GB, WIN IOTItem on backorder — chat for lead time$3,886.84
Top Datalogic Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R511223
-
Datalogic 94ACC0157 Data TerminalCable, Datalogic Rhino II, Screen Blanking RS-232 CableItem on backorder — chat for lead time$136.37 -
Datalogic 94ACC0158 Data TerminalKeyboard, 24 Key, Right Side Mount, 10 Key LayoutItem on backorder — chat for lead time$718.83 -
Datalogic 94ACC0159 Data TerminalCover, Datalogic SH15 Blackline, Top Cover for LTE WWAN USB and Dual AntenasItem on backorder — chat for lead time$211.82
Top Forklift Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R511223
-
Datalogic 94R511225 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows 10 IoT, 12-48 Vdc, Internal Antenna, Summit PE15N, E3826 DCItem on backorder — chat for lead time$3,663.57 -
Datalogic 94R521235 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 12.1" Display, 12-48 Vdc, 1024 x 768, Internal Antenna, Windows 10 IoT, Enterprise Quad Core/1.9GHz Processor, 4GB RAM/32GB Flash, Laird M2SD50, Summit PE15N, 802.11a/b/g/n, Wi-Fi, Bluetooth 4.0, DC Power CableItem on backorder — chat for lead time$4,725.13 -
Datalogic 94R511101 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows Embedded Compact 7, 12-48 Vdc, Internal Antenna, Laird M2SD50, QMXItem on backorder — chat for lead time$3,783.72
Top General Software Purchased With Datalogic 94R511223
-
Datalogic 94A101121 SoftwareSoftware, Datalogic Rhino II, StayLinked SmartTE With 1 Year Maintenance, 1 License, Compatible with PC and MacIn Stock$170.41 -
Datalogic 95A101135 SoftwareSoftware, Datalogic Joya Touch A6, Ivanti Android Velocity TE Client, 1 License, Powered by Wavelink, WL # 140-LI-VELOCTE, Requires Maintenance P/N ZSS5VELTE1Item on backorder — chat for lead time$232.20 -
Datalogic ZSS5VELTE1 SoftwareSoftware, Datalogic Joya Touch A6, Ivanti Android Velocity TE Client, 1 Year of Maintenance Included, Powered By Wavelink, WL # 140-MA-VELOCTEIn Stock$112.25
Top Mobile Computer Accessories Purchased With Datalogic 94R511223
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 94ACC0034 Spare PartsMount, Datalogic SH15, RAM Mount with Round Base, D Size, 2.25 InchesItem on backorder — chat for lead time$206.26
Top Network Antennas Purchased With Datalogic 94R511223
-
Datalogic 94ACC0163 Data TerminalAntenna, Datalogic Rhino II, Roof Mount Dome, 4 dBi, 2.4 - 5.9 GHz, Top Cover, 3 Meter Cable, Certified for 10 Inch Models OnlyItem on backorder — chat for lead time$596.12
Top Spare Parts Purchased With Datalogic 94R511223
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 94ACC0034 Spare PartsMount, Datalogic SH15, RAM Mount with Round Base, D Size, 2.25 InchesItem on backorder — chat for lead time$206.26
Top Terminal Accessories Purchased With Datalogic 94R511223
-
Datalogic 94ACC1374 AccessoryKeyboard, Compact, Cable Connectivity, External, QWERTY layoutItem on backorder — chat for lead time$745.13
Top Vehicle Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R511223
-
Datalogic 94R511225 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows 10 IoT, 12-48 Vdc, Internal Antenna, Summit PE15N, E3826 DCItem on backorder — chat for lead time$3,663.57
-
Datalogic 94R521235 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 12.1" Display, 12-48 Vdc, 1024 x 768, Internal Antenna, Windows 10 IoT, Enterprise Quad Core/1.9GHz Processor, 4GB RAM/32GB Flash, Laird M2SD50, Summit PE15N, 802.11a/b/g/n, Wi-Fi, Bluetooth 4.0, DC Power CableItem on backorder — chat for lead time$4,725.13
-
Datalogic 94R511101 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows Embedded Compact 7, 12-48 Vdc, Internal Antenna, Laird M2SD50, QMXItem on backorder — chat for lead time$3,783.72
Frequently Asked Questions
What makes the DataLogic Rhino II suitable for warehouse and forklift operations?
The Rhino II is purpose-built for warehouse management with a sealed IP65/IP67 design that operates in the toughest environments. Its rugged cast aluminum construction, combined with integrated ignition sense and optional battery backup, reduces errors during receiving, put-away, picking, and shipping activities while protecting against data loss. We offer the Rhino II as the industry standard for vehicle-mounted warehouse computers.
Can the DataLogic Rhino II be used in freezer and cold storage environments?
Yes, DataLogic offers a dedicated freezer-rated model of the Rhino II with an integrated display heater that allows operation in and out of cold storage. This extended temperature variant maintains full functionality in freezing conditions, making it ideal for facilities requiring temperature-controlled warehouse operations. Contact us today to specify the cold storage configuration for your application.
What display options and input methods are available for the Rhino II?
The Rhino II is available in both 10" and 12" display sizes with capacitive touch technology and 3mm anti-glare armored glass that works with gloved hands. The system supports multiple input options including ABCD or QWERTY external keyboards, a dedicated software keyboard with multitude of layouts and languages, and integration with handheld barcode scanners like the DataLogic PowerScan for quick data entry. Visit barcodesinc.com to explore all configuration options available from us.
What are the power specifications and backup capabilities of the Rhino II?
The Rhino II features an internal isolated power supply rated for 12-48 Vdc operation with integrated power loss detection and optional battery backup for data protection. The system includes ignition sense to automatically control power, eliminating the need for external pre-regulators and reducing installation costs. We offer multiple power configurations to match your vehicle and facility requirements.
What connectivity and networking options does the DataLogic Rhino II provide?
The Rhino II includes IEEE 802.11a/b/g/n wireless connectivity, serial and USB ports for flexible device integration and data transfer. The system runs Windows Embedded Standard 7 operating system with a Freescale quad-core 1 GHz processor, 1GB RAM, and 32GB Flash memory to support warehouse management applications. We offer the Rhino II with comprehensive connectivity options for seamless warehouse system integration.
How does the Rhino II handle different mounting and space constraints?
The Rhino II is designed with versatility in mind, offering various mounting brackets and RAM mount options to fit different vehicle configurations and space constraints. Its compact design with optional software keyboard layouts allows adaptation to minimum footprint requirements while maintaining full functionality. Contact us today to discuss mounting solutions that fit your specific warehouse vehicle and facility layout.
