Datalogic 94R202235 Data Terminal
Full specifications (PDF)

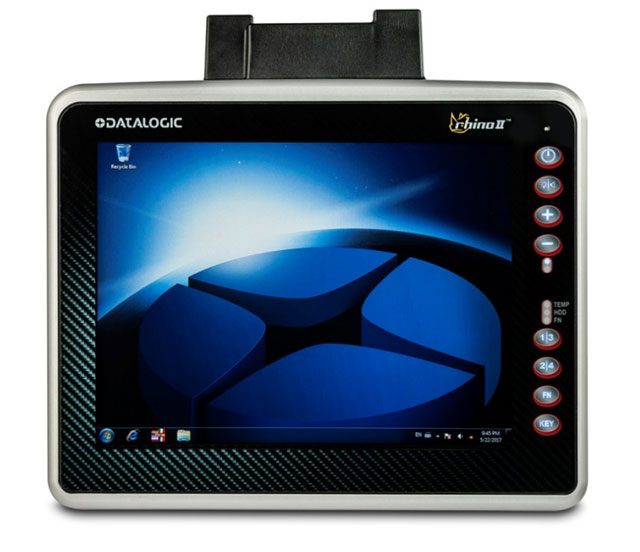

Datalogic Rhino II Data Terminal Model Overview
Key Features:
- Choice of Microsoft Operating Systems or Android™ 7.1
- 10 inch or 12 inch high resolution color display
- Anti-glare multi-touch screen with gloves support
- IP65/IP67 protection class
- Wide operating temperature range: -20 to 55 °C
- Support for tethered and cordless barcode scanners
- Multiple mounting options for versatile usage
- EASEOFCARE Service Plans available for protection
Specifications:
- Wireless Communications:
- WLAN: IEEE 802.11 a/b/g/n
- Bluetooth® Wireless Technology v4.0
- Dimensions:
- 10 inch: 27.8 x 22.3 x 6.4 cm
- 12 inch: 32.4 x 25.1 x 7.1 cm
- Operating Temperature:
- Operating: -20 to 55 °C
- Freezer model: -30 °C
- Interfaces:
- 1 x Ethernet 10/100/1000 Mbps
- 3 x USB 2.0 Type A
- 1 x USB 3.0 Type A
- Weight:
- 10 inch Standard Models: 3.6 Kg
- 12 inch Standard Models: 4.7 Kg
- Warranty: 1-Year Factory Warranty
Recommended Accessories
Category
- Computer Accessories (3)
- Data Networking Device (3)
- Datalogic Fixed/Vehicle Mount Data Terminal (38)
- Forklift Fixed/Vehicle Mount Data Terminal (23)
- General Software (5)
- Mobile Computer Accessories (4)
- Network Antennas (1)
- Spare Parts (4)
- Terminal Accessories (1)
- Vehicle Fixed/Vehicle Mount Data Terminal (23)
Recommended Accessories for Model: Datalogic 94R202235 Data Terminal
Top Computer Accessories Purchased With Datalogic 94R202235
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47 -
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$657.47 -
Datalogic 94ACC1374 AccessoryKeyboard, Compact, Cable Connectivity, External, QWERTY layoutItem on backorder — chat for lead time$745.13
Top Data Networking Device Purchased With Datalogic 94R202235
-
Datalogic 94R722255 Data NetworkingDatalogic Rhino II Rugged Vehicle Mount Computer, 12" CAP HB, VDC 12-48V, INT ANT, UPS, 64GB, CFAST, SUMMIT PE15N, I5 CORE 8GB, WIN 10 IOTItem on backorder — chat for lead time$7,079.63 -
Datalogic 94R211235 Data NetworkingDatalogic Rhino II Forklife Screen, 10" RES STD, VDC 12-48V INT ANT, 32GB, SUMMIT PE15N, QC, 4GB, WIN IOTItem on backorder — chat for lead time$4,185.33 -
Datalogic 94R211225 Data NetworkingDatalogic Rhino II Forklife Screen, 10" RES STD, VDC 12-48V INT ANT, 32GB, SUMMIT PE15N, DC, 4GB, WIN IOTItem on backorder — chat for lead time$3,886.84
Top Datalogic Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R202235
-
Datalogic 94ACC0157 Data TerminalCable, Datalogic Rhino II, Screen Blanking RS-232 CableItem on backorder — chat for lead time$136.37 -
Datalogic 94ACC0158 Data TerminalKeyboard, 24 Key, Right Side Mount, 10 Key LayoutItem on backorder — chat for lead time$718.83 -
Datalogic 94ACC0159 Data TerminalCover, Datalogic SH15 Blackline, Top Cover for LTE WWAN USB and Dual AntenasItem on backorder — chat for lead time$211.82
Top Forklift Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R202235
-
Datalogic 94R511225 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows 10 IoT, 12-48 Vdc, Internal Antenna, Summit PE15N, E3826 DCItem on backorder — chat for lead time$3,663.57 -
Datalogic 94R521235 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 12.1" Display, 12-48 Vdc, 1024 x 768, Internal Antenna, Windows 10 IoT, Enterprise Quad Core/1.9GHz Processor, 4GB RAM/32GB Flash, Laird M2SD50, Summit PE15N, 802.11a/b/g/n, Wi-Fi, Bluetooth 4.0, DC Power CableItem on backorder — chat for lead time$4,725.13 -
Datalogic 94R511101 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows Embedded Compact 7, 12-48 Vdc, Internal Antenna, Laird M2SD50, QMXItem on backorder — chat for lead time$3,783.72
Top General Software Purchased With Datalogic 94R202235
-
Datalogic 94A101121 SoftwareSoftware, Datalogic Rhino II, StayLinked SmartTE With 1 Year Maintenance, 1 License, Compatible with PC and MacIn Stock$170.41 -
Datalogic 95A101135 SoftwareSoftware, Datalogic Joya Touch A6, Ivanti Android Velocity TE Client, 1 License, Powered by Wavelink, WL # 140-LI-VELOCTE, Requires Maintenance P/N ZSS5VELTE1Item on backorder — chat for lead time$232.20 -
Datalogic ZSS5VELTE1 SoftwareSoftware, Datalogic Joya Touch A6, Ivanti Android Velocity TE Client, 1 Year of Maintenance Included, Powered By Wavelink, WL # 140-MA-VELOCTEIn Stock$112.25
Top Mobile Computer Accessories Purchased With Datalogic 94R202235
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 94ACC0034 Spare PartsMount, Datalogic SH15, RAM Mount with Round Base, D Size, 2.25 InchesItem on backorder — chat for lead time$206.26
Top Network Antennas Purchased With Datalogic 94R202235
-
Datalogic 94ACC0163 Data TerminalAntenna, Datalogic Rhino II, Roof Mount Dome, 4 dBi, 2.4 - 5.9 GHz, Top Cover, 3 Meter Cable, Certified for 10 Inch Models OnlyItem on backorder — chat for lead time$596.12
Top Spare Parts Purchased With Datalogic 94R202235
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 94ACC0034 Spare PartsMount, Datalogic SH15, RAM Mount with Round Base, D Size, 2.25 InchesItem on backorder — chat for lead time$206.26
Top Terminal Accessories Purchased With Datalogic 94R202235
-
Datalogic 94ACC1374 AccessoryKeyboard, Compact, Cable Connectivity, External, QWERTY layoutItem on backorder — chat for lead time$745.13
Top Vehicle Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R202235
-
Datalogic 94R511225 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows 10 IoT, 12-48 Vdc, Internal Antenna, Summit PE15N, E3826 DCItem on backorder — chat for lead time$3,663.57
-
Datalogic 94R521235 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 12.1" Display, 12-48 Vdc, 1024 x 768, Internal Antenna, Windows 10 IoT, Enterprise Quad Core/1.9GHz Processor, 4GB RAM/32GB Flash, Laird M2SD50, Summit PE15N, 802.11a/b/g/n, Wi-Fi, Bluetooth 4.0, DC Power CableItem on backorder — chat for lead time$4,725.13
-
Datalogic 94R511101 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows Embedded Compact 7, 12-48 Vdc, Internal Antenna, Laird M2SD50, QMXItem on backorder — chat for lead time$3,783.72
Frequently Asked Questions
What makes the DataLogic Rhino II suitable for warehouse and forklift operations?
The Rhino II is purpose-built for warehouse management with a sealed IP65/IP67 design that operates in the toughest environments, from wet to dry conditions. Its rugged cast aluminum construction and integrated power management reduce errors during receiving, put-away, picking, and shipping activities, making it the industry standard for vehicle-mounted warehouse computers. We offer the Rhino II in both 10" and 12" display sizes to fit different mounting and space constraints.
Can the DataLogic Rhino II be used in cold storage environments?
Yes, DataLogic offers a dedicated freezer-rated model of the Rhino II with an integrated display heater that allows safe operation in and out of cold storage facilities. This specialized variant maintains full functionality in extended temperature conditions, making it ideal for operations that require movement between temperature-controlled zones. Contact us today to specify the cold storage-rated configuration for your application.
What are the display options and specifications for the Rhino II?
The DataLogic Rhino II is available with 10.4" and 12" display options, both featuring 1024 x 768 resolution. The resistive touch models come with 3mm anti-glare armored glass that allows operation with gloves, while capacitive touch variants are also available. The sealed display design ensures visibility and usability even in harsh warehouse environments.
What power supply options does the Rhino II vehicle mount computer provide?
The Rhino II features an internal isolated power supply rated for 24-48 Vdc, with an optional battery backup system for protection against data loss during power interruptions. The computer includes integrated power loss detection and ignition sense to automatically control power, eliminating the need for external pre-regulators and reducing installation costs. This versatile power architecture accommodates various vehicle electrical systems.
What connectivity and integration options are available with the Rhino II?
The Rhino II includes an internal antenna for wireless connectivity and runs Windows 10 IoT operating system with 4GB/64GB storage on a Quad-core 1 GHz processor. It supports integration with handheld barcode scanners like DataLogic's PowerScan for quick data entry and location confirmations. Available from us with flexible mounting options including RAM mounts and ABCD or QWERTY external keyboards to suit your warehouse workflow.
How does the Rhino II compare to previous generation vehicle mount computers?
The Rhino II represents the next generation of vehicle mount computers with enhanced ruggedness, sealed IP65/IP67 design, and modern Windows 10 IoT operating system replacing older CE-based platforms. It's designed and manufactured in Germany for superior quality and reliability, offering improved processing power and storage capacity while maintaining backward compatibility with existing warehouse management applications. Contact us today to discuss how the Rhino II upgrade can improve your operation's productivity and reduce errors.
