Datalogic 94R112235 Data Terminal
Part Number:
94R112235
Model:
Rhino II
Full specifications (PDF)

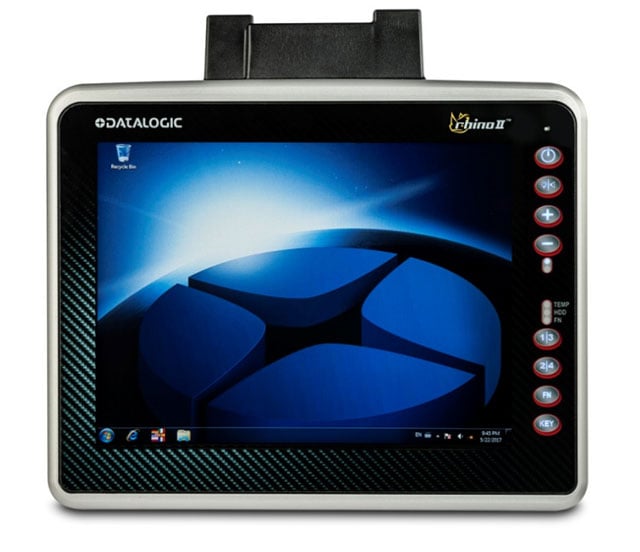

Datalogic Rhino II Data Terminal Model Overview
The Rhino IITM Vehicle Mounted Computer is the ultimate rugged solution for warehouse management, designed to perform in the harshest environments. With both 10" and 12" display options, this computer features a robust design sealed to IP65/IP67 standards, making it ideal for cold storage and outdoor use. Its integrated display heater ensures functionality even in extreme cold, while the capacitive touch screen offers glove support for maximum usability. Tailored for enhanced productivity, the Rhino II minimizes errors during critical warehouse operations such as receiving, picking, and shipping.
Key Features:
Specifications:
Key Features:
- Choice of Microsoft Operating Systems or Android™ 7.1
- 10 inch or 12 inch high resolution color display
- Anti-glare multi-touch screen with gloves support
- IP65/IP67 protection class
- Wide operating temperature range: -20 to 55 °C
- Support for tethered and cordless barcode scanners
- Multiple mounting options for versatile usage
- EASEOFCARE Service Plans available for protection
Specifications:
- Wireless Communications:
- WLAN: IEEE 802.11 a/b/g/n
- Bluetooth® Wireless Technology v4.0
- Dimensions:
- 10 inch: 27.8 x 22.3 x 6.4 cm
- 12 inch: 32.4 x 25.1 x 7.1 cm
- Operating Temperature:
- Operating: -20 to 55 °C
- Freezer model: -30 °C
- Interfaces:
- 1 x Ethernet 10/100/1000 Mbps
- 3 x USB 2.0 Type A
- 1 x USB 3.0 Type A
- Weight:
- 10 inch Standard Models: 3.6 Kg
- 12 inch Standard Models: 4.7 Kg
- Warranty: 1-Year Factory Warranty
Brand
Datalogic
Model
Rhino II
Recommended Accessories
Category
- Computer Accessories (3)
- Data Networking Device (3)
- Datalogic Fixed/Vehicle Mount Data Terminal (38)
- Forklift Fixed/Vehicle Mount Data Terminal (23)
- General Software (5)
- Mobile Computer Accessories (4)
- Network Antennas (1)
- Spare Parts (4)
- Terminal Accessories (1)
- Vehicle Fixed/Vehicle Mount Data Terminal (23)
Recommended Accessories for Model: Datalogic 94R112235 Data Terminal
Top Computer Accessories Purchased With Datalogic 94R112235
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47 -
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$657.47 -
Datalogic 94ACC1374 AccessoryKeyboard, Compact, Cable Connectivity, External, QWERTY layoutItem on backorder — chat for lead time$745.13
Top Data Networking Device Purchased With Datalogic 94R112235
-
Datalogic 94R722255 Data NetworkingDatalogic Rhino II Rugged Vehicle Mount Computer, 12" CAP HB, VDC 12-48V, INT ANT, UPS, 64GB, CFAST, SUMMIT PE15N, I5 CORE 8GB, WIN 10 IOTItem on backorder — chat for lead time$7,079.63 -
Datalogic 94R211235 Data NetworkingDatalogic Rhino II Forklife Screen, 10" RES STD, VDC 12-48V INT ANT, 32GB, SUMMIT PE15N, QC, 4GB, WIN IOTItem on backorder — chat for lead time$4,185.33 -
Datalogic 94R211225 Data NetworkingDatalogic Rhino II Forklife Screen, 10" RES STD, VDC 12-48V INT ANT, 32GB, SUMMIT PE15N, DC, 4GB, WIN IOTItem on backorder — chat for lead time$3,886.84
Top Datalogic Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R112235
-
Datalogic 94ACC0157 Data TerminalCable, Datalogic Rhino II, Screen Blanking RS-232 CableItem on backorder — chat for lead time$136.37 -
Datalogic 94ACC0158 Data TerminalKeyboard, 24 Key, Right Side Mount, 10 Key LayoutItem on backorder — chat for lead time$718.83 -
Datalogic 94ACC0159 Data TerminalCover, Datalogic SH15 Blackline, Top Cover for LTE WWAN USB and Dual AntenasItem on backorder — chat for lead time$211.82
Top Forklift Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R112235
-
Datalogic 94R511225 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows 10 IoT, 12-48 Vdc, Internal Antenna, Summit PE15N, E3826 DCItem on backorder — chat for lead time$3,663.57 -
Datalogic 94R521235 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 12.1" Display, 12-48 Vdc, 1024 x 768, Internal Antenna, Windows 10 IoT, Enterprise Quad Core/1.9GHz Processor, 4GB RAM/32GB Flash, Laird M2SD50, Summit PE15N, 802.11a/b/g/n, Wi-Fi, Bluetooth 4.0, DC Power CableItem on backorder — chat for lead time$4,725.13 -
Datalogic 94R511101 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows Embedded Compact 7, 12-48 Vdc, Internal Antenna, Laird M2SD50, QMXItem on backorder — chat for lead time$3,783.72
Top General Software Purchased With Datalogic 94R112235
-
Datalogic 94A101121 SoftwareSoftware, Datalogic Rhino II, StayLinked SmartTE With 1 Year Maintenance, 1 License, Compatible with PC and MacIn Stock$170.41 -
Datalogic 95A101135 SoftwareSoftware, Datalogic Joya Touch A6, Ivanti Android Velocity TE Client, 1 License, Powered by Wavelink, WL # 140-LI-VELOCTE, Requires Maintenance P/N ZSS5VELTE1Item on backorder — chat for lead time$232.20 -
Datalogic ZSS5VELTE1 SoftwareSoftware, Datalogic Joya Touch A6, Ivanti Android Velocity TE Client, 1 Year of Maintenance Included, Powered By Wavelink, WL # 140-MA-VELOCTEIn Stock$112.25
Top Mobile Computer Accessories Purchased With Datalogic 94R112235
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 94ACC0034 Spare PartsMount, Datalogic SH15, RAM Mount with Round Base, D Size, 2.25 InchesItem on backorder — chat for lead time$206.26
Top Network Antennas Purchased With Datalogic 94R112235
-
Datalogic 94ACC0163 Data TerminalAntenna, Datalogic Rhino II, Roof Mount Dome, 4 dBi, 2.4 - 5.9 GHz, Top Cover, 3 Meter Cable, Certified for 10 Inch Models OnlyItem on backorder — chat for lead time$596.12
Top Spare Parts Purchased With Datalogic 94R112235
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD LayoutItem on backorder — chat for lead time$657.47
-
Datalogic 94ACC0034 Spare PartsMount, Datalogic SH15, RAM Mount with Round Base, D Size, 2.25 InchesItem on backorder — chat for lead time$206.26
Top Terminal Accessories Purchased With Datalogic 94R112235
-
Datalogic 94ACC1374 AccessoryKeyboard, Compact, Cable Connectivity, External, QWERTY layoutItem on backorder — chat for lead time$745.13
Top Vehicle Fixed/Vehicle Mount Data Terminal Purchased With Datalogic 94R112235
-
Datalogic 94R511225 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows 10 IoT, 12-48 Vdc, Internal Antenna, Summit PE15N, E3826 DCItem on backorder — chat for lead time$3,663.57
-
Datalogic 94R521235 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 12.1" Display, 12-48 Vdc, 1024 x 768, Internal Antenna, Windows 10 IoT, Enterprise Quad Core/1.9GHz Processor, 4GB RAM/32GB Flash, Laird M2SD50, Summit PE15N, 802.11a/b/g/n, Wi-Fi, Bluetooth 4.0, DC Power CableItem on backorder — chat for lead time$4,725.13
-
Datalogic 94R511101 Data TerminalData Terminal, Datalogic Rhino II Rugged Vehicle Mount Computer, Capacitive Standard, Freescale, Quad-core (4 Core) 1 GHz, 1GB RAM/32GB Flash Memory, 12.1" Display, XGA, 1024 x 768, IEEE 802.11a/b/g/n/Serial/USB, Windows Embedded Compact 7, 12-48 Vdc, Internal Antenna, Laird M2SD50, QMXItem on backorder — chat for lead time$3,783.72
Frequently Asked Questions
What makes the Datalogic Rhino II suitable for warehouse and forklift operations?
The Rhino II is purpose-built for warehouse management and increases productivity by reducing errors during receiving, put-away, picking, and shipping activities. Its sealed design tested to IP65/IP67 ensures operation in the toughest warehouse and factory environments, making it ideal for both standard and demanding forklift applications.
Can the Datalogic 94R112235 operate in freezer and cold storage environments?
Yes, the Rhino II is a dedicated freezer-rated device with an integrated display heater that allows for reliable operation both in and out of cold storage. This makes it suitable for facilities that require temperature-controlled warehouse sections.
What display options are available for the Datalogic Rhino II vehicle mount computer?
The Rhino II is available in both 10" and 12" display sizes to accommodate different mounting and space constraints. The capacitive touch models feature 3mm anti-glare armored glass, which allows for glove operation in warehouse environments.
What power supply specifications does the Rhino II have?
The Rhino II is equipped with an internal isolated power supply rated for 12-48V DC operation, integrated power loss detection, and optional battery backup for protection against data loss. This design eliminates the need for external pre-regulators and facilitates easier installation.
How does the Rhino II integrate with barcode scanning equipment?
The Rhino II vehicle mount computer supports integration with handheld barcode scanners, such as Datalogic's PowerScan, to allow for quick data entry and location confirmations during warehouse operations. This combination enhances accuracy and efficiency in inventory management tasks.
What operating system and processor does the Datalogic 94R112235 use?
The Rhino II runs Windows 10 IoT and features an Intel Atom E3845 quad-core processor with 4GB RAM and 64GB storage capacity. This configuration provides reliable performance for warehouse management applications and software compatibility.
The Datalogic 94R112235 Data Terminal is also known as
DTL-94R112235
or 94R112235.
