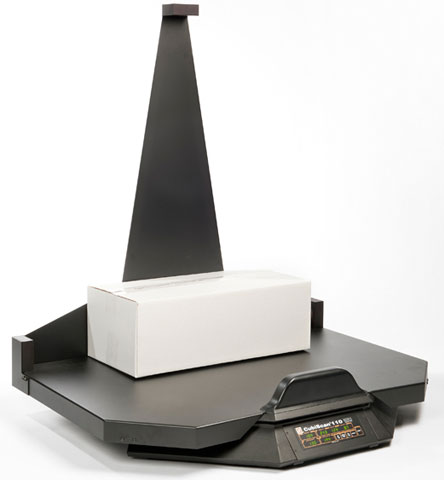

Cubiscan 110 Scale
Cubiscan 110 -
With a new twist on static dimensioning, the CubiScan 110 provides you with a flexible and ergonomic layout for maximum throughput and productivity. Working with its length and width sensors to the sides, the 110 allows for pass-through package processing—ideal for small to medium parcel manifesting and shipment auditing applications. And you'll still enjoy the power and convenience of our unmatched interface features that allow data to be quickly transferred to your shipping or warehouse management system for immediate use. The CubiScan 110 is robust, with a maximum measurement range of 30 x 24 x 36 inches (762 x 610 x 914 mm) and a net weight capacity of 100 lbs (50 Kg). Yet it is precise, with a measurement resolution of 0.1 inches (2 mm) and weight resolution of 0.1 lbs (0.05 kg). The CubiScan 110 is very flexible and can be used as a mobile stand-alone system when deployed on a mobile cart with a portable power supply system, or it can be located between gravity conveyor for quick and efficient processing of parcels in a fast paced manifesting application. With an optional PC-based interface (called Qbit), the CubiScan 110 is capable of managing thousands of data records, can interface to barcode scanning equipment, label printing devices, and can communicate directly (in batch or real-time mode) with your shipping/manifesting software or warehouse management system. Discover how the CubiScan 110 can help eliminate costly charge-backs and make a difference in the most important aspect of your business: the bottom line.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$75.10
Questions? Get help from
a POS Expert!
a POS Expert!
Accessories For Cubiscan 110 Scale
Category
Cubiscan 110 Scale Options
-
Cubiscan 14529 Scale
CubiScan 110, Dimensioning System For Pass- Through Package Processing. For Domestic Use Only. -
Cubiscan 110 Scale
With a new twist on static dimensioning, the CubiScan 110 provides you with a flexible and ergonomic layout for maximum throughput and productivity. Working with its length and width sensors to the sides, the 110 allows for pass-through package processing ideal for small to medium parcel manifesting and shipment auditing applications For Domestic Use Only -
Cubiscan 15971 Dimensioning System
Dimensioning System, Cubiscan 110, Built to dimension and weigh parcels in outbound shipping environments, this unit can measure up to 6" more than the Cubiscan 100, ideal for placing in between gravity conveyor as the open sides allow for easy package pass through
Cubiscan 110 Scale Model Overview
The CubiScan® 110 is a powerful and versatile solution for freight manifesting and auditing applications. Designed for small to medium parcel processing, it provides precise dimensional-weight data to help calculate shipping charges and eliminate costly charge-backs. Its ergonomic design allows for easy mobility, making it an ideal choice for busy shipping and warehouse environments. With a robust measurement range and user-friendly features, the CubiScan 110 enhances productivity and seamlessly integrates into your existing shipping systems. Experience increased efficiency and accuracy with this innovative weighing and measuring system.
Key Features
Specifications
Key Features
- Flexible mobile workstation with a sturdy cart and portable power supply.
- High measurement accuracy with a resolution of 0.1 inches (2 mm) and weight capacity of 100 lbs (50 kg).
- User-definable "dim factors" for customizable dimensional-weight calculations.
- Comprehensive connectivity options, including serial and Ethernet ports.
- Integrated QBIT™ PC interface software for real-time or batch data transfer.
Specifications
- Physical Dimensions:
- Length: 32 in (813 mm)
- Width: 32 in (813 mm)
- Height: 48 in (1,220 mm)
- Weight: 70 lbs (32 kg)
- Measurement Range:
- Length: 0.5 in (13 mm) to 30 in (762 mm)
- Width: 0.5 in (13 mm) to 24 in (610 mm)
- Height: 0.5 in (13 mm) to 36 in (914 mm)
- Measurement Increment: 0.1 in (2 mm)
- Weight Capacity:
- Weight Capacity: 100 lbs (50 kg)
- Weight Increment: 0.1 lbs (0.05 kg)
- Connectivity:
- 2 serial ports, EIA RS232-C
- 1 serial printer port, EIA RS232-C
- 1 Ethernet connection, 10 BaseT
- Power Requirements: 95-250 VAC, 47-63 Hz
- Operating Conditions:
- Temperature: 14° to 104° F (-10° to 40° C)
- Humidity: 0-90% non-condensing
