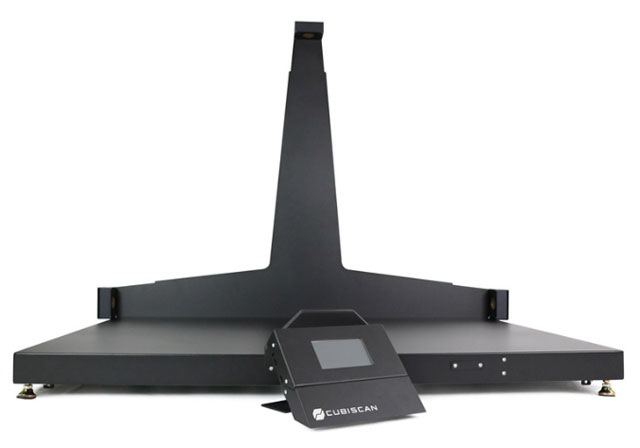

Cubiscan 15971 Dimensioning System

The CubiScan® 110 is a powerful and versatile solution for freight manifesting and auditing applications. Designed for small to medium parcel processing, it provides precise dimensional-weight data to help calculate shipping charges and eliminate costly charge-backs. Its ergonomic design allows for easy mobility, making it an ideal choice for busy shipping and warehouse environments. With a robust measurement range and user-friendly features, the CubiScan 110 enhances productivity and seamlessly integrates into your existing shipping systems. Experience increased efficiency and accuracy with this innovative weighing and measuring system.

Key Features

• Flexible mobile workstation with a sturdy cart and portable power supply.
• High measurement accuracy with a resolution of 0.1 inches (2 mm) and weight capacity of 100 lbs (50 kg).
• User-definable "dim factors" for customizable dimensional-weight calculations.
• Comprehensive connectivity options, including serial and Ethernet ports.
• Integrated QBIT™ PC interface software for real-time or batch data transfer.

Specifications

• Physical Dimensions:
• Length: 32 in (813 mm)
• Width: 32 in (813 mm)
• Height: 48 in (1,220 mm)
• Weight: 70 lbs (32 kg)
• Measurement Range:
• Length: 0.5 in (13 mm) to 30 in (762 mm)
• Width: 0.5 in (13 mm) to 24 in (610 mm)
• Height: 0.5 in (13 mm) to 36 in (914 mm)
• Measurement Increment: 0.1 in (2 mm)
• Weight Capacity:
• Weight Capacity: 100 lbs (50 kg)
• Weight Increment: 0.1 lbs (0.05 kg)
• Connectivity:
• 2 serial ports, EIA RS232-C
• 1 serial printer port, EIA RS232-C
• 1 Ethernet connection, 10 BaseT
• Power Requirements: 95-250 VAC, 47-63 Hz
• Operating Conditions:
• Temperature: 14° to 104° F (-10° to 40° C)
• Humidity: 0-90% non-condensing
