CradlePoint MA3-170F600M-XFA Data Networking

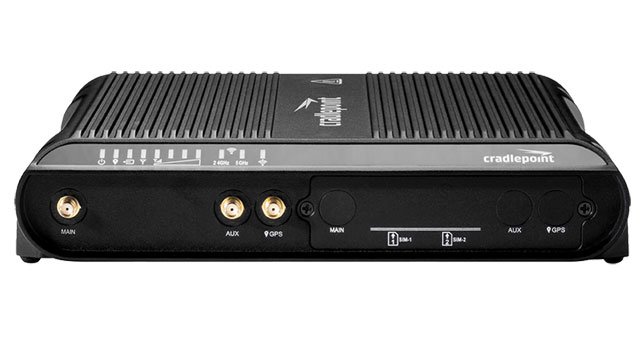

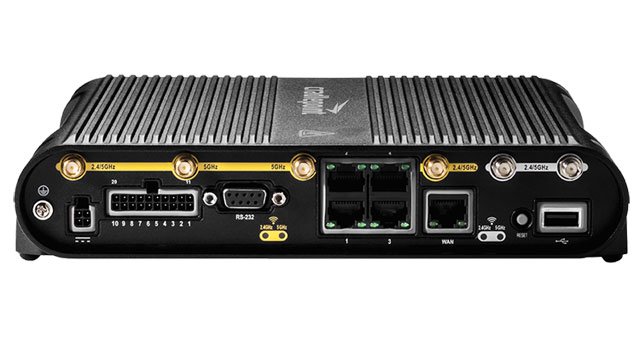

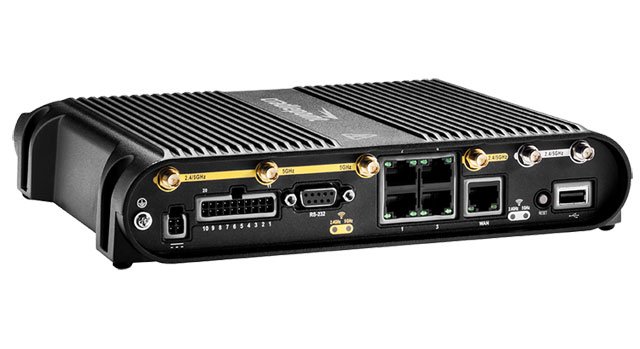

The Cradlepoint COR IBR1700 is a robust mobile networking solution designed for high-performance connectivity in challenging environments. With its integrated 3G/4G modem and dual-band WiFi capabilities, this hardened metal router offers reliable and secure internet access for up to 192 devices. Its advanced features, including failover capabilities, load balancing, and GPS support, make it ideal for businesses that demand reliable connectivity on the go. The COR IBR1700 ensures seamless operation and redundancy, providing peace of mind in any scenario.

Key features:

• Dual-modem capability with MC400 modem slot for enhanced flexibility.
• Up to 600 Mbps LTE Advanced speeds with automatic carrier selection.
• Simultaneous Tri-Band WiFi supporting 192 connected devices.
• Advanced security features including 802.1x authentication and application-aware firewall.
• Remote management via Cradlepoint NetCloud Manager for real-time monitoring.

Specifications:

• WAN:
  • Integrated 600M LTE Advanced modem
  • Dual-modem capable with MC400 slot
  • Five LAN/WAN switchable Ethernet ports
• WiFi:
  • Dual-Band 802.11 a/b/g/n/ac, wave 2 MU-MIMO
  • Up to 192 connected devices (64 @ 2.4 GHz, 128 @ 5 GHz)
• Security:
  • 802.1x authentication and application-aware firewall
  • RADIUS and TACACS+ support
• Operating Environment:
  • Temperature range: -30 °C to 70 °C
  • Humidity: 5% to 95% non-condensing
• Power:
  • DC input: 9-36 VDC
  • Power consumption: 10 mW (sleep) to 24 W (heavy usage)
