Full specifications (PDF)
Wi-Fi Generation:
Wi-Fi 5

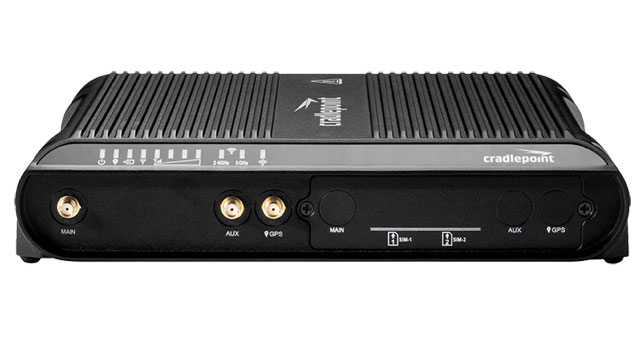

CradlePoint MA3-1700600M-NNA Wireless Router
Part Number:
MA3-1700600M-NNA
Model:
IBR1700
CradlePoint IBR1700 Data Networking Model Overview
The Cradlepoint COR IBR1700 is a robust mobile networking solution designed for high-performance connectivity in challenging environments. With its integrated 3G/4G modem and dual-band WiFi capabilities, this hardened metal router offers reliable and secure internet access for up to 192 devices. Its advanced features, including failover capabilities, load balancing, and GPS support, make it ideal for businesses that demand reliable connectivity on the go. The COR IBR1700 ensures seamless operation and redundancy, providing peace of mind in any scenario.
Key features:
- Dual-modem capability with MC400 modem slot for enhanced flexibility.
- Up to 600 Mbps LTE Advanced speeds with automatic carrier selection.
- Simultaneous Tri-Band WiFi supporting 192 connected devices.
- Advanced security features including 802.1x authentication and application-aware firewall.
- Remote management via Cradlepoint NetCloud Manager for real-time monitoring.
Specifications:
- WAN:
- Integrated 600M LTE Advanced modem
- Dual-modem capable with MC400 slot
- Five LAN/WAN switchable Ethernet ports
- WiFi:
- Dual-Band 802.11 a/b/g/n/ac, wave 2 MU-MIMO
- Up to 192 connected devices (64 @ 2.4 GHz, 128 @ 5 GHz)
- Security:
- 802.1x authentication and application-aware firewall
- RADIUS and TACACS+ support
- Operating Environment:
- Temperature range: -30 °C to 70 °C
- Humidity: 5% to 95% non-condensing
- Power:
- DC input: 9-36 VDC
- Power consumption: 10 mW (sleep) to 24 W (heavy usage)
Technical Information
Wireless Specifications
Broadband Transmission Technology:
- Ethernet
- Cellular
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
4G
Cellular Data Connectivity Technology:
- LTE Advanced
- HSPA+
Interfaces/Ports
Number of Network (RJ-45) Ports:
4
USB:
Yes
Number of Broadband (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.7"
Width:
8.8"
Depth:
7.5"
Weight (Approximate):
3.75 lb
Miscellaneous
Package Contents:
- COR IBR1700-600M Modem/Wireless Router
- Ruggedized High-Performance Router With Embedded Business-Class LTE Modem
- Safety, Regulatory, And Warranty Guide
- 4-Wire Power/GPIO Cable (3-meters)
Environmentally Friendly:
Yes
Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Restriction of Hazardous Substances (RoHS) 2
Country of Origin:
Taiwan
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0804879606178
UPC:
804879606178
EAN:
0804879606178
UNSPSC:
43222609
Recommended Accessories
Category
- CradlePoint Charging Cradles and Telecommunications Products (4)
- Data Networking Device Accessories (4)
- Wireless Adapters (1)
Recommended Accessories for Model: CradlePoint MA3-1700600M-NNA Wireless Router
Top CradlePoint Charging Cradles and Telecommunications Products Purchased With CradlePoint MA3-1700600M-NNA
-
CradlePoint 170717-000 AccessoryCOR IBR1700, IBR900/IBR950 POWER SUPPLY INCLUDES US, EU, UK, AU ADAPTERS (-20C TO 60C).In Stock$24.99 -
CradlePoint 170750-000 AccessoryCRADLEPOINT, RACK-MOUNT KIT FOR IBR1700 (INCLUDES 2 WING BRACKETS AND 4 M4 SCREWS).Item on backorder — chat for lead timePlease Call for Pricing or to Purchase -
CradlePoint 170758-000 Wireless AdaptersCRADLEPOINT, OBD-II ADAPTER KIT FOR IBR1700 (INCLUDES ONE OBD-II ADAPTER AND ONE 15 FOOT MALE/MALE NULL MODEM DB9 SERIAL CABLE).In Stock$349.00
Top Data Networking Device Accessories Purchased With CradlePoint MA3-1700600M-NNA
-
CradlePoint 170717-000 AccessoryCOR IBR1700, IBR900/IBR950 POWER SUPPLY INCLUDES US, EU, UK, AU ADAPTERS (-20C TO 60C).In Stock$24.99
-
CradlePoint 170750-000 AccessoryCRADLEPOINT, RACK-MOUNT KIT FOR IBR1700 (INCLUDES 2 WING BRACKETS AND 4 M4 SCREWS).Item on backorder — chat for lead timePlease Call for Pricing or to Purchase
-
CradlePoint 170758-000 Wireless AdaptersCRADLEPOINT, OBD-II ADAPTER KIT FOR IBR1700 (INCLUDES ONE OBD-II ADAPTER AND ONE 15 FOOT MALE/MALE NULL MODEM DB9 SERIAL CABLE).In Stock$349.00
Top Wireless Adapters Purchased With CradlePoint MA3-1700600M-NNA
-
CradlePoint 170758-000 Wireless AdaptersCRADLEPOINT, OBD-II ADAPTER KIT FOR IBR1700 (INCLUDES ONE OBD-II ADAPTER AND ONE 15 FOOT MALE/MALE NULL MODEM DB9 SERIAL CABLE).In Stock$349.00
Frequently Asked Questions
What wireless connectivity options does the CradlePoint IBR1700 provide?
The IBR1700 features LTE Advanced 600 Mbps LTE/HSPA+ connectivity with SIM-based, auto-carrier selection for North American, European, and Asia Pacific carriers, including support for 700 MHz Band 28 in Asia Pacific. It also includes three-radio Gigabit Wave 2 ac WiFi with WiFi as WAN capability and a dedicated third radio for backhaul.
How many Ethernet ports does the IBR1700 router have?
The IBR1700 offers five Gigabit Ethernet ports, providing flexible LAN connectivity for multiple wired devices and network configurations in mobile and stationary deployments.
Can the IBR1700 support redundant connectivity and failover?
Yes, the IBR1700 supports dual-modem capability with an MC400 modem slot for a second modem, as well as failover/failback and load balancing features to ensure continuous network availability. It also supports WiFi as WAN for additional redundancy options.
What VPN and routing capabilities does the IBR1700 include?
The IBR1700 supports IPsec tunnels with up to five concurrent sessions, L2TP, GRE tunneling, and advanced routing protocols including OSPF, BGP, and RIP2. It also features per-interface routing, routing rules, NAT-less routing, and virtual server/port forwarding for sophisticated network configurations.
What management and monitoring features are available for the IBR1700?
The IBR1700 includes Cradlepoint NetCloud Manager (requires subscription), web UI, API, and CLI access for centralized management. It provides data usage alerts at both router and per-client levels, advanced troubleshooting capabilities, device alerts, SNMP support, and SMS control for remote administration.
Is the IBR1700 suitable for mobile deployments like vehicles and command centers?
Yes, the IBR1700 is specifically designed as a ruggedized router for mobile networks in vehicles, mobile command centers, and other environments requiring robust networking with wireless WAN connectivity. It extends SD-WAN value to mobile applications with its hardened metal construction and integrated business-class 3G/4G modem.
The CradlePoint MA3-1700600M-NNA Wireless Router is also known as
MA3-1700600M-NNA
