Brecknell DSB Floor Scale
Brecknell DSB Floor -
The Brecknell DSB platform system meets the demand for a quality scale at a market price that is competitive with all platform providers.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$909.23
Questions? Get help from
a POS Expert!
a POS Expert!
Accessories For Brecknell DSB Floor Scale
Brecknell DSB Floor Scale Options
-
Brecknell 816965006335 Scale
Deck Only, 915 mm x 915 mm, 1250 kg x 0.2 kg / 36" x 36", 2500 lb$909.23 -
Brecknell 816965006328 Scale
Deck Only, 1219 mm x 1219 mm, 2500 kg x 0.5 kg / 48" x 48"; 5000 lb$960.00 -
Brecknell 816965005390 Scale
914 mm / 36", 1250 kg x 0.2 kg / 2500 lb x 0.5 lb$996.92 -
Brecknell 816965005246 Scale
1219 mm / 48", 2500 kg x 0.5 kg / 5000 lb x 1 lb$1,066.15 -
Brecknell 816965006359 Scale
Deck Only, 1219 mm x 1219 mm, 5000 kg x 1 kg / 48" x 48", 10,000 lb$1,070.77 -
Brecknell 816965005413 Scale
1219 mm / 48", 5000 kg x 1 kg / 10,000 lb x 2 lb$1,158.46 -
Brecknell 816965006342 Scale
Deck Only, 1500 mm x 1500 mm, 2500 kg x 0.5 kg / 59" x 59", 5000 lb$1,278.46 -
Brecknell 816965006366 Scale
Deck Only, 1500 mm x 1500 mm, 5000 kg x 1 kg / 59" x 59", 10, 000 lb$1,380.00 -
Brecknell 816965005406 Scale
1500 mm / 59", 2500 kg x 0.5 kg / 5000 lb x 1 lb (actual dimensions 59'''' x 59")$1,380.00 -
Brecknell 816965005420 Scale
1500 mm / 59", 5000 kg x 1 kg / 10,000 lb x 2 lb (actual dimensions 59'''' x 59")$1,486.15

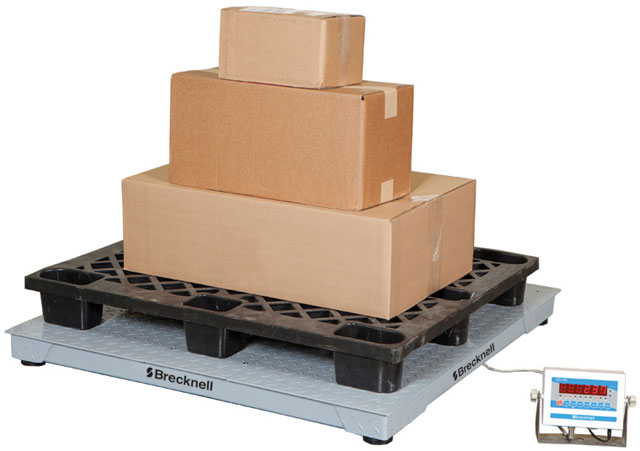

Brecknell DSB Floor Scale Model Overview
The DSB Series Floor Scale Systems offer reliable and robust weighing solutions for various applications including shipping, counting, and check weighing. With a capacity of up to 5000 lb (2500 kg) and precise increments, these scales are ideal for legal trade settings, thanks to their NTEP certification. Built with a sturdy design featuring a thick safety tread top plate and heavy-duty supports, the DSB Series ensures durability in demanding environments. The versatile indicator provides essential functionalities, and the scale can be powered through an included AC adapter or a customer-supplied 12Vdc source, making it exceptionally convenient for any user.
Key features:
- Versatile Indicator: Supports shipping, and totalizing functions.
- Rugged Construction: Thick safety tread plate with heavy-duty wide channel supports.
- Easy Installation: Top access for leveling feet and service support.
- Legal for Trade: NTEP certified with excellent accuracy.
- 3-Year Parts Warranty: Assurance of quality and reliability.
Specifications:
- Capacity: 1250 kg x 0.2 kg / 2500 lb x 0.5 lb; 2500 kg x 0.5 kg / 5000 lb x 1 lb; 5000 kg x 1 kg / 10,000 lb x 2 lb
- Platform Dimensions: 914 mm x 914 mm (36" x 36"), 1219 mm x 1219 mm (48" x 48"), 1524 mm x 1524 mm (59" x 59")
- Height Dimension: Min 102 mm / Max 118 mm (4.0" - 4.6")
- Finish: Powder coat paint
- Load Cells: Four alloy steel potted load cells, NTEP, IP 65 rated
- Power: AC adapter included or external 12Vdc supply
- Operating Temperature: -10° C to 40° C / 14° F to 104° F
