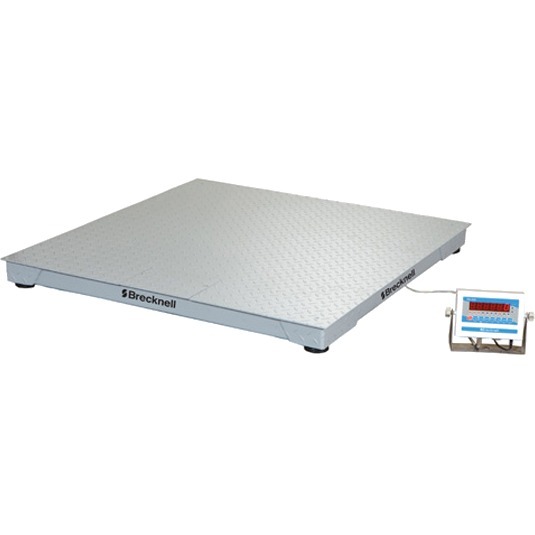

Brecknell 816965006359 Scale

Part Number: 816965006359

Model: DSB Floor

$1,070.77

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Maximum Weight Capacity (Imperial)

10000 lb

Maximum Weight Capacity (SI)

5000 kg

Weight Increment (Imperial)

2 lb

Weight Increment (SI)

1 kg

Product Description:

Deck Only, 1219 mm x 1219 mm, 5000 kg x 1 kg / 48" x 48", 10,000 lb

Explore all Brecknell DSB Floor Scales

Add to Quote

Overview

Full specifications (PDF)

Brecknell DSB Floor Scale Model Overview

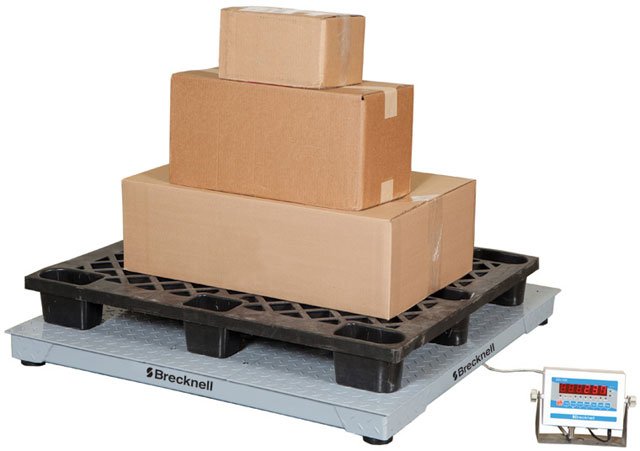

The DSB Series Floor Scale Systems offer reliable and robust weighing solutions for various applications including shipping, counting, and check weighing. With a capacity of up to 5000 lb (2500 kg) and precise increments, these scales are ideal for legal trade settings, thanks to their NTEP certification. Built with a sturdy design featuring a thick safety tread top plate and heavy-duty supports, the DSB Series ensures durability in demanding environments. The versatile indicator provides essential functionalities, and the scale can be powered through an included AC adapter or a customer-supplied 12Vdc source, making it exceptionally convenient for any user.

Key features:

Versatile Indicator: Supports shipping, and totalizing functions.
Rugged Construction: Thick safety tread plate with heavy-duty wide channel supports.
Easy Installation: Top access for leveling feet and service support.
Legal for Trade: NTEP certified with excellent accuracy.
3-Year Parts Warranty: Assurance of quality and reliability.

Specifications:

Capacity: 1250 kg x 0.2 kg / 2500 lb x 0.5 lb; 2500 kg x 0.5 kg / 5000 lb x 1 lb; 5000 kg x 1 kg / 10,000 lb x 2 lb
Platform Dimensions: 914 mm x 914 mm (36" x 36"), 1219 mm x 1219 mm (48" x 48"), 1524 mm x 1524 mm (59" x 59")
Height Dimension: Min 102 mm / Max 118 mm (4.0" - 4.6")
Finish: Powder coat paint
Load Cells: Four alloy steel potted load cells, NTEP, IP 65 rated
Power: AC adapter included or external 12Vdc supply
Operating Temperature: -10° C to 40° C / 14° F to 104° F
