Brecknell 816965005406 Scale

Part Number: 816965005406
Model: DSB Floor
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$1,380.00

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Maximum Weight Capacity (Imperial)
5000 lb
Maximum Weight Capacity (SI)
2500 kg
Weight Increment (Imperial)
1 lb
Weight Increment (SI)
500 g

Product Description:

  1500 mm / 59", 2500 kg x 0.5 kg / 5000 lb x 1 lb (actual dimensions 59'''' x 59")
Explore all Brecknell DSB Floor Scales
Add to Quote
Brecknell 816965005406 Scale
Brecknell 816965005406 Scale
Brecknell 816965005406 Scale
Brecknell 816965005406 Scale Brecknell 816965005406 Scale Brecknell 816965005406 Scale
Full specifications (PDF)

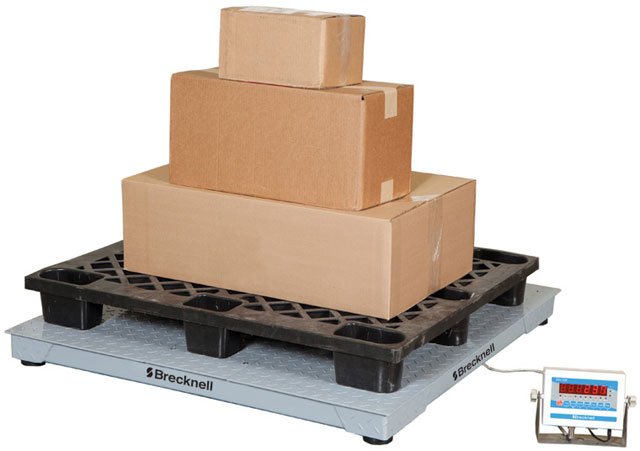

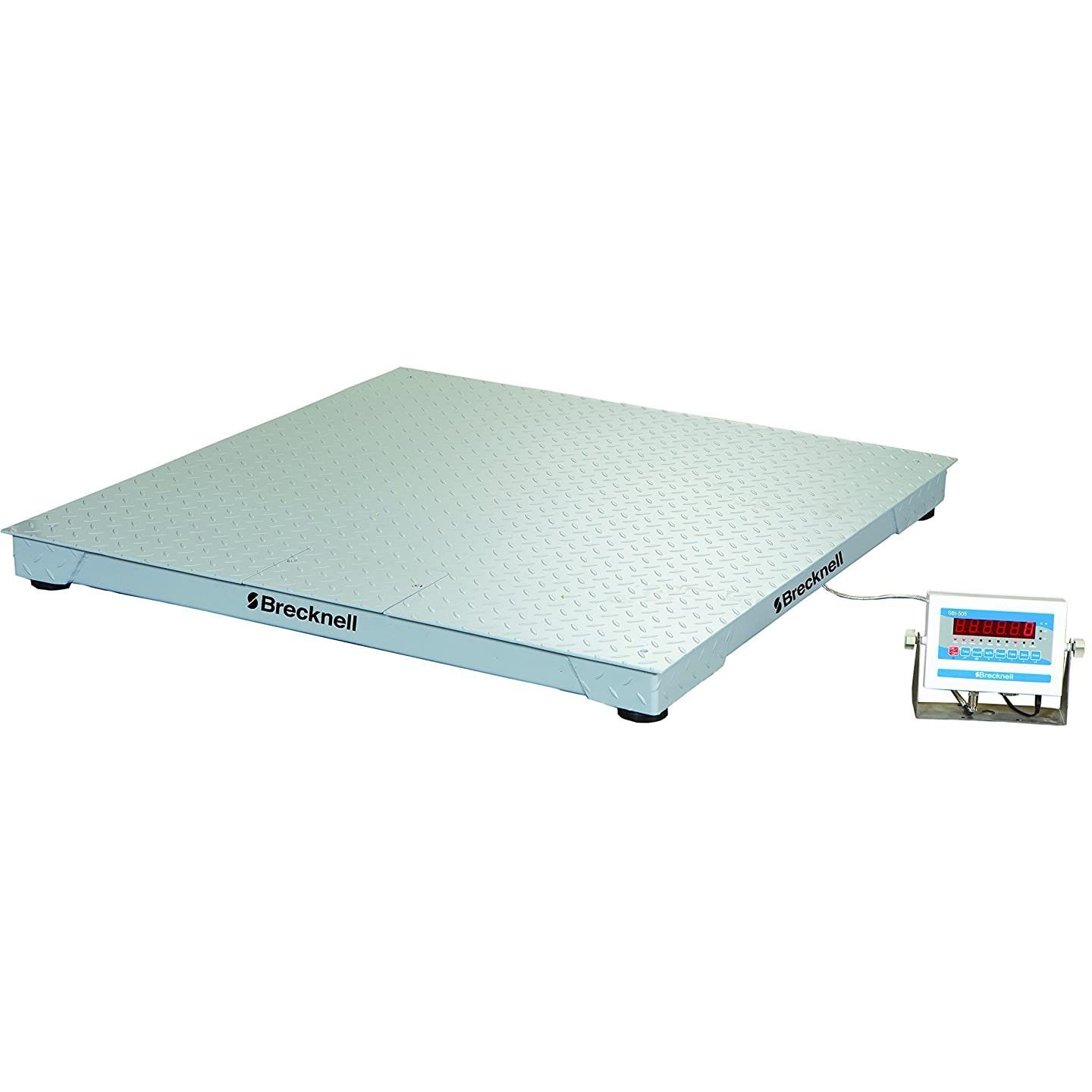

Brecknell DSB Floor Scale Model Overview

The DSB Series Floor Scale Systems offer reliable and robust weighing solutions for various applications including shipping, counting, and check weighing. With a capacity of up to 5000 lb (2500 kg) and precise increments, these scales are ideal for legal trade settings, thanks to their NTEP certification. Built with a sturdy design featuring a thick safety tread top plate and heavy-duty supports, the DSB Series ensures durability in demanding environments. The versatile indicator provides essential functionalities, and the scale can be powered through an included AC adapter or a customer-supplied 12Vdc source, making it exceptionally convenient for any user.


Key features:
  • Versatile Indicator: Supports shipping, and totalizing functions.
  • Rugged Construction: Thick safety tread plate with heavy-duty wide channel supports.
  • Easy Installation: Top access for leveling feet and service support.
  • Legal for Trade: NTEP certified with excellent accuracy.
  • 3-Year Parts Warranty: Assurance of quality and reliability.

Specifications:
  • Capacity: 1250 kg x 0.2 kg / 2500 lb x 0.5 lb; 2500 kg x 0.5 kg / 5000 lb x 1 lb; 5000 kg x 1 kg / 10,000 lb x 2 lb
  • Platform Dimensions: 914 mm x 914 mm (36" x 36"), 1219 mm x 1219 mm (48" x 48"), 1524 mm x 1524 mm (59" x 59")
  • Height Dimension: Min 102 mm / Max 118 mm (4.0" - 4.6")
  • Finish: Powder coat paint
  • Load Cells: Four alloy steel potted load cells, NTEP, IP 65 rated
  • Power: AC adapter included or external 12Vdc supply
  • Operating Temperature: -10° C to 40° C / 14° F to 104° F
Brecknell 816965005406 Scale Overview

The Brecknell DSB platform system meets the demand for a quality scale at a market price that is competitive with all platform providers.

Full specifications (PDF)
Technical Information
Maximum Weight Capacity (Imperial):
5000 lb
Maximum Weight Capacity (SI):
2500 kg
Weight Increment (Imperial):
1 lb
Weight Increment (SI):
500 g
Measurement Type:
  • Kilogram
  • Pound
Application/Usage:
  • Shipping
  • Warehouse
  • Industrial
  • General Purpose
Features:
  • Counting
  • Heavy Duty
  • Overload Protection
Power Description
Input Voltage:
12 V DC
Power Source:
  • AC Adapter
  • Battery
Physical Characteristics
Product Material:
Alloy Steel
Material Details:
  • Mild Steel Scale
Miscellaneous
Package Contents:
  • DSB6060-05 Digital Floor Scale
  • AC Adapter
Certifications & Standards:
  • CE
  • NTEP CC #11-081
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0816965005406
UPC: 816965005406
EAN: 0816965005406
UNSPSC: 41111509
