Barcodes,Inc.

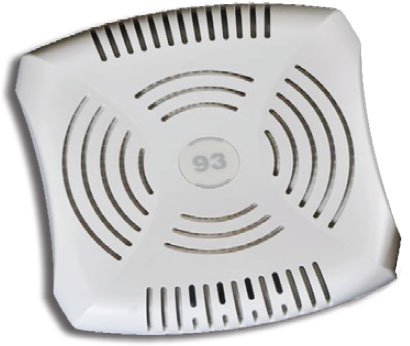

Aruba IAP-93-US Access Point


0.0

(No reviews)

Be the first to

Write a Review
Aruba AP-92-AP-93 - AP-93 Instant Access Point, 802.11a/b/g-n, US Only
For low-density deployments in offices, hospitals, schools and retail stores

The multifunction Aruba AP-93 is an entry-level indoor 802.11n access point designed for low-density deployments in offices, hospitals, schools and retail stores. This compact, high-speed access point delivers wire-like performance at data rates up to 300 Mbps. The AP-93 features a single 2x2 MIMO dual-band 2.4-GHz/5-GHz radio with internal antennas, is built to provide years of trouble-free operation and is backed by a limited lifetime warranty.

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.40 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Antenna Gain:
    • 2.5 dBi
    • 5.8 dBi
  • Antenna Type: Omnidirectional Antenna
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.48 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Features: MIMO Technology
  • Wireless Security: IEEE 802.1x

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Aruba Networks
  • Manufacturer: Aruba Networks, Inc
  • Product Model: IAP-93
  • Product Name: Instant IAP-93 Wireless Access Point
  • Product Line: Instant

Physical Characteristics

  • Height: 5.1"
  • Width: 4.7"
  • Depth: 1.4"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 9.17 oz

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Certifications & Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3af
    • FCC/Industry of Canada
    • CE Marked
    • R&TTE Directive 1995/5/EC 72/23/EEC
    • EN 300 328
    • EN 301 489
    • EN 301 893
    • UL/IEC/EN 60950
    • CB Scheme Safety, cTUVus
    • Japan MIC/VCCI
    • Korea KCC
    • Brazil ANATEL
    • Mexico NOM/COFETEL
    • China SRRC/CCC
    • UL2043 Compliant

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Warranty

  • Limited Warranty: Lifetime

Management & Protocols

  • Management: Adaptive Radio Management (ARM)

Full specifications (PDF)

Full specifications (PDF)

Brand Aruba
Model AP-93
Wireless Type 802.11a/b/g/n


Customer Review Summary

Recommended Accessories for Model: Aruba AP-93 Access Point
Protect Your Product

The Aruba IAP-93-US is also known as ARU-IAP-93-US or IAP93US .
