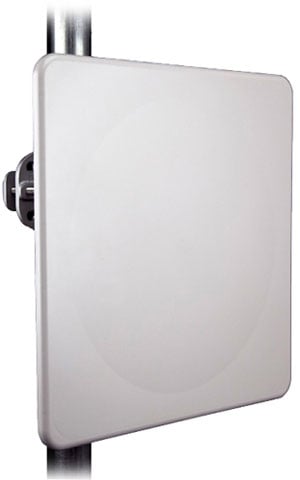

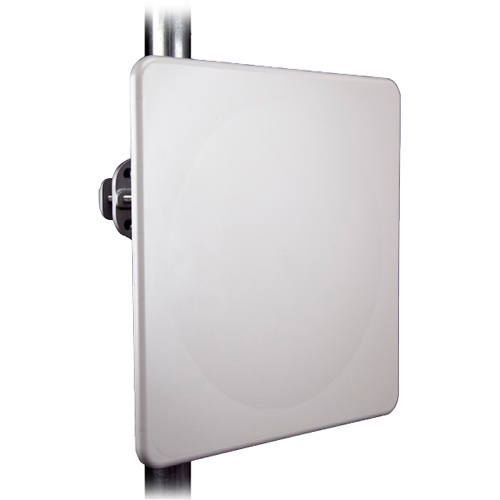

Aruba AP-ANT-93 Wireless Antenna

The Aruba AP-ANT-93 Wireless Antenna has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Aruba Antennas - Aruba AP-ANT-93 MIMO Antenna - Range - SHF5 GHz - 14 dBi - Wireless Data Network, OutdoorPole/Wall - Directional
  • With its noise resistant design, this antenna receives signals from greater distances
  • Provides gain of up to 14 dBi
  • Designed for wireless data network
  • Can be mounted using either a pole mount or wall mount
Read More

Need a different version? See all Aruba Antennas Accessories

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Aruba AP-ANT-93 Wireless Antenna
Aruba AP-ANT-93 Wireless Antenna Aruba AP-ANT-93 Wireless Antenna
Aruba AP-ANT-93 Wireless Antenna
Aruba AP-ANT-93 Wireless Antenna
Aruba Antennas Accessory Model Overview
Aruba antenna options.
Aruba AP-ANT-93 Wireless Antenna Overview

AP-ANT-93 is a 3-element antenna for use in 802.11n MIMO mesh link applications. The antenna integrates 3 differently polarized elements in a single antenna radome.

Technical Information
Directivity:
Directional
Frequency Band Type:
SHF
Operating Frequency Range:
5 GHz
Antenna Gain:
14 dBi
Impedance:
50 Ohm
Polarization:
  • Dual Slant
  • Vertical
Survival Wind Speed:
2187.23 in/s
Features:
  • MIMO Technology
  • UV Protected
  • Weather Proof
Interfaces/Ports
Number of Connectors:
3
Connector Type:
N-Type
USB:
No
Physical Characteristics
Height:
12.01"
Width:
12.01"
Depth:
0.59"
Form Factor:
Pole/Wall
Weight (Approximate):
3.31 lb
Miscellaneous
Application/Usage:
  • Wireless Data Network
  • Outdoor
Package Contents:
  • AP-ANT-93 MIMO Antenna
  • Azimuth and Elevation Adjustable Mount Kit
Certifications & Standards:
  • IEEE 802.11n
  • IP67
  • IEC 60529
Item Numbers
UNSPSC: 43221706
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Aruba AP-ANT-93 Wireless Antenna is also known as ARU-AP-ANT-93
